Epoxide Glassfiber Insulation Mica Tape

Prod Model:	MJ-5461
Temperature:	High Temperature Over 400°c
Samples:	Free Samples Are Welcome
Delivery:	7-10 Working Days
Application:	Generator
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Material:	Mica
Thermal Rating:	200 200
Maximum Voltage:	10KV~20KV
Brand:	Mj

Product Description

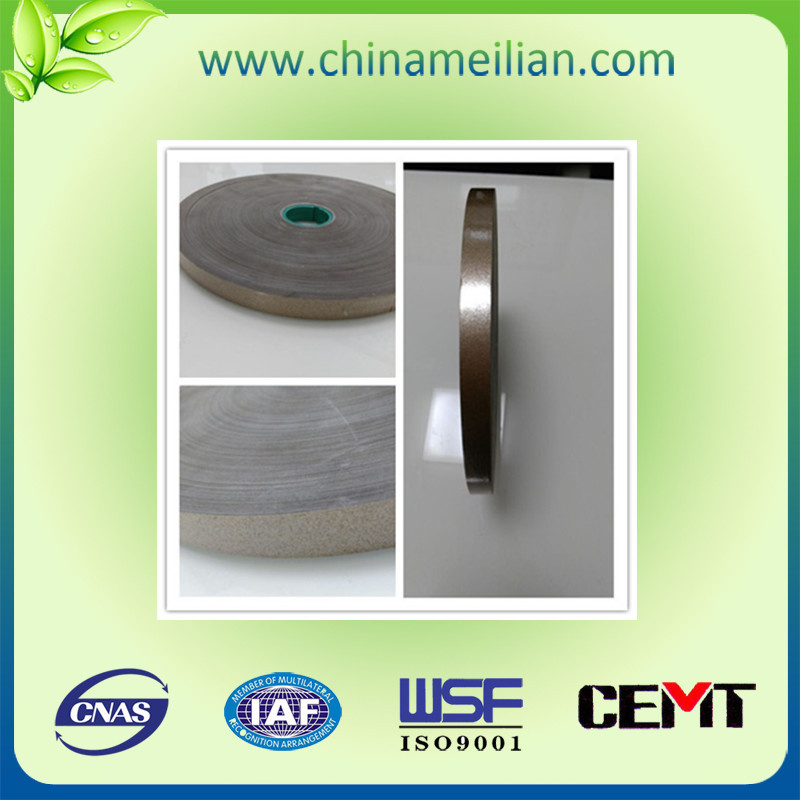

MJ-5461 epoxide glass mica tape
Feature:
Good dielectrical and mechanical property
Good heat resistance
Room temperature the material is flexible
Less thickness tolerance
Application:
Suitable for high-voltage and medium-sized motor coil insulation. Excellent mechanical properties, high electrical breakdown strength, dielectric loss and other characteristics, in Dongfang Electric, Harbin Electric, Nanjing and other large turbine generators. Used as the insulation of motors which are wrapped by the vacuum pressure impregnation.

(1) Can you give me a discount price?
It is depending on the volume. The larger the volume is, the more discount you can enjoy.
(2) How can I get a sample?
Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL, FEDEX, EMS, UPS courier account number to us. For bigger sizes, it depends.
(3) How can you deal with quality issues that customer feedback after receiving the goods?
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.

Specification sheet:

MJ-5641
ITEM	Mica tape
Item No.	MJ-546		Date			2016/12/25
NO.	TEST ITEM		UNIT	VALUE		TEST VALUE
1	THICKNESS		mm	0.14±0.02		0.159
2	WIDTH		mm	10±1		10
3	MICA CONTENT		%	≥55		67.9
4	ADHESIVE CONTENT		%	5-15		10.5
5	VOLATILE MATTER CONTENT		%	≤1.0		0.3
6	TENSILE STRENGTH		N/cm	≥80		104
7	DIELECTRIC STRENGTH		MV/m	≥10		14
8	1000ºC×90min	INSULATION RESISTANCE	MΩ	≥0.4		0.57
		VOLTAGE	1KV/1MIN	GOOD		GOOD
