| Prod Model: |
FLN36-12D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
12kv |
| Rated Frequency: |
50Hz |
| Rated Current: |
630A |
| Customized Design: |
Yes |
| Rated Short-Circuit Duration: |
4s |
| Mechanical Life: |
> 10000 Times |
| Type: |
High-voltage |
| Structure: |
Three-column Disconnector |
| Installation: |
Indoor High-voltage |
| Series: |
Three |
| Switching Mode: |
Single Throw-in |
| Operation: |
Electric, Manual Type |
| Certification: |
CCC |
| Brand: |
People |
Product Description
Application

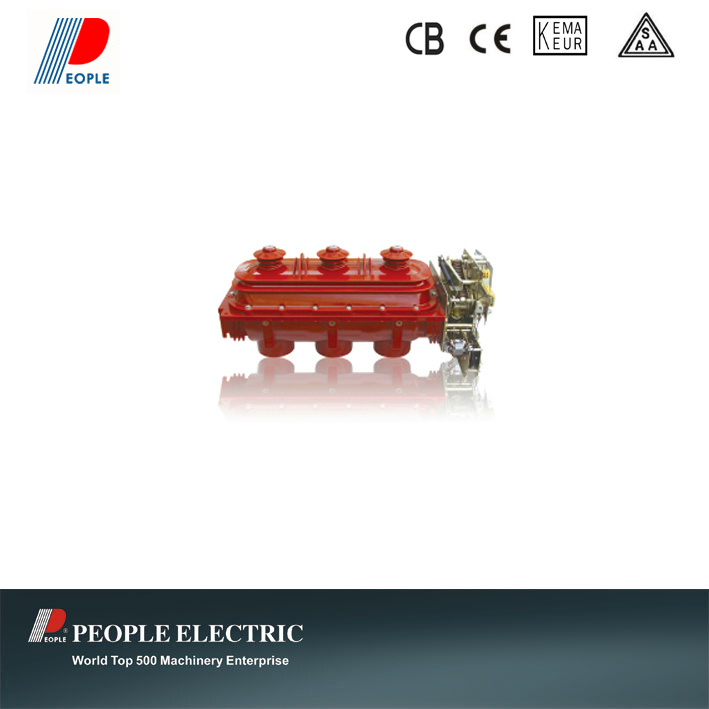

FLN36-12D series high voltage AC indoor load switch is applied in the three-phase, AC50Hz, rated voltage up to12KV, rated current 630A electric-supplying network. Mainly applied in three-phase RMU net pr ending electric-supply city distribution station and industrial electrical equipments, with load-control and short-circuit protection.
The load switch integrates breaking, closing earthing as a multifunction switching device, in a whole sealed, epoxide-resin reinforced structure housing with filling 0.05MPa SF6 gas inside.
It's the main switching component for RMU switchgear. Reliable, free-maintain.
Can run safely over 20 years in normal.
Surrounding
Altitude: below 3000m
Air temperature maximum is +40ºC, minimum is -30ºC.
Relative temperature: diary average ≤95%, monthly average ≤90%
No frequent shrink shock.
Feature
1.SF6 gas for arc blow-out, no explosive danger, no need to inspect
2. Load switch adopts double fractures, rotatablel moving contacts structure. 3 running situations: breaking, closing, grounding.
3. Component parts all adopt stainless steel material, bottom bracket adopts stainless steel material or carbon steel material of hot-galvanized with UV protection coating To ensure device normally run in outdoor environment.
4. Strong breaking capacity, safety, reliable, long electrical life, frequent operation.
5. Small volume, light weight, free-maintain, safe & convenient for operation
Specification
| Rated Voltage | 12kV |
| Rated frequency | 50Hz |
| Rated current | 630A |
| Rated peak withstand current | 50kA |
| Rated short-time withstand current(4s) | 20kA |
| Rated closing current | 50kA |
| Rated active-power load breaking current | 630A |
| Rated closed-loop breaking current | 630A |
| Rated cable charging breaking current | 10A |
| Power frequency withstand voltage(1min) | to earth: 42kV; fracture:48kV |
| Lightning impluse withstand voltage | between phases, to earth:75kV; fracture: 85kV |
| SF6 gas relative pressure(20ºC) | ≤0.04MPa |
| Rated operaion voltage(electrc) | AC/DC 220V |
| Shunt release rated voltage | AC/DC 220V |
| Average breaking speed | 3.5±1.5m/s |
| Average making speed | 3.5±1.5m/s |
| Three phases CO synchronization | ≤3ms |
| Main circle resistance | ≤120μΩ |
| Manual operation Max moment | ≤160N.m |
| core clearance between phases | 210±0.5mm |
Packing and shipping-- Wooden box for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
Our Service-- We have our own factory, professional manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Warmly welcome to visit our factory. Welcome customer or your agent to inspect before order or lading.
