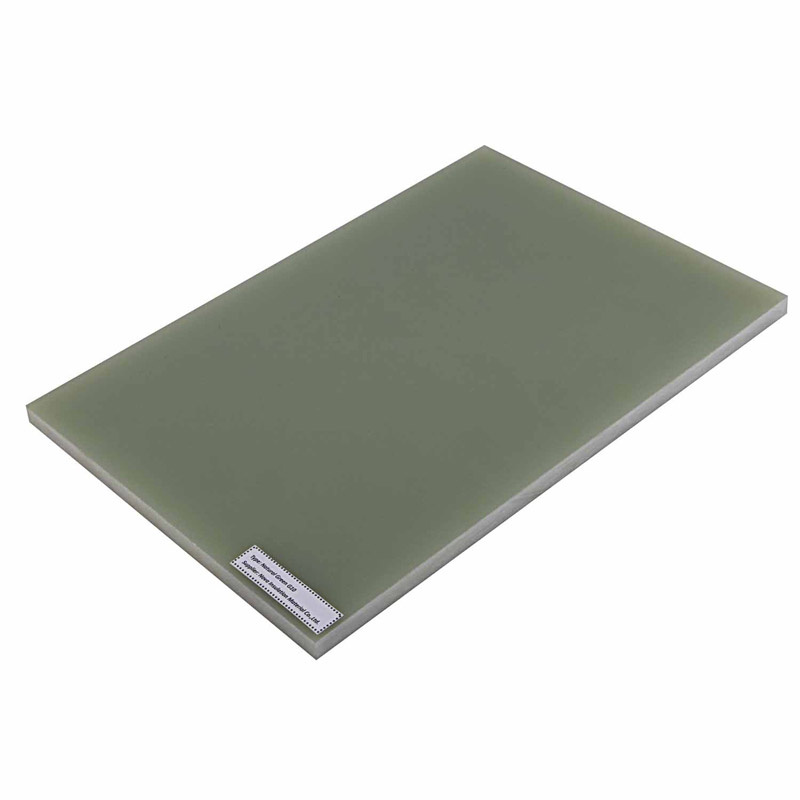

Epoxy Fabric Laminated for Electrical Insulation (G10/FR4)

Name: Epoxy Fabric Laminated for Electrical Insulation (G10/FR4)
Brand: all-electronics-online.com
SKU: 774848115
Availability: InStock
Rating: 4.6 (107 reviews)

Price:	US $ 5.5Kilogram
Trade Terms:	FOB,CFR,CIF
Min Order:	500Kilogram
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	G10/FR4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheet Size:	1020 X 1220mm; 1220*2440mm
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	B 130
Maximum Voltage:	20KV~100KV
Certification:	RoHS
Color:	Natural Green
Brand:	Nova

Product Description

Epoxy Glass Fabric Laminated sheet

Dectription:

G10/FR4 Epoxy glass fabric laminated sheet is composed of alkali-free E-glass fabric impregnated with epoxy resins binder by processing under heat and pressure. It has high mechanical strength, good electric strength properties, and dielectric loss properties under both dry and humid conditions.

Applications:
Widely applied in transformers, electric motors, cabinets, control boxes, electric switches, terminal boards, PC boards and washers,etc.
.

Advantages:
*High mechanical & electrical strength
*Excellent rigidity & dimensional stability
*Good dielectric properties
*Low water absorption
*Flame resistance (Type: FR-4)
*Tighter thickness tolerance
*Flat and straight panel
*Smooth and clean surface.
*Easy to machine
*Temperature Index: 135 Degree Celsius

Specifications:
1) Grade: G10/FR4
2) Color: Natural Green; Yellow; Black
3) Thickness range: 0.1mm~200mm
4) Sheet size: 915*1220mm; 1020*1220mm;
1020*2040mm; 1220*2440mm;
5)Min. Order Quantity: 500 kgs in a lot

NEMA Grade: G-10, FR-4
(IEC Grade: EPGC201, EPGC202)
(DIN7735 Grade: Hgw2372, Hgw2372.1)
(ISO1642 Grade: EPGC1, EPGC2)

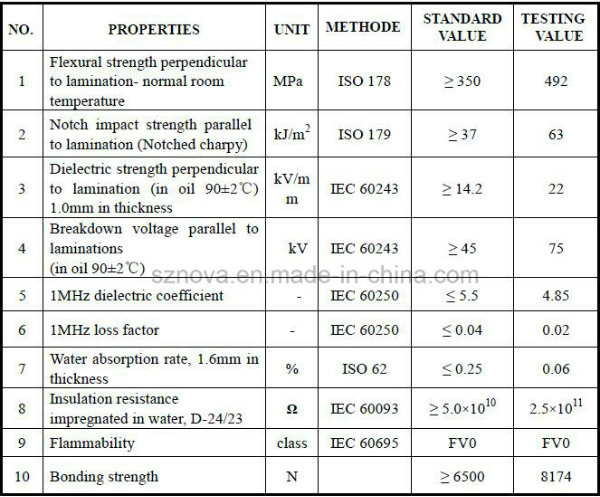

Technical Data sheet - G10/Fr4

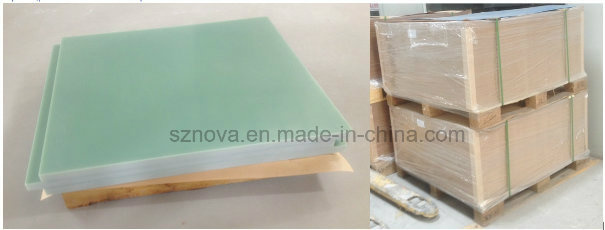

Packaging & Shipping

Pallet,wooden boxes or according to customer requirements
Shipment By Express Such as Fedex,DHL,TNT and etc,Would take 3-5 days
Shipment By Air would take 5-7 Days
Shipment By Ocean(Sea) would take 18-30 Days

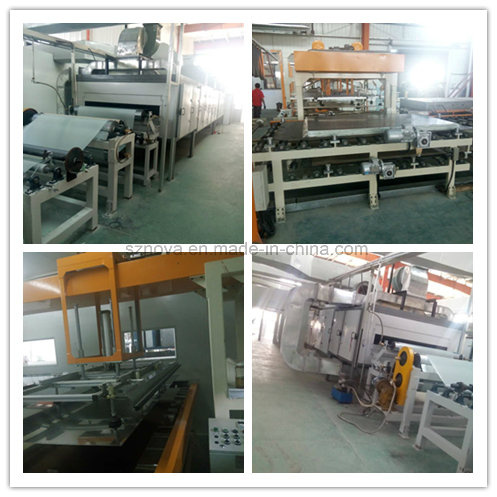

Workshop of Factory

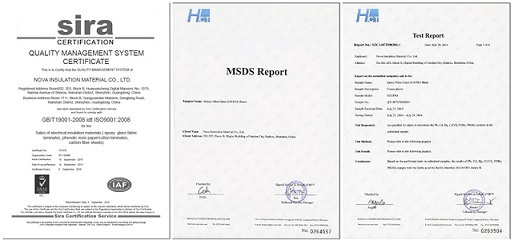

Certificate Show

Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
