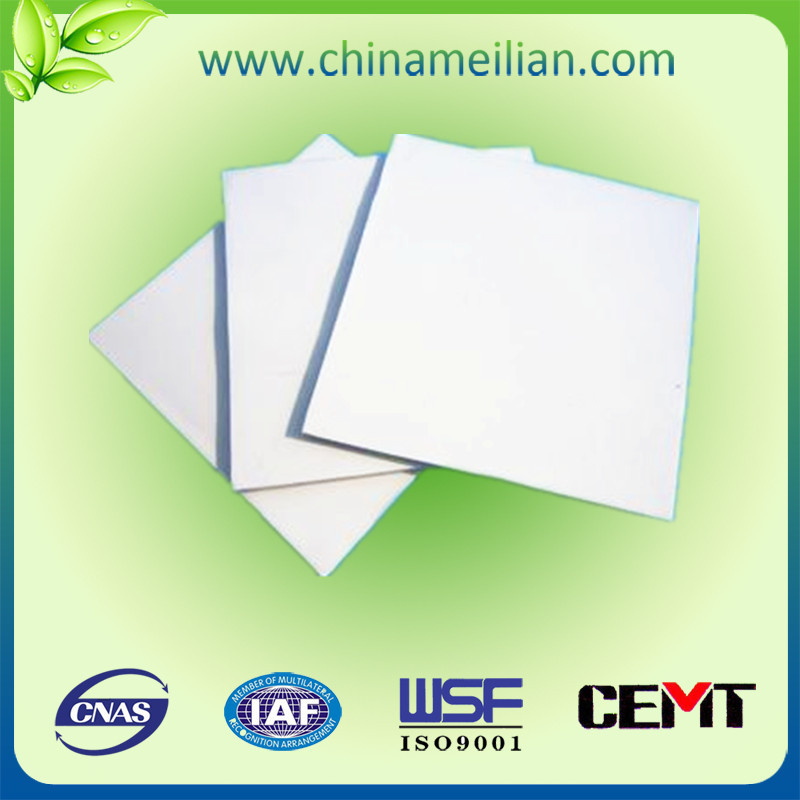

Epoxy Glass Boards G7 Silicone Laminated SGS Certification

Name: Epoxy Glass Boards G7 Silicone Laminated SGS Certification
Brand: all-electronics-online.com
SKU: 743175275
Availability: InStock
Rating: 4.3 (58 reviews)

Price:	US $ 6-7kg
Trade Terms:	FOB,CFR,CIF
Min Order:	1kg
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MJ-G7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Density:	More Than 1.9g/cm3
Formation Methods:	High Temperature and High Pressure
Delivery:	7-10 Working Days
Appliction:	for Motor & Generator
Samples:	Free Samples Are Welcome
Tensile Strength:	More Than120 MPa
Customizable:	Yes
MOQ:	1 Piece
Application:	Generator
Type:	Insulation Sheet
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	H 180
Maximum Voltage:	>100KV
Brand:	Mj

Product Description

All Products Show Feature: Excellent mechanical property Heat resistance property Excelletn magnetic permeability Energy-saving & Environmental protection Application: Motor and generator groove strip/slot wedge Reduce the motor loss, temperature rising, noise and etc Improve the motor efficiency Ideal energy-saving products Technical Parameters:

Basic information
Product name	G7 Silicone Fiberglass Laminated Sheet
Brand	MJ-G7
Material	Fiberglass cloth with silicone resin
Grade	H
Feature
High heat resistant 180 °C Good dielectric character and mechnical properties. Excellent mechanical and electrical properties. Less thickness tolerance
Application
can be used for the insulating slots, Windings, Gaskets, Junction board of the dry type transformer, railway transformer, electrical equipment, traction motor etc.
Technical Performance
Specification	975x1975 mm
Thickness	0.3-80 mm
Flexural strength perpendicular to lamination	≥ 280 Mpa
Notch Impact strength parallel to lamination (charpy)	≥ 50 KJ/m 2
Dielectric strength perpendicular to lamination (in transformer oil 90±2°C)	≥ 10 KV
Dilectric break down perpendicular to laminations(in transformer oil, 90 °C, less than 2mm in thickness)	≥ 9 KV
Insulation resistance parallel to laminations(after impregnated in water)	≥ 1.0 X 10 8 Ω
loss factor(1 MHz,after impregnated in water)	≤ 0.05
Reference Standard	GB/T1303.1-1998

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
