Epoxy Glass Cloth Board (FR-4)

Name: Epoxy Glass Cloth Board (FR-4)
Brand: all-electronics-online.com
SKU: 829844905
Availability: InStock
Rating: 4.6 (149 reviews)

Price:	US $ 4Kilogram
Min Order:	1000Kilogram
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	G10-1
Sheet Size:	10201220mm; 12202040mm; 1220*2440mm;
Thickness Range:	0.1mm~200mm
Min. Order Quantity:	500 Kgs in a Lot
Packaging Details:	500-1500kgs Per Pallet or as Required
Lead Time:	3-10 Days After Order Confirmed
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	B 130
Maximum Voltage:	20KV~100KV
Certification:	RoHS
Color:	Natural Green
Brand:	Nova

Product Description

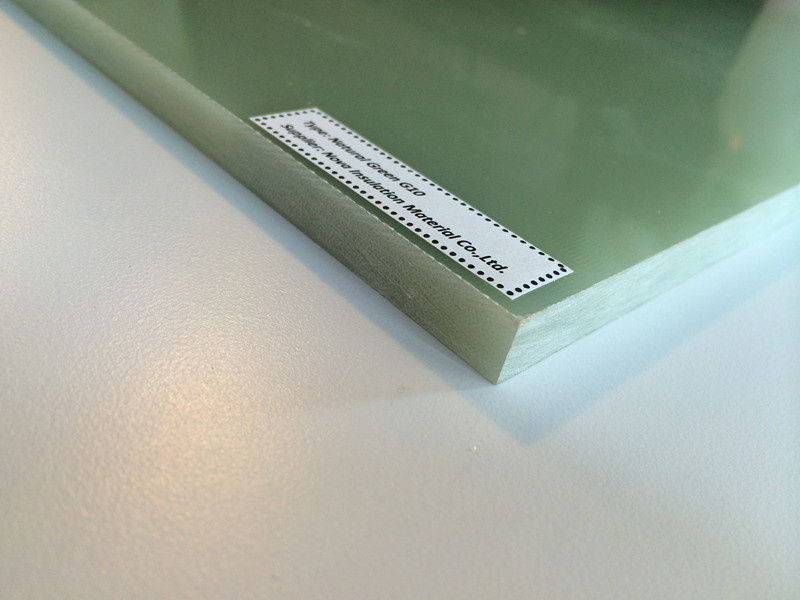

G10/FR4 is composed of electrical alkali-free glass woven fabric base impregnated with an epoxy resin binder under pressure and heat.

Applications:
Widely used as insulating structural parts in electrical & mechanical equipments, such as generators, motors, transformers, terminal boards, PC boards, washers, and many others.

Advantages:
*High mechanical & electrical strength
*Excellent rigidity & dimensional stability
*Good dielectric properties
*Low water absorption
*Flame resistance (Type: FR-4)
*Tighter thickness tolerance
*Flat and straight panel
*Smooth and clean surface.
*Easy to machine
*Temperature Index: 135 Degree Celsius

Specifications:
1) Grade: G10/FR4
2) Color: Natural Green; Yellow; Black
3) Thickness range: 0.1mm~200mm
4) Sheet size: 915*1220mm; 1020*1220mm;
1220*2040mm; 1220*2440mm;
5)Min. Order Quantity: 500 kgs in a lot

NEMA Grade: G-10, FR-4
(IEC Grade: EPGC201, EPGC202)
(DIN7735 Grade: Hgw2372, Hgw2372.1)
(ISO1642 Grade: EPGC1, EPGC2)

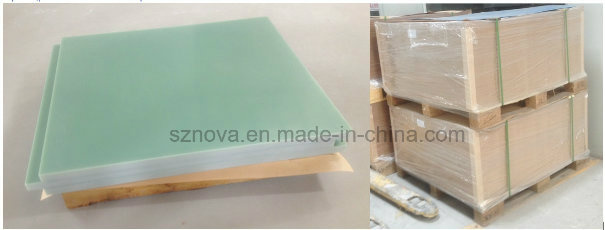

Packaging & Shipping

Pallet,wooden boxes or according to customer requirements
Shipment By Express Such as Fedex,DHL,TNT and etc,Would take 3-5 days
Shipment By Air would take 5-7 Days
Shipment By Ocean(Sea) would take 18-30 Days

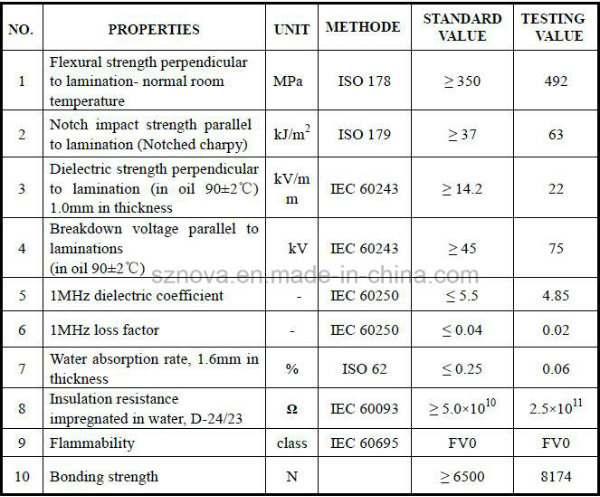

Technical Data sheet - G10/Fr4

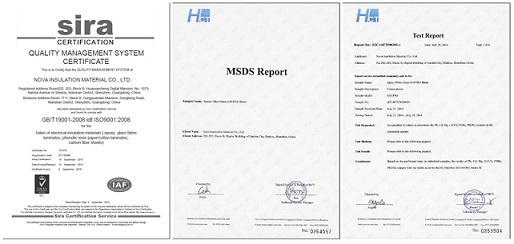

Certificate Show

About Us:

Nova Insulation Maetrial Co.,Ltd. is specialized in manufacture all kinds of Epoxy glass fabric laminated products with over 10 years experience, including G10/FR4, G11/FR5 and so on.

We can serve you not only customize the G10/FR4 Epoxy glass fabric laminated sheet products for you, but also very experienced design concept, strong program management system, well trained employees for carbon fiber making process, sophisticated equipment, and strict quality control schedule which can make us to be the successful manufacturer with high quality products and on time delivery for each of your projects.

We sincerely hope to be your long-term partner to develop new markets together,and create brilliant!

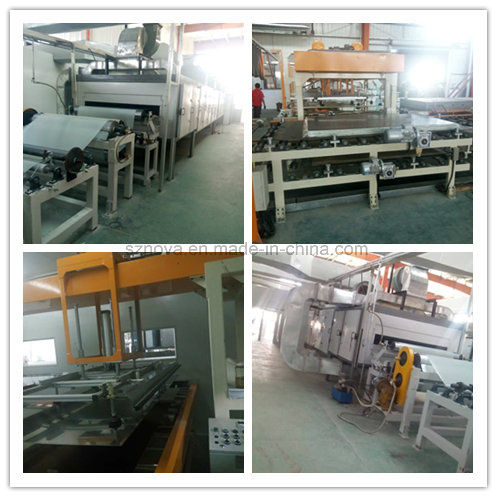

Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
