Epoxy Glass Fabric Laminated Sheets G11 for Insulation Plate

Name: Epoxy Glass Fabric Laminated Sheets G11 for Insulation Plate
Brand: all-electronics-online.com
SKU: 749943895
Availability: InStock
Rating: 4.8 (53 reviews)

Price:	US $ 5.8-6kg
Trade Terms:	FOB,CFR,CIF
Min Order:	500kg
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	g11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Comparative Tracking Index (CTI):	600V
Sheet Size:	10201220mm; 12202040mm
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Material:	Fiberglass
Thermal Rating:	H 180
Maximum Voltage:	20KV~100KV

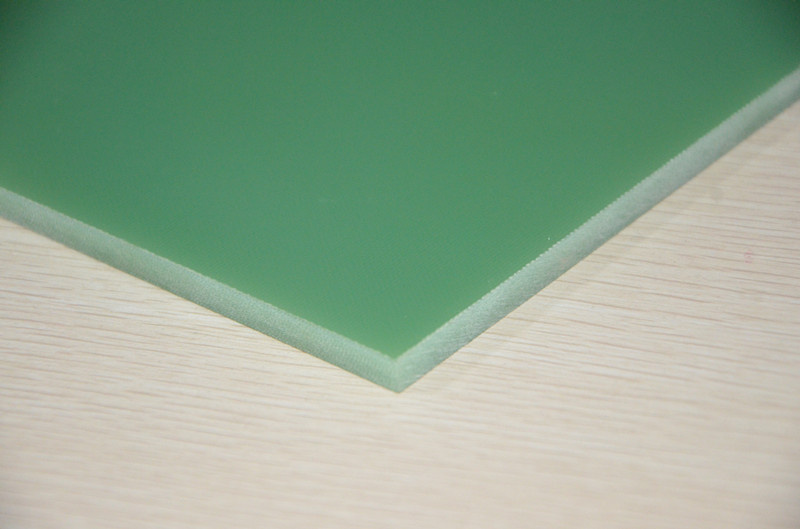

Color:	Green, Yellow
Brand:	Nova

Product Description

Descriptions:

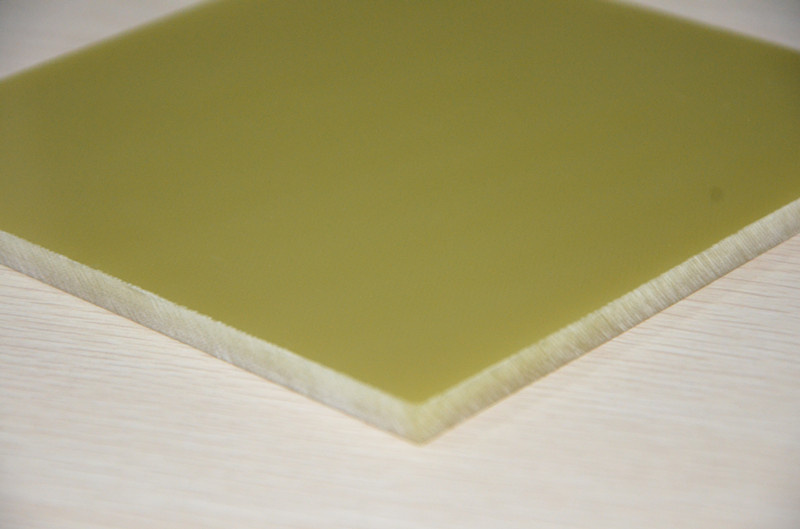

G11 / FR5 Laminate Sheet is a glass fabric reinforcement in a high temperature epoxy resin binder. This grade is similar to G10/FR4 but has a higher operating temperature and superior mechanical properties at elevated temperatures. It maintains good properties at both dry and humid conditions. It certifies to NEMA FR5 and MIL-I-24768/28.

Applications:
G11/FR5 Epoxy Laminated Sheet can be used for a high quality construction material as well as an electrical insualtion material in various machines and equipments, especially i those areas where high mechanical strength and dynamic properties are necessary in operating temperture.

Specifications:
1) Grade: G11
2) Color: Yellowish
3) Thickness range: 0.1mm to 50mm
4) Sheet Size: 1020*1220mm; 1020*2040mm
5) Min. Order Quantity: 1000kgs in a lot

Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
