Epoxy Glass Laminate Sheet 3240

Name: Epoxy Glass Laminate Sheet 3240
Brand: all-electronics-online.com
SKU: 693902512
Availability: InStock
Rating: 4.7 (72 reviews)

Price:	US $ 2200/Ton
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Ton
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3240
Markets:	North America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Application:	Switch Baseplate
Type:	Solid
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Thermal Rating:	B 130
Maximum Voltage:	20KV~100KV
Brand:	Chr

Product Description

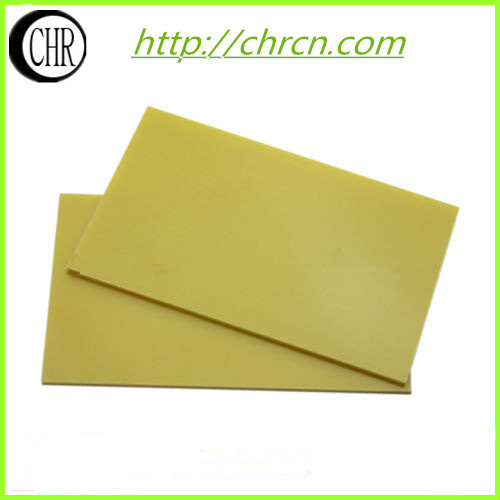

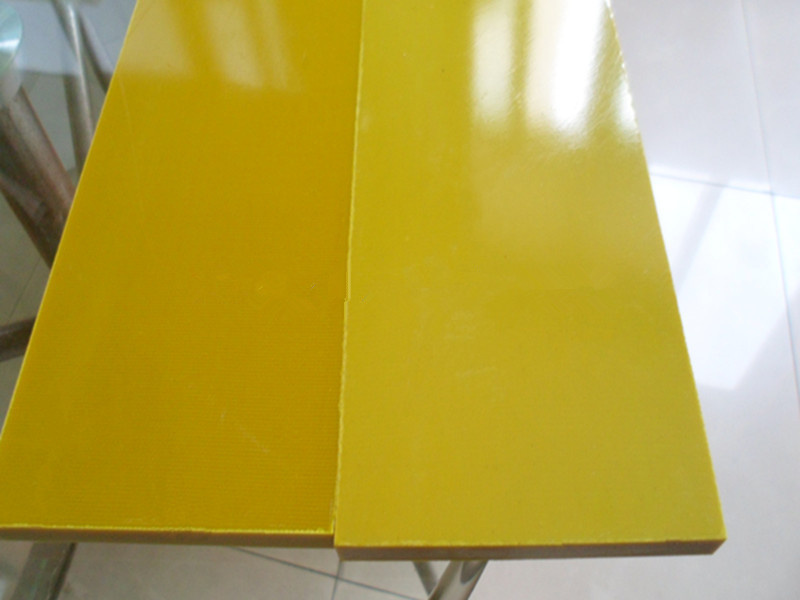

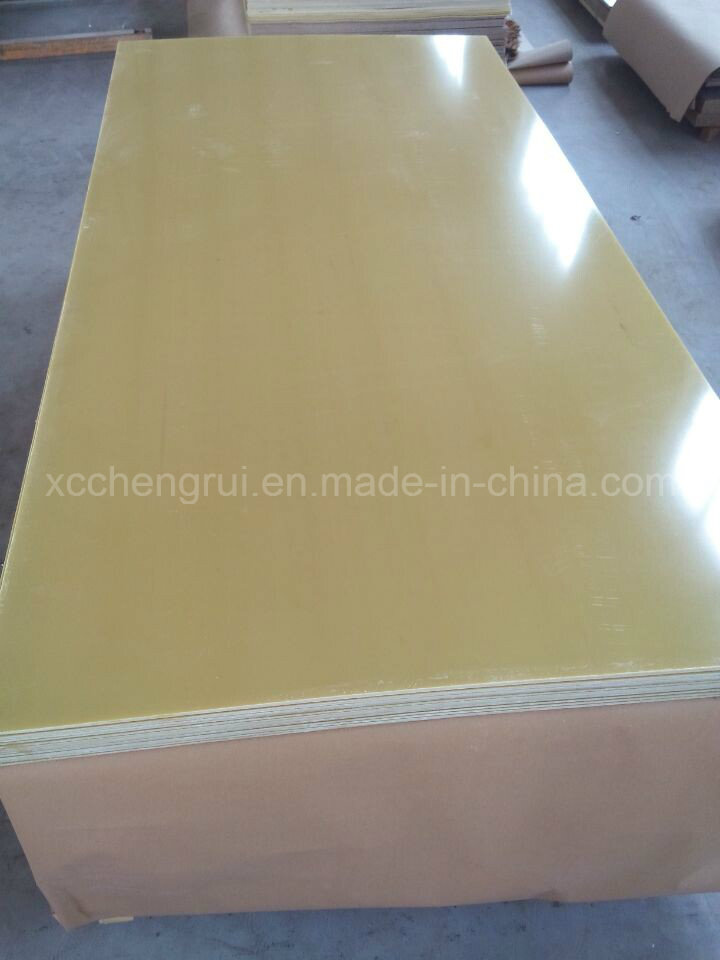

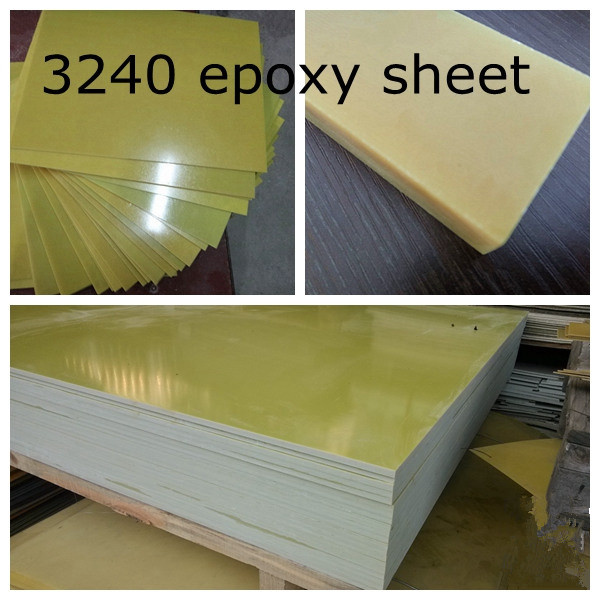

3240 Epoxy glass cloth laminate sheet
Heat-resistance:B CLASS 130C
Material: Alkali-free fiberglass cloth Coating: Epoxy resin
Property: With high mechanical property, stable property under high heat and humidity
Application: It is suitable for insulating structural parts in electrical and other industries
The specification:
Thickness(mm): 0.5-80mm Density: 1.7-1.9g/cm3
Size: 1020X2070mm, 1220X2440mm
Color: Green, yellow
Pacage: Pallet
Storage life---1 year

Tested Item	Unit	standard
Tested Item	Unit	3240	3240A
Vertical layer to bending strength	Mpa	340	340
Apparent bounding elasticity mold	Mpa	24000	24000
Vertical to the compression strength layer	Mpa	350	350
Parallel layers to impact strength	kJ/^2	33	33
Tensile strength	Mpa	300	300
Vertical layer to electrical strength "0.5 mm, (90 ±2 (in ºC oil)	MV/M	16	16
After immersion insulation resistance	∏	5.0x10 8	1.0x10 8
Mechanism of 1mhz below loss factor	-----	0.04	0.04
density	Kv	1.8-20	1.8-2.0
To breakdown voltage parallel layers in 90 ± 2 (ºC oil)	kv	30	30
Water imbibition (1mm)	mg	18	18

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
