Epoxy Glass Resin Laminated Sheet G11/Fr5

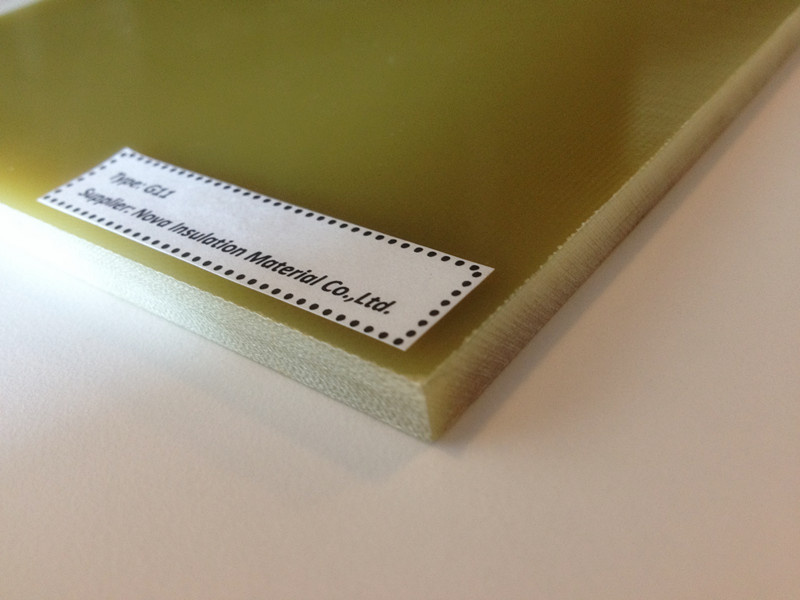

Name: Epoxy Glass Resin Laminated Sheet G11/Fr5
Brand: all-electronics-online.com
SKU: 749677745
Availability: InStock
Rating: 4.8 (91 reviews)

Price:	US $ 1kilograms
Trade Terms:	FOB,CFR,CIF
Min Order:	500kilograms
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	G11/Fr5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheet Size:	10201220mm; 12202040mm
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Material:	Fiberglass
Thermal Rating:	H 180
Maximum Voltage:	10KV~20KV
Color:	Green, Yellow
Brand:	Nova

Product Description

Applications:
High performance G11 for your extremely strict demand. It has Comparative Tracking Index (CTI) 600V, Halogen-free, and Flame-resistance, H-class heat-resistant, widely used in harsh conditions(high humidity, dusty, filthy).

Advantages:
*Temperature Index: 180 Degree Celsius
*Tracking Index (CTI) 600V
*Halogen-free
*Flame-resistance
*H-class heat-resistant

Specifications:
1) Grade: G11
2) Color: Yellowish;
3) Thickness range: 0.1mm~50mm
4) Sheet size: 1020*1220mm; 1020*2040mm;
5) Min. Order Quantity: 1,000 kgs in a lot

Packaging & Shipping

Pallet,wooden boxes or according to customer requirements
Shipment By Express Such as Fedex,DHL,TNT and etc,Would take 3-5 days
Shipment By Air would take 5-7 Days
Shipment By Ocean(Sea) would take 18-30 Days

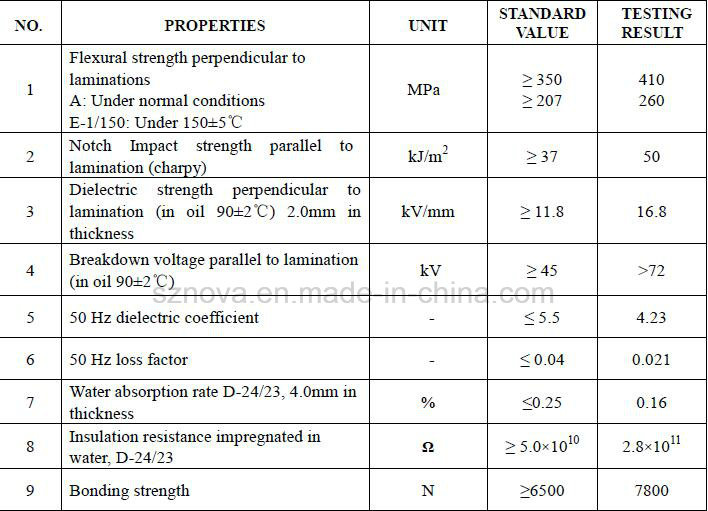

Technical Data sheet - G11

About Us:

Nova Insulation Maetrial Co.,Ltd. is specialized in manufacture all kinds of Epoxy glass fabric laminated products with over 10 years experience, including G10/FR4, G11/FR5 and so on.

We can serve you not only customize the Epoxy Glass Fabric Laminated Sheet G11 (F Class) products for you, but also very experienced design concept, strong program management system, well trained employees for Epoxy Glass Fabric making process, sophisticated equipment, and strict quality control schedule which can make us to be the successful manufacturer with high quality products and on time delivery for each of your projects.

We sincerely hope to be your long-term partner to develop new markets together,and create brilliant!

FAQ
1.Q:Are you factory?
A:We are manufacturer with export license.
2.Q:How about the delivery time?
  A:Usually 7-15days,also depends on quantity.
3.Q:Can I get free sample for check?
  A:Normally small size can be provided for free and customers just need to take charge for express fee.
4.Q:Can you give me a discount price?
  A:It depends on quantity,the larger quantity is,the more discount you can get.

Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
