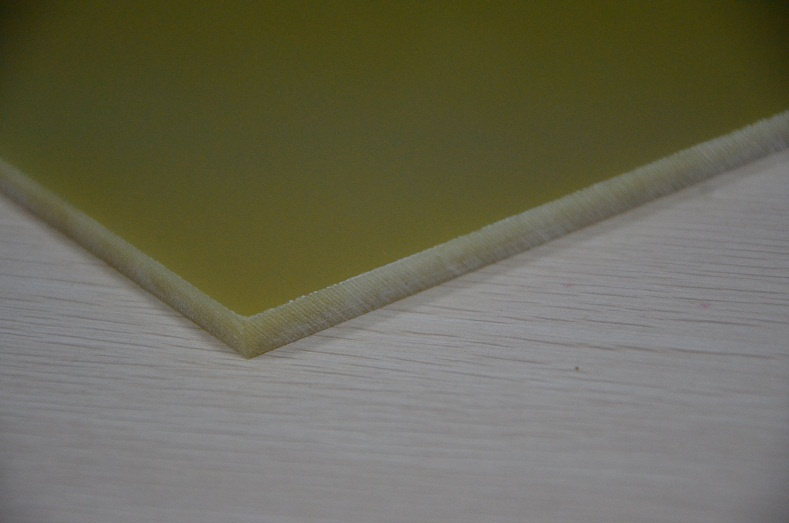

Epoxy Glass Sheet Epgc 308 with 180 Degree

Name: Epoxy Glass Sheet Epgc 308 with 180 Degree
Brand: all-electronics-online.com
SKU: 737985245
Availability: InStock
Rating: 4.8 (30 reviews)

Price:	US $ 5.6-6kilogram
Trade Terms:	FOB,CFR,CIF
Min Order:	250kilogram
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	G11/Fr5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheet Size:	1020*1220mm
Thickness:	0.2 - 200mm
Glass Composition:	H Glass
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	H 180
Maximum Voltage:	20KV~100KV
Certification:	RoHS
Color:	Green
Brand:	Nova

Product Description

Applications:
High performance G11 for your extremely strict demand. It has Comparative Tracking Index (CTI) 600V, Halogen-free, and Flame-resistance, H-class heat-resistant, widely used in harsh conditions(high humidity, dusty, filthy).

Advantages:
*Temperature Index: 180 Degree Celsius
*Tracking Index (CTI) 600V
*Halogen-free
*Flame-resistance
*H-class heat-resistant

Specifications:
1) Grade: G11
2) Color: Yellowish;
3) Thickness range: 0.1mm~50mm
4) Sheet size: 1020*1220mm; 1020*2040mm;
5) Min. Order Quantity: 1, 000 kgs in a lot

High class 180 degree G11

Physical Data

Density ----------------------------------------------- 1.95 g/cm3

Water Absorption -.125" ------------------------- 0.04 %

Temperature Index -------------------------------- 180 °C

Rockwell Hardness -------------------------------- 115 M scale

Bond Strength--------------------------------------- 2000 Lbs

Flexural Strength-LW-A-.125" ------------------ 550 MPa

Flexural Strength-LW-E 1/150 ----------------- 320 MPa

Izod Impact Strength-LW ------------------------ 15 Ft-lbs/in

Izod Impact Strength-CW ------------------------ 10 Ft-lbs/in

Compressive Strength-Flatwise ---------------- 68000 Psi

Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
