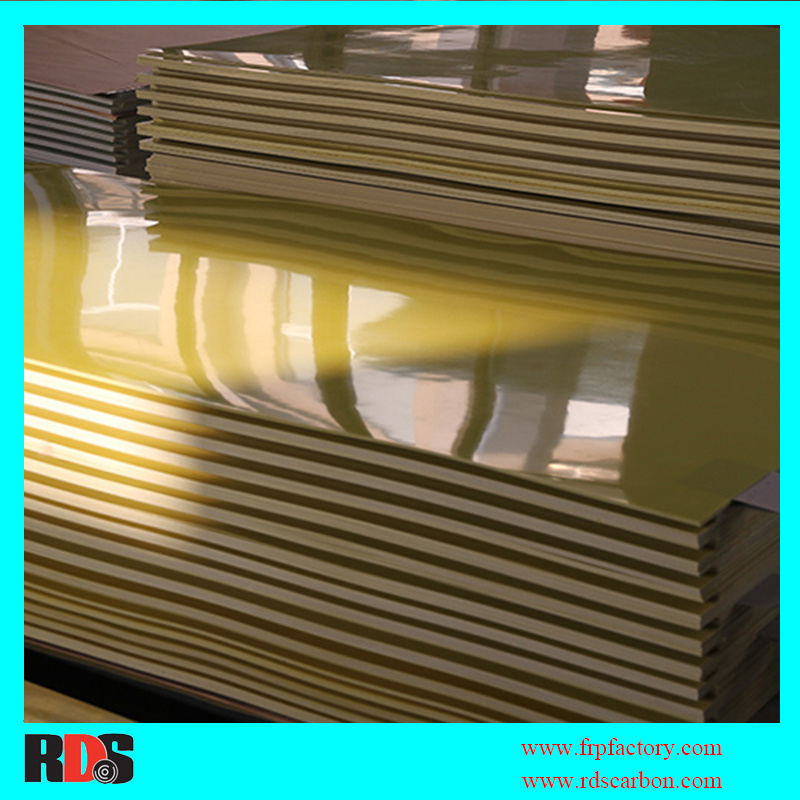

Epoxy Phenolic Glass Fabric Laminate (3240)

Name: Epoxy Phenolic Glass Fabric Laminate (3240)
Brand: all-electronics-online.com
SKU: 670403472
Availability: InStock
Rating: 4.4 (135 reviews)

Price:	Negotiable/Ton
Trade Terms:	others
Min Order:	1/Ton

Contact Supplier

Showroom Product Company Profile

Prod Model:	3240
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Electrical Base, Shell
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Material:	Fiberglass
Thermal Rating:	B 130
Maximum Voltage:	20KV~100KV

Product Description

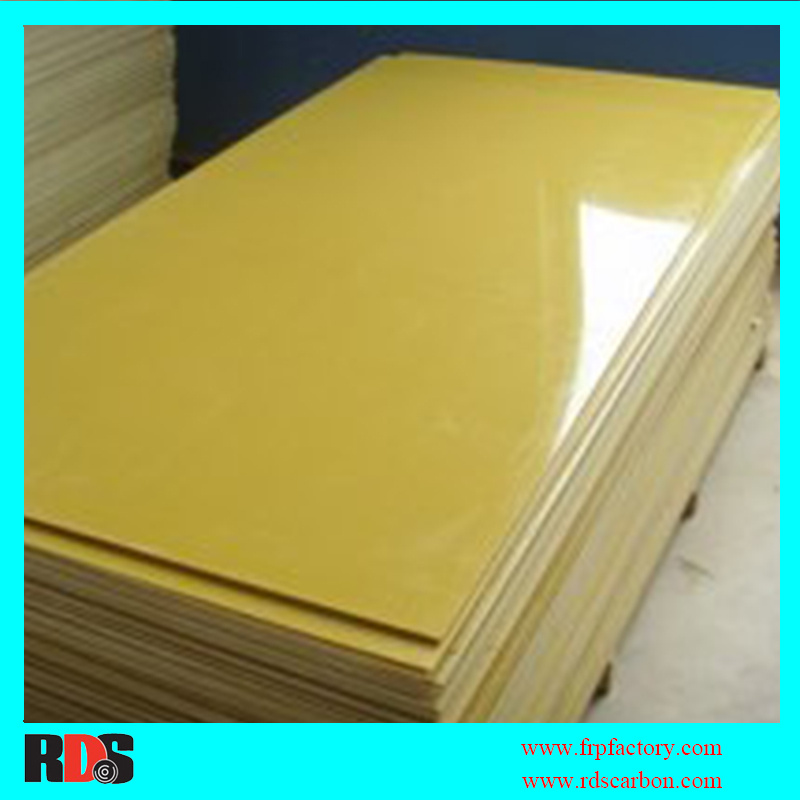

Epoxy phenolic glass fabric laminate 3240 is made of alkali-free E-glass cloth impregnated with epoxy resins and phenolic resins by processing under heat and high pressure. This product having high mechanical and dielectric properties, good heat and humidity resistance, can be used in electrical motors, engines and devices as insulating construction parts in moist cirecumstances and in transformer oil.
Thermal resistance class: B

Properties		Unit	Grade
Properties		Unit	3240
Flexural strength perpendicular to laminations	≥	MPa	350
Flexural strength parallel to laminations	≥	MPa	290
Impact strength parallel to laminations (Charpy)	≥	KJ/m2	50
Insulation resistance after immersion in water (D-24/23)	≥	W	1.0×109
Dielectric strength perpendicular to laminations (in 90±2ºC transformer oil, 3 mm in thickness)	≥	MV/m	17
Breakdown voltage parallel to laminations (in 90±2ºC transformer oil)	≥	KV	30
Dissipation factor (50Hz)	≤	-	0.05
Water absorption (D-24/23, 1.6mm in thickness)	≤	mg	19
Density	-	g/cm3	(1.70-1.90)
Color	-	-	yellow, green, black, red

Beijing Red Sun Composite Material Co., Ltd. is one professional producer for SMC and BMC molding products, insulating rigid laminates, rods and tubes, flexible composites, high thermal resistant products, gasket, fiber glass products, engineering plastics, etc. We also provide the further fabrication for these products and kinds of composite materials. You can get most of what you want from us.

Advanced production line, excellent technology and experienced work team assure we can provide you the products comply with the international standards and different requirements. We assure that you will get the high efficiency feedback and best service from us for those products that we deal with and certainly with the competitive price.

We have won customers from USA, Canada, Germany, Japan, and so on to be our partners, and more and more customers are joining us.

Red Sun Composite always takes the "Mutual Benefit", "Quality First" and "Better Ethics" as principle. Red Sun Composite will be your partner to success.
