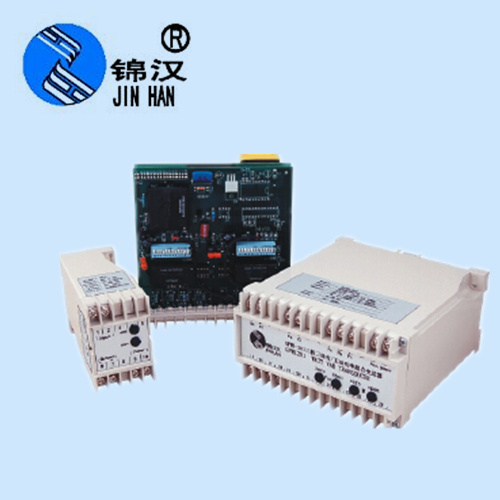

Eppf Single Output High-Reliability Power Factor Transducer

Name: Eppf Single Output High-Reliability Power Factor Transducer
Brand: all-electronics-online.com
SKU: 756865105
Availability: InStock
Rating: 4.7 (124 reviews)

Price:	US $ 394/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	EPPF
Markets:	Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Manufacturers:	Haiyan Jinhan Electronic Technology Co.,Ltd
MOQ:	1 Piece
Export Markets:	Global
Production Process:	Integration
Shell Material:	Beige Plastic-Shell
Dimension:	149.573119
G.W:	About 1kg
Freight:	by Air
Delivery Time:	1 Week
Installation:	35mm DIN Sliding-Way

Product Description

Main functions and Characteristics
Transforms the measured signal to a voltage, after HCNR200 linearity photodiode transforms to DC output which has extremely good linear relations with the measured signal, uses the computer aided designed, the principle is simply, circuitry designed concisely, reliability is highly and installment is conveniently.
Notice
Operating environment should not have the electric dust and gas of corrosive metal and destruction insulation existence, the altitude should less than 2,500 meters.
The Zero and CAL have been adjusted when products left factory. Please don't adjust at will.
Paramerers:

Vn: Input Volatge	Vn	V1 100V 80~120V	V2 220V 180~300V	On: Output
An: Input Current	An	A1 1A 0~1.2A	A2 5A 0~6A	01 0~1mA	02 0~20mA	03 4~20mA	D1 0.5(C)~1~0.5(L) 0~1/2~
				04 0~5mA	05 1~10mA		D2 0.5(C)-1-0.5(L) 0~1/2~
Fn:Input Frequency	Fn	F1 50Hz 45~55Hz	F2 60Hz 55~65Hz
				07 0~1V	08 0~5V	09 0~10V	D3 0.5(C)~1~0.5(L) 0-1/2~
Pn: Auxiliary Power	Pn	P1 AC 100V PD1*	P2 AC 220V PD1*
				010 2~10V	011 1~5V		D4 0.5(C)~1~0.5(L) 0~1/2~

Model type:
EPPF-Vn--An-Fn-Pn-On-Dn

Accuracy:0.5%RO
Customized:Customized
