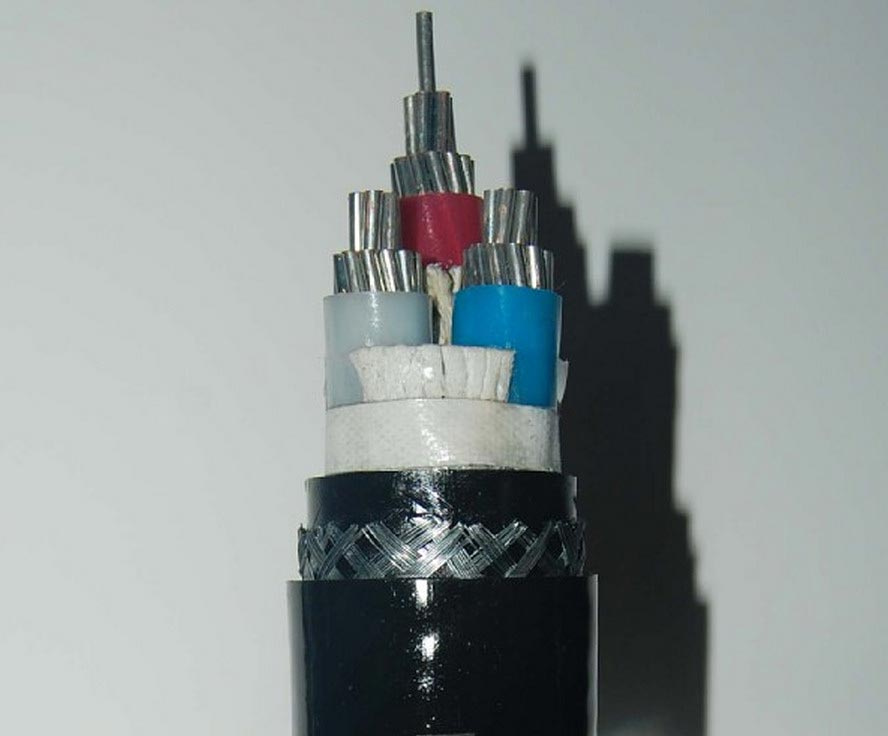

Epr Insualted Shipboard Power Cable
| Price: |
US $ 0.8/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
Tinned Copper Wire Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
Tinner Copper |
| Insulated: |
Epr or XLPE |
| Armored: |
Tinned Copper Wire Braid(Galvanized Steel Wire Bra |
| Outer Sheath: |
PVC/Pcp/Po(Shf1,Shf2) |
| Cores: |
1.2.3.4.4.7.10.12.14.16.19.24.27.30.33.37 |
| Areas: |
0.75mm2-300mm2 |
| Certificate: |
CCS,Lr,ABS,Dnv,BV,Gl,Nk,Kr,Rina,90 |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Certification: |
UL |
| Application: |
The Marine |
| Insulation Material: |
Epr or XLPE |
| Sheath Material: |
PVC/Pcp/Po(Shf1,Shf2) |
| Model: |
Epr or XLPE |
| Brand: |
Rne Da |
Product Description
0.6/1kv EPR/XLPE Insulated Shipboard power cable Rating voltage: 0.6/1KV 1.8/3kV 3.6/6KV 6/10KV 8.7/15KV Specification &standardsIEC60228 IEC60092-350 IEC60092-359IEC60092 351 IEC60332-1 IEC60332-3 Cat.AIEC61034-2 IEC 60754-2 3A Construction:Conductor:tinner copperInsulated:EPR or XLPE FillerTapeInner sheathe:PCP/CSP/PVC/PO(SHF1,SHF2)Armored:tinned copper wire braid(Galvanized steel wire braid)Outer Sheath:PVC/PCP/PO(SHF1,SHF2)Flammability Features:DA:Single cable flame retardantSA:Bunched cable flame retardantSC:Bunched cable flame retardant,halogen-free,low-smoke,low-toxicity Specifications:Cores:1.2.3.4.4.7.10.12.14.16.19.24.27.30.33.37NominalCross-section Areas:0.75mm2,1mm2,1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2,300mm2 Applicant:The marine electrical cable is intended for power,lighting and control system of shipboard and off-shore building,and it is also available to metallurgical chemical works,power planted and mines etc. Certificates:CCS,LR,ABS,DNV,BV,GL,NK,KR,RINA,90 The radius of bend for the installation of marine cables| Cable structure features | Over diameter of cable(D) | Minimum internal bending radius |
| Metal braided armored | Any value | 6D |
| Non-armored | D≤25 | 4D |
| D25 | 6D |
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
