Epr Rubber Adhesive Self Amalgamating Insulation Tape

Name: Epr Rubber Adhesive Self Amalgamating Insulation Tape
Brand: all-electronics-online.com
SKU: 768811375
Availability: InStock
Rating: 4.3 (105 reviews)

Price:	US $ 1.36/Roll
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Roll
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KE30R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Adhesive:	Rubber
Voltage:	Below 380V
Enviroment Temperature:	-10~40 Deg C
Application:	Electrical Base, Shell
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Thermal Rating:	Y 90
Maximum Voltage:	<10KV
Material:	Fibrous
Color:	Black
Brand:	Maxwel

Product Description

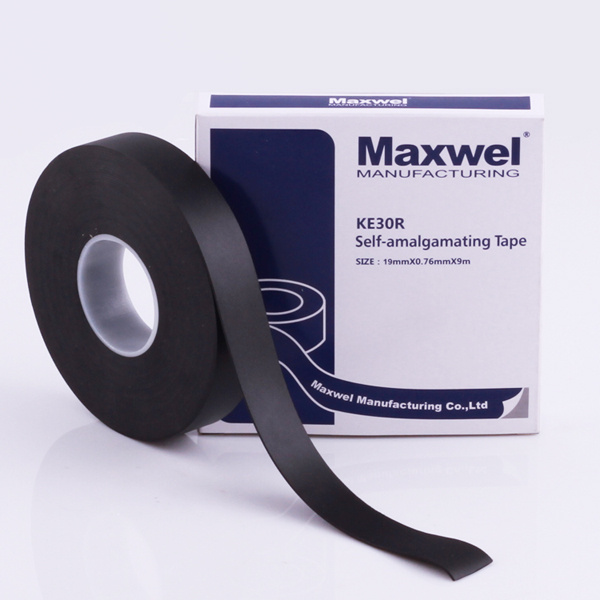

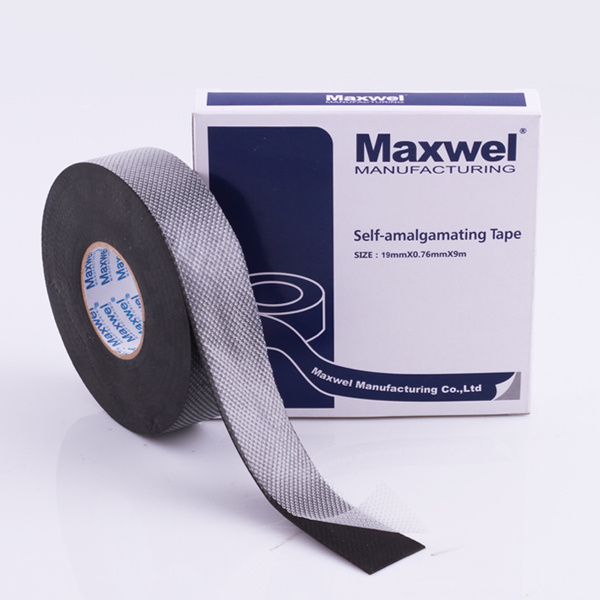

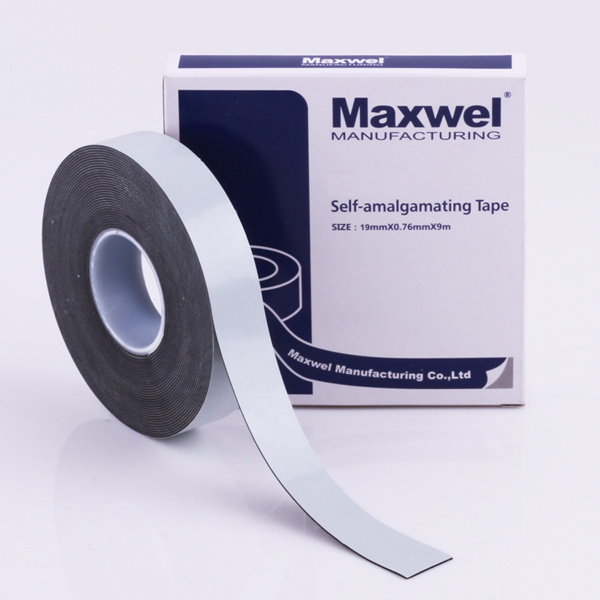

Self fusing tape silicone KE30S

KE30R tape made from premium grand self bonding rubber mainly made from EPR(Ethylene Propylene Rubber). They are non-vulcanizing and shelf-stable with excellent electrical proprties. KE30R tape can be used as insulation for low voltage applications as well as insulation for joints up to 69KV.

Size:
1.19mm*0.76mm*9.14m
2.25mm*0.76mm*9.14m
3.38mm*0.76mm*9.14m
4.50mm*0.76mm*9.14m

Model	Tensile Strength	Elongation	Disruptive Voltage
	(Mpa)	(%)	(KV/mm)
KE10	1.5	500	5
KE20	1.5	600	11
KE30R	1.8	800	32
KE30P	1.8	800	35

Colour: black, blue red, yellow( any colour can be requested)

Features:

Excellent track restistance

Excellent arc resistance

Excellent ozone resistance

High dielectric strength

Workable in extremely low temperature

water-proof

1. Non-vulacanizing and highly conformable
2. Physical and electrical properties are unaffected by the degree if stretch
3. Can be stretched up to 800% to make void-free
4. Moisture-resistant insulation, self-amalgamating tape
5. Excellent electrical properties

Applications:

Automotive repair

Jacketing high voltage terminations

Motor lead insulation

Boat rigging wrapping

Flexible heater repair

Extension cord "connection" wrapping

Heavy duty industrial pipe wrapping

Tool handle wrapping

"Final wrap" for Electrical distribution connections

Power & hand toll insulation

Underwater uses

Emergency radiator hose repairs; emergency insulating&barrier tape

Fishing industry uses

Military applications
Insulating generator coils

Temporary hose repairs

Harness wrapping: automotive, aircraft, protective

1. Primary insulation for make stress cones on cables up to 35kv
2. Primary electrical insulation for cable jointing and terminating up to 69KV with up to 90 degree continuous operating temperature and 130 degree emergency overload temperature

NO	Description	Unit	Spec
1	Tensile Strength	Mpa	≥ 1.0
2	Elongation	%	≥ 500
3	Self Adhesion	/	Not loose
4	Thermal Stress Resistance	/	Pass
5	UV Exposure Resistance	/	No cracks
6	Volume Resistivity	Ω,cm	≥ 10²~10³
