| Prod Model: |
Shipboard Power Cable |
| Type: |
Low Voltage and Medium Voltage |
| Conductor Material: |
Copper Core |
| Range Of Application: |
Shipboard Power Cable |
| Company Type: |
Factory |
| Delievery Time: |
Within 5-10days |
| Standards: |
ASTM, AS/NZS, BS, CSA, DIN, I |
| Ransport Package: |
All Wooden, Coils or as Per Your Request Package |
| Color: |
Black as Per Your Customer Required |
| Rated Voltage: |
1kv |
| Product Type: |
Insulated Stranded |
| Application: |
Computer |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Model: |
Shipboard Power Cable |
| Brand: |
Ronju |
| Wire Core Material: |
Copper or Aluminum |
| Material Shape: |
Round |

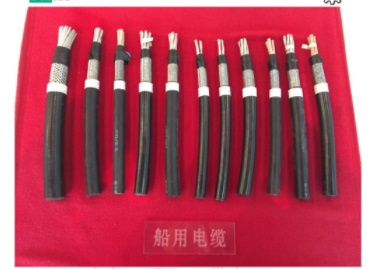

Product Description
EPR/XLPE/PVC/NR+SBR insulated Marine Shipboard Power Cable Marine cables Application:
Marine cable is intended for power,lighting and control system of shipboard and off-shore building and it is also available to metallurgical industry,chemical works,power plant and mine etc.
Marine cables Classification Society Certificates:
CCS,ABS,DNV,BV,LRS,GL,RINA,KR,NK.
International Standards applied:
IEC60228 IEC60092-350 IEC60092-351 IEC60092-353 IEC60092-359
IEC60332-1 IEC60332-3-22 IEC60331 IEC60754-2 IEC60134-2
JIS C 3410 standards
JIS C 3002 JIS C 3005
JIS K 1433 JIS K 8422
DIN standards
DIN89158
DIN89159
DIN89160
Marine cables construction:
1. Conductor: tinned copper wire,class2 or 5
2. Fire resistant Mica tape on request
3. Insulation: XLPE/EPR/PVC/NR+SBR
4. Filler:Polypropylene/rope/tape(PP)/paper
5. Tape:Non-woven fabric
6. Inner sheath: PVC/PCP/PO(SHF1,SHF2)/CSP
7. shield/Armor: tinned copper wire braided/Galvanized steel wire braided
8. Outer sheath:PVC/PCP/PO(SHF1, SHF2) or no outer sheath
Marine cables Specifications:
Cores: 1,2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37
Nominal Cross-section Areas: 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10mm2,16 mm2, 25mm2, 35mm2, 50mm2, 70mm2,95mm2, 120mm2, 150mm2 ,185mm2, 240mm2, 300mm2
Marine cables Flammability features and other constructions:
SA:bunched cable flame retardant
SC:bunched cable flame retardant,halogen free & low smoke
NA:bunched cable flame retardant,fire resistant
NC:bunched cable flame retardant,fire resistant,halogen free & low smoke
R:Flexible conductor with construction
P:Wire or twisted pair with individual shield
Conductor | Nominal
insulation
thickness | Nominal
sheath
thickness | Overall
diameter | Approx
mass | Maximum DC resistance
at 20ºC |
Nominal
section-area
(mm) | Number and diameter of wires
(mm) | XLPE
insulation
(mm) | PVC
insulation
(mm) | XLPE
insulation
PVC
sheath
(mm) | PVC
insulation
PVC
sheath
(mm) | XLPE
insulation (mm) | PVC insulation (mm) | AL conductor(kg/km) | AL
(Ω/km) |
XLPE
insulation | PVC
insulation |
3+1
core | 3×4+1×2.5 | 1/2.25 | 0.7 | 1.0 | 1.8 | 1.8 | 15.9 | 14.1 | 328 | 191 | 7.41 |
1/1.78 | 0.7 | 0.8 | 12.1 |
3×6+1×4 | 1/2.76 | 0.7 | 1.0 | 1.8 | 1.8 | 17.1 | 15.6 | 380 | 239 | 4.61 |
1/2.25 | 0.7 | 1.0 | 7.41 |
3×10+1×6 | 7/1.34 | 0.7 | 1.0 | 1.8 | 1.8 | 18.9 | 18.2 | 465 | 328 | 3.08 |
1/2.76 | 0.7 | 1.0 | 4.61 |
3×16+1×10 | 7/1.7 | 0.9 | 1.0 | 1.8 | 1.8 | 21.0 | 20.9 | 573 | 439 | 1.91 |
7/1.34 | 0.7 | 1.0 | 3.08 |
3×25+1×16 | 7/2.13 | 0.9 | 1.2 | 1.8 | 1.8 | 25.2 | 24.6 | 782 | 623 | 1.2 |
7/1.7 | 0.7 | 1.0 | 1.91 |
3×35+1×16 | 7/2.52 | 0.9 | 1.2 | 1.8 | 1.8 | 25.4 | 26.7 | 1130 | 747 | 0.868 |
7/1.7 | 0.7 | 1.0 | 1.91 |
3×50+1×25 | 10/2.52 | 1.0 | 1.4 | 1.8 | 1.9 | 31.1 | 31.1 | 1428 | 967 | 0.641 |
7/2.13 | 0.9 | 1.2 | 1.2 |
3×70+1×35 | 14/2.52 | 1.1 | 1.4 | 1.9 | 2.0 | 34.4 | 35.6 | 1760 | 1347 | 0.443 |
7/2.52 | 0.9 | 1.2 | 0.868 |
3×95+1×50 | 19/2.52 | 1.1 | 1.6 | 2.1 | 2.2 | 38.8 | 37.8 | 2184 | 1782 | 0.32 |
10/2.52 | 0.9 | 1.4 | 0.641 |
3×120+1×70 | 24/2.52 | 1.2 | 1.6 | 2.2 | 2.4 | 42.6 | 39 | 2632 | 2186 | 0.253 |
14/2.52 | 1.1 | 1.4 | 0.443 |
3×150+1×70 | 30/2.52 | 1.4 | 1.6 | 2.3 | 2.6 | 46.4 | 41 | 3078 | 2528 | 0.206 |
14/2.52 | 1.1 | 1.4 | 0.443 |
3×185+1×95 | 37/2.52 | 1.6 | 2.0 | 2.5 | 2.8 | 51.3 | 42.3 | 3701 | 3140 | 0.164 |
19/2.52 | 1.1 | 1.6 | |
ABOUT CABLE&FACTORY
1. Sufficient support for our tendering representatives.
2. OEM service available based on official & legal authorization.
3. Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support (technical data, drawing, etc.)
7. Cable solutions to your particular requirements.
8. Free sample is available with economic express fee.
9. 12 months quality guarantee after delivery.
After-Sales Service:
If you are interested in our products, pls supply more specification, such as, how many cores, nominal section area, conductor material(aluminum or copper) and usuage to me. Then,we will send our best quotation to you.
We can provide cable fixation, installation and testing suggestion and help if customer need. if big project problem,technicians can be sent to give instructions to the customers.
Sample Charge: When you place order for fire resistant cable , the sample fee can be returned to you as support.
Our Services:Our company has been carrying out CCC,CE,CB , ISO ,OHSAS for flame retardant cables and fire resistant cables in domestic market, for global market we strictly do in accordance with AS/NZS3013 and other corresponding standards. OEM cables are welcomed also.
COMPANY PROFILEChongqing RonJu Co.,LTD which was established with registered capital of 100,000,000 RMB in 2016 Sited in Xi YOng, an industrialized area in shapingpa,.
Chongqing ron ju co.,ltd integrates innovation, generation and sale of cables on a highly efficient production line. Our product is currently widely embraced in multiple areas ranging from electricity to transportation and even urban modernization, proving its versatility and sustainability.
We specializes in manufacturing all kinds of cables with different voltage power cables, control cables, building wires, aluminum alloy cables, aerial cable and other special cables.
We exported all kinds of cables and wires to America,Europe,Australia,Africa,Asia,and so on.Our company got the certificate for ISO 9001 quality system certificate;ISO14001 environmental management system certificate. All the products produce according to,IEC , GB standard.Besides,We also manufacture products according to customer's requirement.
Our team, young and industrious, is dedicated in advancing product itself and the production technique as well, maintaining the established user base, enlarging it through constantly providing high quality products and impeccable service, which are also the sound ground for our branding in this intensely competing international.

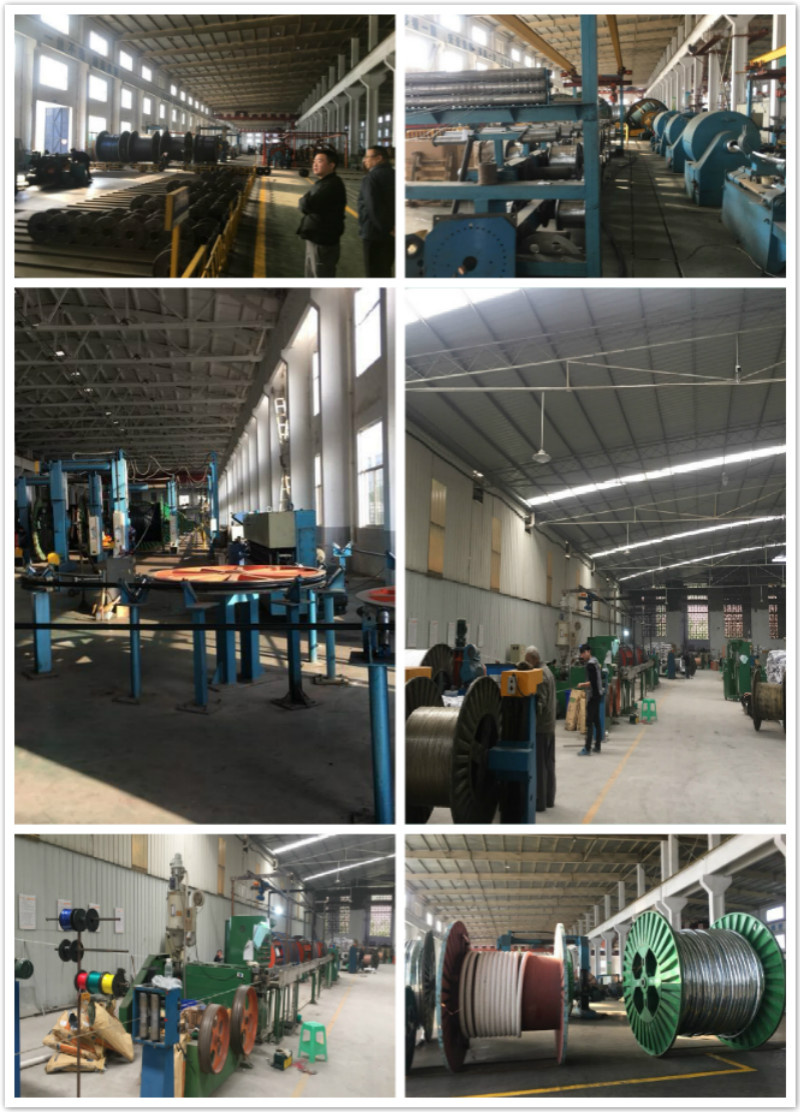

With highly specialized products and constantly generated power, our company, R. J. Cable, establishes its "three-in-one" branding (the brand of entrepreneurs, of enterprises, and of products) and pursues a long-term proceeding. Our marketing is distinct for its market-oriented strategies and immediate responses to volatility. Such qualities significantly fuel a dynamically proceeding company. Our Factory:
Our Certification:

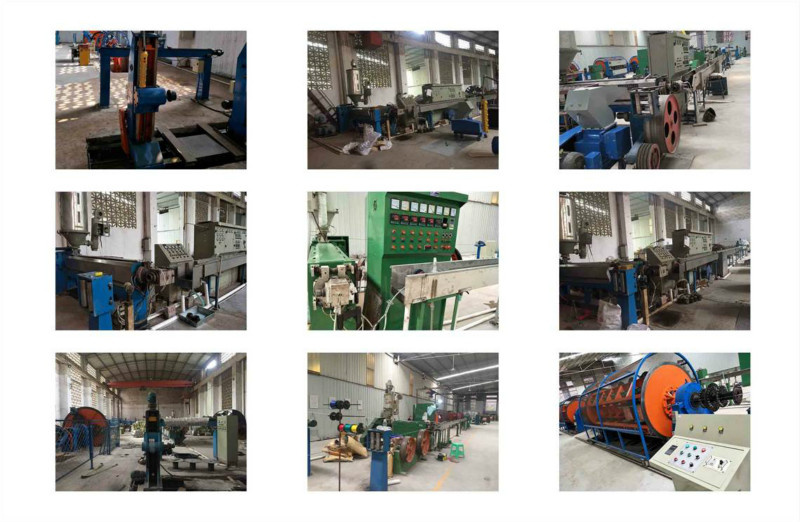

Our Advance Equipment:

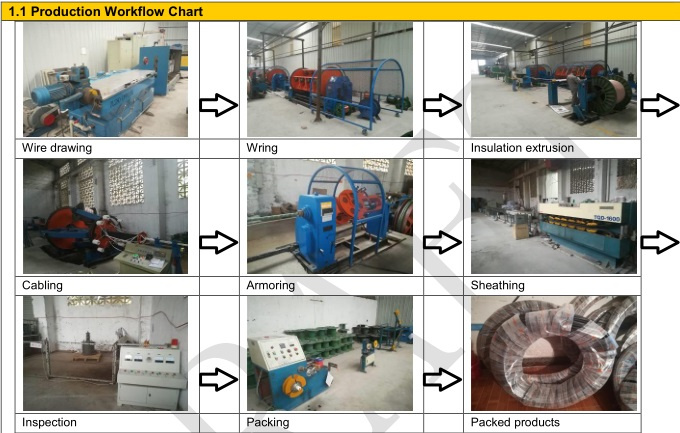

Our Production Process:

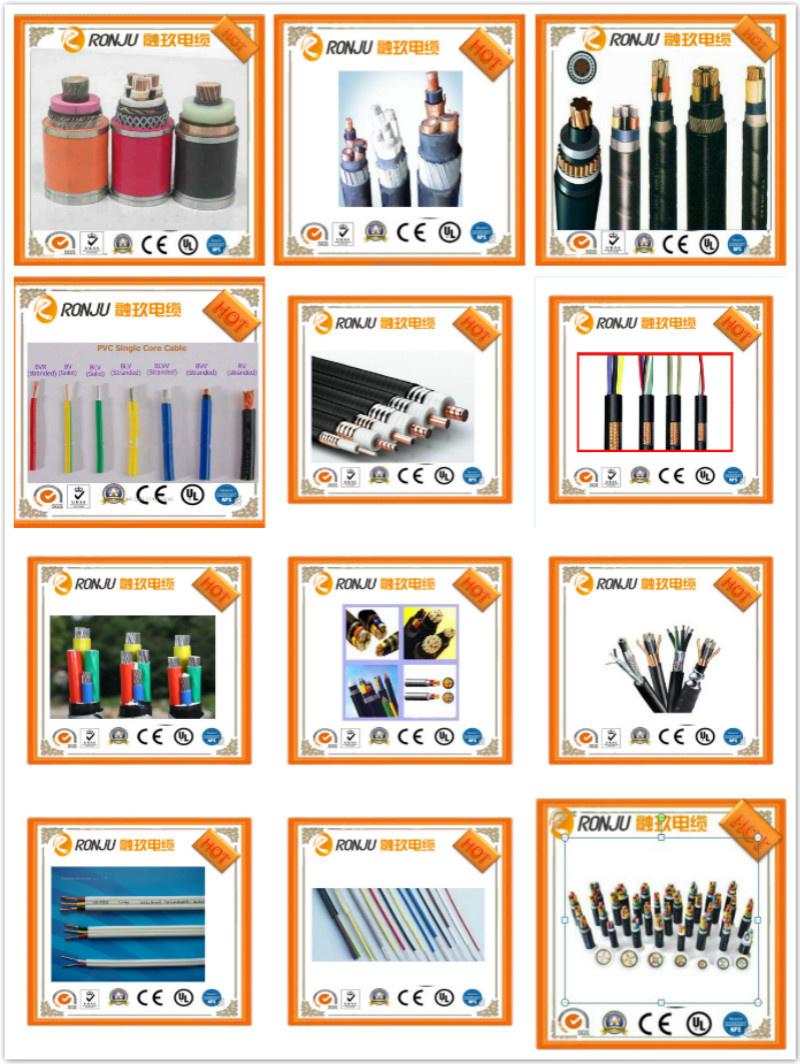

Our Main Products:
