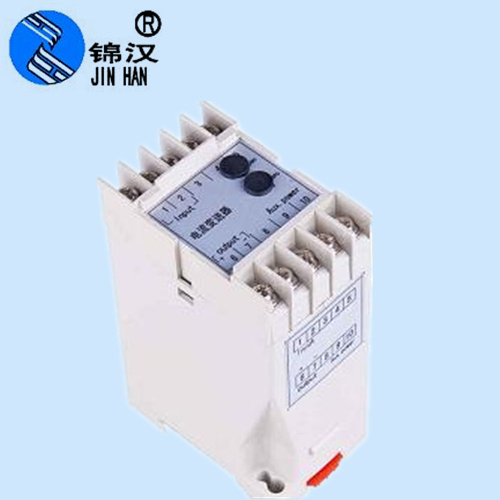

| Prod Model: |
EPV |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Manufacturers: |
Haiyan Jinhan Electronic Technology Co.,Ltd |
| Treadmark: |
Jinhan |
| MOQ: |
1 Piece |
| Model No: |
Gpv-Vn-Fn-Pn-on |
| Export Markets: |
Global |
| Production Process: |
Integration |
| Shell Material: |
Beige Plastic-Shell |
| N.W: |
About 0.5kg |
| Freight: |
by Air |
| Installation: |
35mm DIN Sliding-Way |
Product Description
Parameter:
Vn:
Input voltage
| Vn
| V1
120V
0-150V | V2
240V
0-300V | | On:
Output |
| An: | An
| A1
1A
0-1.2A | A2
5A
0-6A | | 01
0-1mA | 02
0-20mA | 03
4-20mA |
04
0-5mA | 05
0-10mA | |
Fn:
Input Frequency
| Fn
| F1
50Hz
45-55Hz | F2
60Hz
55-65Hz | |
07
0-1V | 08
0-5V | 09
0-10V |
Pn:
Auxiliary
Power |
Pn | P1
AC 100V
PD1*
DC 110V | P2
AC 220V
PD1*
DC 220V | |
010
2-10V | 011
1-5V | |
Model and Ordering
EPV-Vn-Fn-Pn-On
Example:
1. EPV-V1-F1-P2-03
Input:120V
Auxiliary Frequency:50Hz
Power:AC 220V
Output:4-20mA
If you have any questions about this,welcome to contact us.
We are all at service.
The model of this series is shown in the following table :| Product | Model No. | Swap model |
| AC current transducer(1 unit of avg. to rms conversion) | GPA | EPA |
| AC current transducer(1 unit of avg. to rms conversion) | GPV | EPV |
| AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPA2 | EPA2 |
| AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPV2 | EPV2 |
| AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPAX2 | EPAX2 |
| AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPVX2 | EPVX2 |
| AC current transducer(1 unit of avg. to rms self-powered) | GPAS | EPAS |
| AC current transducer(1 unit of avg. to rms self-powered) | GPVS | EPVS |
| AC current transducer(3 unit of avg. to rms self-powered) | GPAXS | EPAXS |
| AC current transducer(3 unit of avg. to rms self-powered) | GPVXS | EPVXS |
| AC current transducer(TRMS conversion ) | GPAR | EPAR |
| AC current transducer(TRMS conversion ) | GPVR | EPVR |
| AC current transducer(2 output) | GPAT | EPAT |
| AC current transducer(2 output) | GPVT | EPVT |
| AC current transducer(3 unit of avg. to rms conversion) | GPAX | EPAX |
| AC current transducer(3 unit of avg. to rms conversion) | GPVX | EPVX |
| 3 phase 3 wire reactive power transducer | GPK201 | EPK201 |
| 3 phase 3 wire reactive power transducer(2 output) | GPKT201 | EPKT201 |
| 3 phase 3 wire Active power&reactive power transducer | GPWK201 | EPWK201 |
| 3 phase 3 wire Active power transducer | GPKT201 | EPKT201 |
| 3 phase 3 wire Active power transducer(2 output) | GPWT201 | EPWT201 |
| 3 phase 3 wire wate&var¤t transducer | GPWKA201 | EPWKA201 |
| 3 phase 4 wire reactive power transducer | GPK301 | EPK301 |
| 3 phase 4 wire reactive power transducer(2 output) | GPKT301 | EPKT301 |
| 3 phase 4 wire Active power&reactive power transducer | GPWK301 | EPWK301 |
| 3 phase 4 wire Active power transducer | GPKT301 | EPKT301 |
| 3 phase 4 wire Active power transducer(2 output) | GPWT301 | EPWT301 |
| 3 phase 4 wire wate&var¤t transducer | GPWKA301 | EPWKA301 |
| 3 phase 3 wire Active energy transmitter | GPWH201 | EPWH201 |
| 3 phase 3 wire Reactive energy transmitter | GPKH201 | EPKH201 |
| 3 phase 3 wire Active power+energy transducer | GPWWH201 | EPWWH201 |
| 3 phase 3 wire Reactive power+energy transducer | GPKKH201 | EPKKH201 |
| 3 phase 4 wire Active energy transduce | GPWH301 | EPWH301 |
| 3 phase 4 wire Reactive energy transduce | GPKH301 | EPKH301 |
| 3 phase 4 wire Active power+energy transducer | GPWWH301 | EPWWH301 |
| 3 phase 4 wire Reactive power+energy transducer | GPKKH301 | EPKKH301 |
| Frequency transducer | GPF | EPF |
| Power factor transducers | GPPF | EPPF |
| Dc isolation transmitter | GPD | EPD |
| Dual output dc isolation transmitter | GPDT | EPDT |
| Power controller | GPS | EPS |
