Ningbo Energylux Optoelectronics Technology Co., Ltd. >> Es-M05 Dimming Function Microwave Sensor

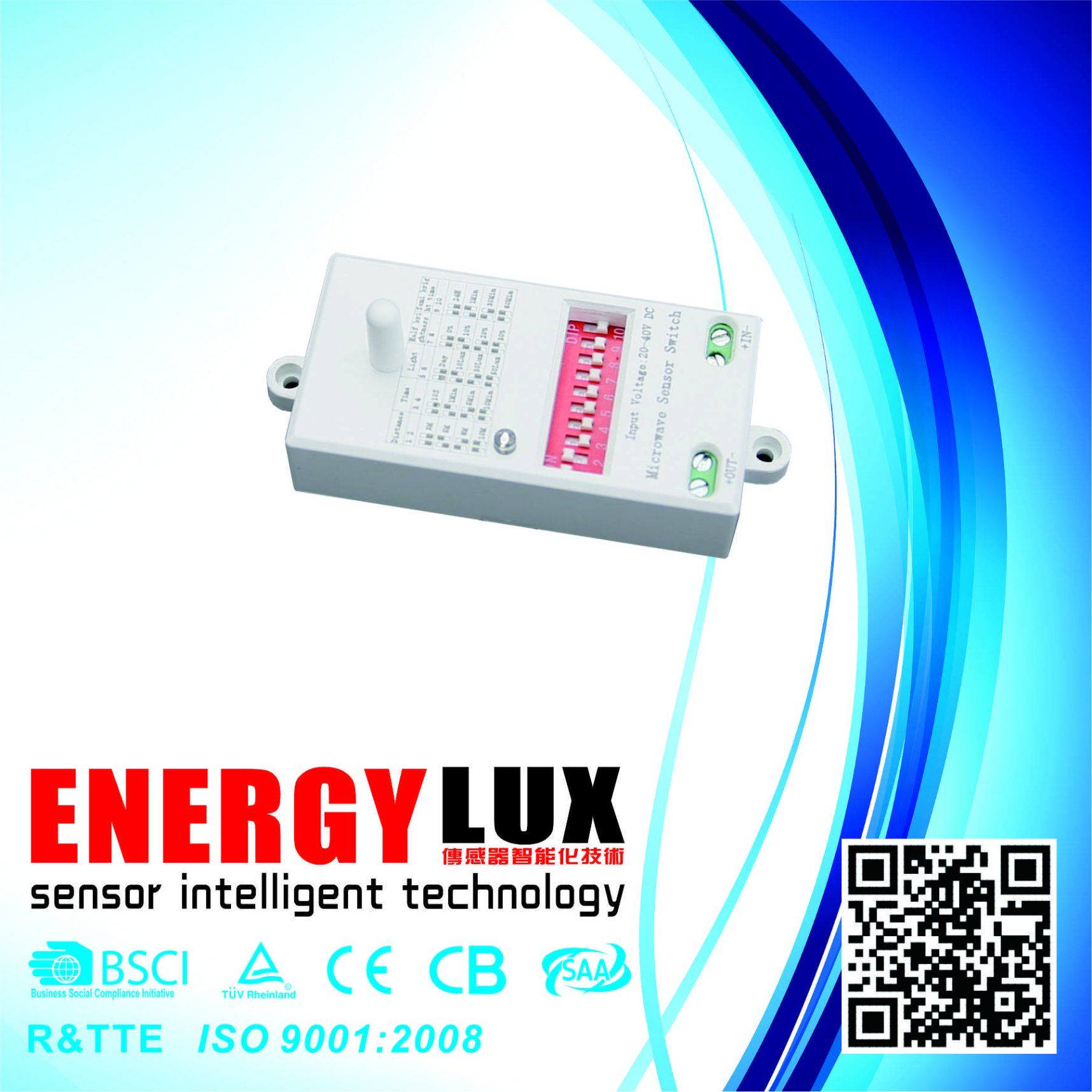

Es-M05 Dimming Function Microwave Sensor

Es-M05 Dimming Function Microwave Sensor
Price: US $ 4-5/Piece
Min Order: 1000/Piece
Pay Type: T/T,Paypal
Prod Model: ES-M05
IP Rate: IP20
Warranty: 2 Years
Type: Microwave Sensor Switch
Principle: Capacitive
Wires: NPN (',Three-Wires)
Standard: Standard
Application: Corridor
Size: 86 Type
Certification: CE

Product Description

Product Description
This is Dim Microwave Sensors For Lamp.Dim Level:0%,10%,20%,30%
HF System5.8GHz CW Radar ISM Band
Power Source110~240V/AC 50/60Hz
Detection Angle360°
Detection Range3m,5m,8m,10m adjustable by dip switch
Time Setting10s-1,5,10min adjustable
Ambient Light10,30,50,lux Day
Waterproof GradeIP20
Rated Load1200w for incandescent lamp
 300w for led lamp
Energylux is located in east China Port city Ninghai, Ningbo, where it has convenient transportations and developed economies. Energylux is dedicated in the R&D, manufacturing, and marketing of sensors, intelligent lighting products. After years of development, Energylux now has mold development department, injection department, PCB manufacturing department and final products assembly department, it accepts OEM and ODM orders.

Based on the slogan of "Science Originates From Human Being", Energylux has always dedicated itself in the R&D of modern intelligent home electrical products. Its product range covers, infrared sensors, microwave sensors, intelligent sensor lights, photocells, smoking alarms, etc. Most of the products are CE, CB, SAA, RoHS, REACH, TUV MARK approved, can meet the wide requirements of clients from different regions. Now Energylux products are selling to European countries, America, Russia, and Southeast Asia countries.

We, Energylux, sincerely wish to create a bright future with you together!
