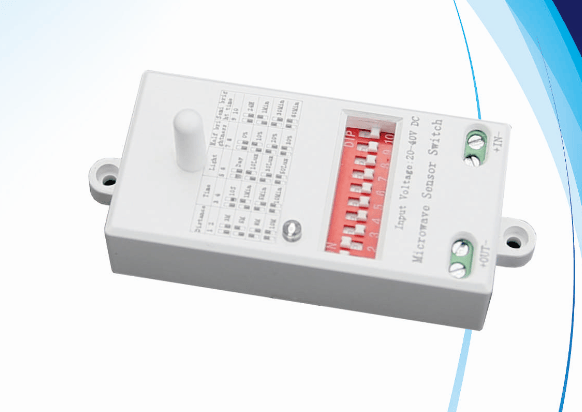

Es-M05 Microwave Motion Sensor with Dimming Function
| Price: |
US $ 4.8-10/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
ES-M05 |
| Installation Type: |
Wall, Ceiling, etc |
| Sensing Type: |
Microwave |
| Material: |
PC |
| Measuring Medium: |
Mircowave |
Product Description

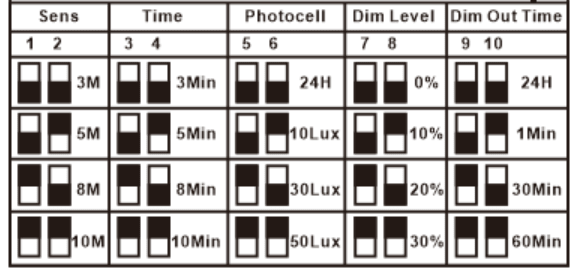

Welcome to use ES-M05 Microwave Sensor!The product is a new saving-energy switch; it adopts microwave sensor mould with high-frequency electro-magnetic wave (5.8GHz), integrated circuit. It gathers automatism, convenience, safety, saving-energy and practicality functions. The wide detection field is consisting of detectors. It works by receiving human motion. When one enters the detection field, it can start the load at once and identify automatically day and night. Its installation is very convenient and Its using is very wide. Detection is possible through doors, panes of glass or thin walls.SPECIFICATION:Power Sourcing: 20V-60V/DC Detection Range: 360°Power Frequency: 50Hz/60Hz Detection Distance:3m.5m.8m.10m adjustableAmbient Light: Day.10LUX.30LUX.50LUX. (Adjustable) HF System: 5.8GHz CW radar, ISM band Transmission Power: <0.2mWTime-Delay: min.:10sec 1Min 5Min 10Min Dim Level: 10% 20% 30% Dim Out Time:24H.1Min.30Min.60MinFUNCTION:- Can identify day and night: It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can work in the ambient light less than 3LUX when it is adjusted on the "moon" position (min). As for the adjustment pattern, please refer to the testing pattern.
- SENS adjustable: It can be adjusted according to using location; low sensitivity with 2m for detection distance; High sensitivity with 16m, it fits for large room.
- Time-Delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the basic of the first time-delay rest.
- Time-Delay is adjustable. It can be set according to the consumer's desire. The minimum time is 10sec±3sec. The maximum is 20min±1min.
- 2 level function: 0-50% dimmable. Hit the "reset" button,then switch the "sen" knob for dim lux adjustment(0-50%).When light turn on and off again,knob "sen" is available for sensitivity adjustment again.
NOTE: the high-frequency output of this sensor is <10Mw- that is just one 100th of the transmission power of a mobile phone or the output of a microwave oven.INSTALLATIION: (see the diagram)- Switch off the power.
- Fix the bottom on the selected position with the inflated screw through the screw holes in the side of the sensor.

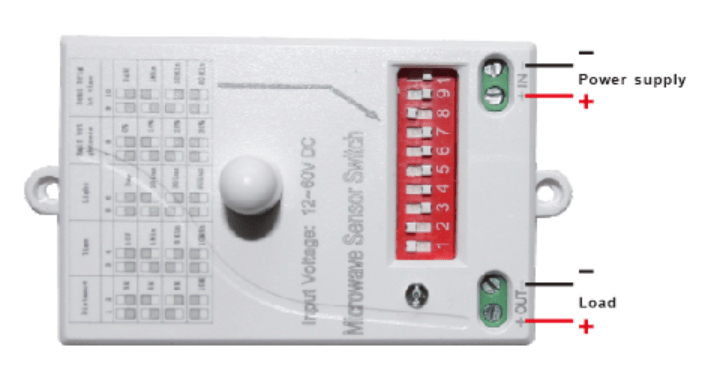

- Connecting the power and the load to sensor as per the connection-wire sketch diagram.
- Switch on the power and test it
CONNECTION-WIER SKETCH DIAGRAM
TEST:- Turn the LUX knob clockwise on the maximum (sun), turn the TIME knob anti-clockwise on the minimum, turn the SENS knob clockwise on the middle.
- When you switch on the power, the controlled load and indication lamp are both not working. Preheat 30 seconds later, the load and the indicator lamp are turned on synchronization, in the absence of no inductor signals, the load should be stopped working within 5-30sec, the indicator lamp is turned off.
- After the first sensor is out, 5-10sec later, the sensor could be worked again, and the load should work. When there is no inductor signals in the indicator lamp, the load should be stopped working within 5-15sec.
- Turn LUX knob anti-clockwise on the minimum. If it is adjusted in the less than 3LUX, the inductor load should not work after load stop working. under no induction signal condition, the load should stop working within 5-15sec.
Note: when testing in daylight, please turn LUX knob to (SUN) position, otherwise the sensor lamp could not work!NOTES:- Electrician or experienced human can install it.
- The unrest objects can't be regarded the installation basis-face.
- In front of the detection window there shouldn't be hinder or unrest objects effecting detection.
- Avoid installing it near air temperature alteration zones for example: air condition, central heating, etc.
- For your safety. Please don't open the case if you find hitch after installation.
- In order to avoid the unexpected damage of product, please add a safe device of 6A when
installing infrared sensor, for example, fuse, safe tube etc.SOME PROBLEM AND SOLVED WAYa. Check the power and the load.b. Whether the indicator light is turned on after sensing? If yes, please check load.c. If the indicator light does not turn on after sensing, please check if the working light corresponds to the ambient light. d. Please check if the working voltage corresponds to the power source.a. Please check if in front of the detection window there are hinder that effect to receive the signals.b. Please check the ambient temperature.c. Please check if the signals source is in the detection fields.d. Please check the installation height.- The sensor can't shut automatically the load:
a. If there are continual signals in the detection fields.b. If the time delay is set to the longest.c. If the power correspond to the instruction.d. If the air temperature change near the sensor, air condition or central heating etc.
