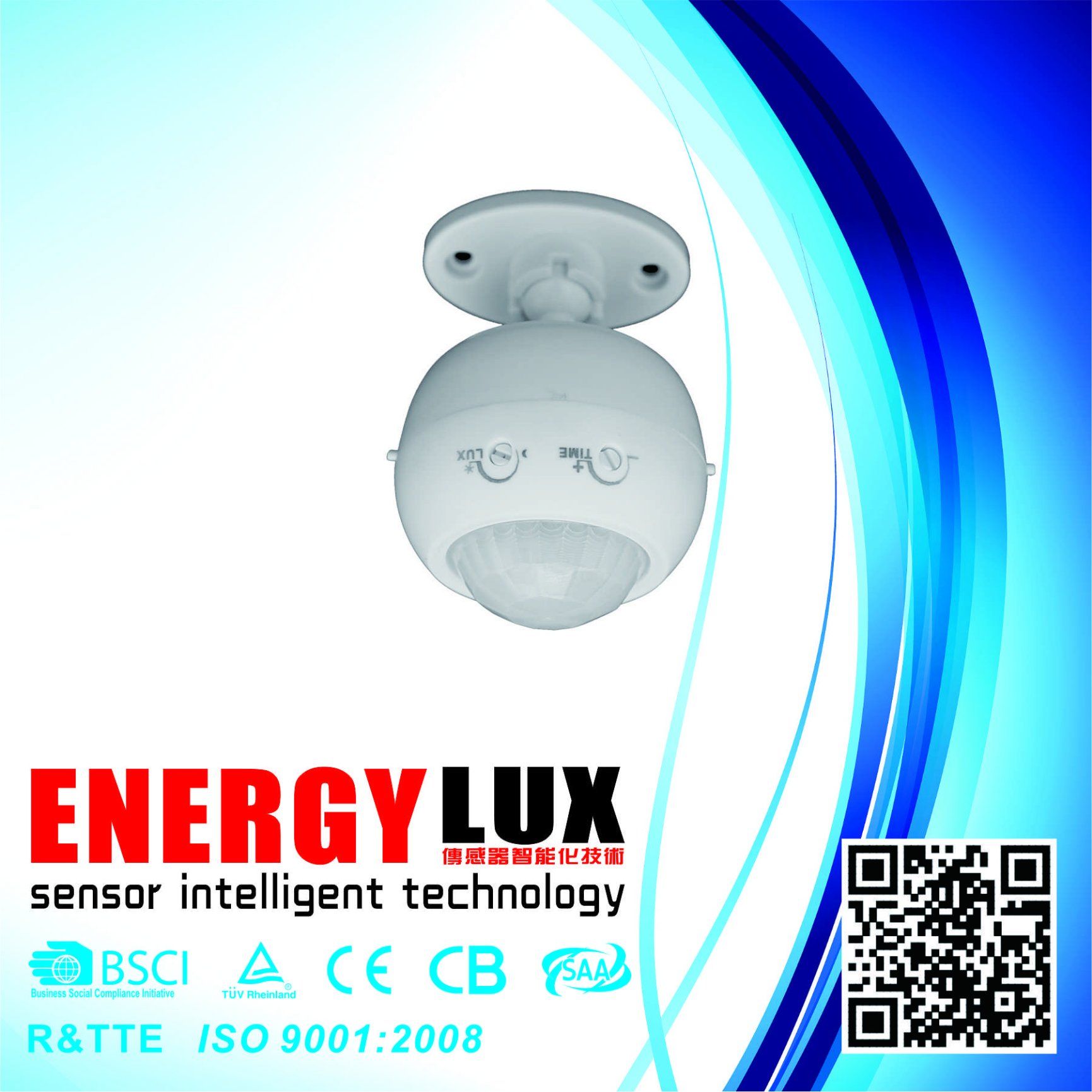

Es-P27A Wide Angle PIR Motion Sensor
| Price: |
US $ 3.05-150/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Product Description
Welcome to use ES-P27A infrared motion sensor!The product adopts good sensitivity detector, integrated circuit. It gathers automatism, convenient safe, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.SPECIFICATION:Power Source: 220 -240V/AC Detection Range: 360°Power Frequency: 50/60Hz Detection Distance: 8m max (<24ºC)Ambient Light: 3-2000LUX (adjustable) Working Temperature: -20~+40ºCTime-Delay: min: 10sec±3sec Working Humidity: <93%RH max: 7min±2min Installation Height: 2m~4mRated Load: 1200W/220V (incandescent lamp) Power Consumption: 0.45W (work) 300W/220V (energy-saving lamp) 0.1W (static) Detection Motion Speed: 0.6~1.5m/s
FUNCTION :- LUX adjustable: The consumer can adjust work ambient light. It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can work in the ambient light less than 3LUX when it is adjusted on the "moon" position (min). As for the adjustment pattern, please refer to the testing pattern.
- Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basic (set time).
- Time-delay adjustment: It can be set according to the consumer's desire. The minimum time is 10sec±3sec. The maximum is 7min±2min.
INSTALLATION:- Shut off the power.
- Firstly, screw the middle part with the sensor part together, check the right figure, ( this part is screwed when leaving factory)
- Unscrew the beside of the middle part, and install the gimbals' base in the ceiling or other place where you want to install, fasten the sensor part (first step in here) with the base, screw and fix the sensor part to base.
- Connect the power and load together according to the following figure.
- Switch on the power and test it.
CONNECTION-WIRE DIAGRAM:(See right figure)TEST: - After installation, Turned LUX knob clockwise to the maximum (SUN position). Turned time knob anti-clockwise to the minimum (-).
- Turn on the power, the sensor will be electrify and warm-up, 30 sec later, the item will be entered into working estate.
- 5~10 seconds after the light goes out for the first time and then sensing, the load should be worked.
- Turns LUX knob anti-clockwise to the minimum. If it is tested under the circumstance below 3LUX, load should not work after induction load stop working; but if you cover the detection window with opaque objects (towel etc), the load works. Under the condition of no induction signals, the load should stop working within 5-15 sec.
NOTED: When testing in Daylight, please turn LUX knob to (SUN) position, otherwise, the sensor will not induce and make the light bright.NOTE:- Should be installed by electrician or experienced man.
- Avoid installing it on the unrest objects.
- There shouldn't be hindrance and moving object in front of the detection window effecting detection.
- Avoid installing it near air temperature alteration zones such as air condition, central heating, etc.
- Considering your safety, please don't open the cover when you find the hitch after installation.
SOME PROBLEM AND SOLVED WAY:- The load don't work:
- Please check the power and load connect is correct.
- Check if the load is good.
- Check if the working light corresponds to the ambient light.
- The sensitivity is poor:
- Please check if there is hinder in front of the detection window to effect receiving the signals.
- Please check if the ambient temperature is too high.
- Please check if the signals source is in the detection fields.
- Please check if the installation height corresponds to the height showed in the instruction.
- The sensor can't shut the load automatically:
- Check if there are continual signals in the detection fields.
- Check if the time delay is set to the longest.
- Check if the power corresponds to the instruction.
- Check if the temperature change obviously nears the sensor, such as air condition or central heating etc.
| Model Number | ES-P27A |
| Detection Range | 8M max |
| Detection angle | 360° |
| Time setting | 10Sec-7Min |
| Power source | 110~240V/AC |
| Power frequency | 50/60Hz |
| Rated Load | 1200W max |
| Working humidity | <93%RH |
| Surrounding light | 10LUX-2000LUX |
| Working temperature | -20°C~+40°C |
| Installation height | 0.5m-4.5m |
| Quantity | 50pcs per carton |
| net weight | 8kgs per carton |
| Gross weight | 10kgs per carton |
| Carton size | 46x46x33.5CM |
