ESCON Duplex Fiber Optic Patch Cord (145453-583)

Name: ESCON Duplex Fiber Optic Patch Cord (145453-583)
Brand: all-electronics-online.com
SKU: 713054265
Availability: InStock
Rating: 4.3 (136 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	145453-583
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Typical Il:	<0.2dB
Typical Rl:	Sm>50dB, mm>30dB
Fiber Type:	Om1, Om2, G652D
Ferrule Endface:	PC(',UPC)
Transmission Medium:	Single-Mode or Multi-Mode
Structure:	ESCON
Number Of Cores:	Duplex
Connector Type:	ESCON
Brand:	Koc

Product Description

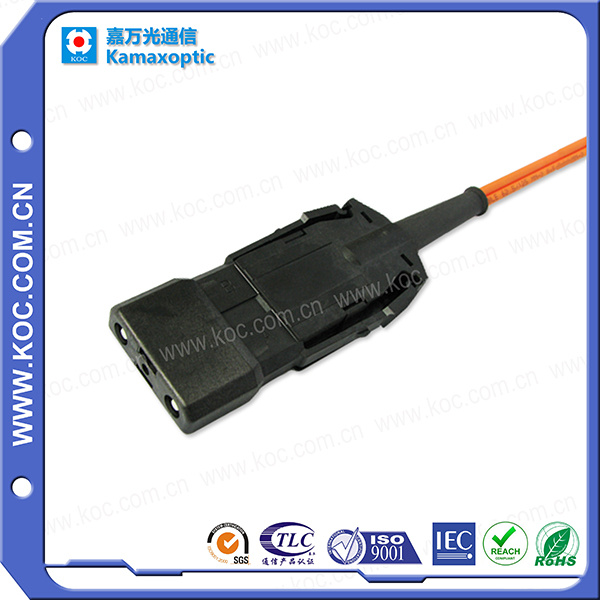

Description of ESCON patch cable:
The fiber optic cables of the ESCON patch cord are specially used for IBM ESCON system. KOC provide single mode and multimode ESCON patch cord. The cable is duplex type.
ESCON connector has a shock proof plastic housing with a retractable shroud to protect the ceramic ferrules inside the connector. ESCON is a push pull latching mechanism fiber connector.

Features:
High temperature stability
Low insertion loss and back reflection loss
Good Durability
Standard: Telcordia GR-326-CORE
Good exchangeability

Applications:
FTTH application
Data processing networks
LANS, WANS, CATV
Premise installations
Industrial, mechanical and military
Test equipment and active device termination

	Single mode	Multimode
Insertion Loss	Typical <=0.2dB, Maximum<=0.3dB	≤0.25dB
Return Loss	≥50 dB (UPC)	≥30 dB
Repeatability	≤0.1
Durability	≤0.2 dB typical change, 1000 matings
Interchangeability	≤0.2dB
Tensile strength	>70N
Operating Temperature	-40 to + 85°C

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.

About KOC

Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.

Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!

To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.

To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.

Please visit us website for more information: http://www.koc.com.cn
