ESCON Sm Patch Cord/ Fiber Optic

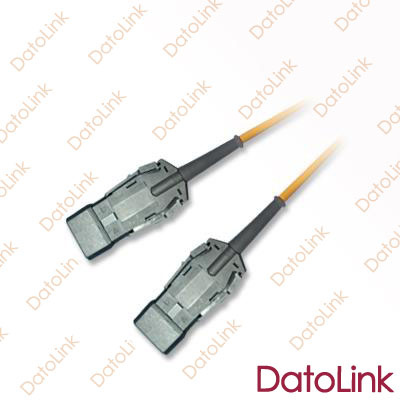

Name: ESCON Sm Patch Cord/ Fiber Optic
Brand: all-electronics-online.com
SKU: 709311495
Availability: InStock
Rating: 4.9 (120 reviews)

Price:	US $ 3-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCESES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insert Loss:	< 0.20db
Return Loss:	> 50db
Durability:	< 0.20 Db Typical Change, 1000 Mating
Type:	Single-mode Fiber
Application:	Communication
Certification:	ISO9001
Connection Structure:	ESCON

Product Description

Features:

Low insertion loss(≤ 0.20dB)and high return loss(≥ 55 dB)
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignment connector

Applications:

Local Area Networks (LANs) and Wide Area Networks (WANs)
Fiber Optic CATV, FTTH, FTTB, FTTP etc
Fiber Optic telecommunication systems
Transmission Mode (ATM)
Fiber Optic Backbone
Military Instrumentation

Specifications
	Single mode	Multimode
Insert Loss	≤0.20dB	≤0.25dB
Return Loss	≥50 dB (PC)
	≥55 dB (UPC)
	≥65 dB (APC)
Durability	<0.20 dB typical change, 1000 mating
Operating Temperature	From -40 to + 80°C	From -40 to + 80°C
Ferrule Hole Sizes	125.0+1/-0μm, Concentricity: ≤1.0μm	125μm, Concentricity: 1≤3μm
	125.5+1/-0μm, Concentricity: ≤1.0μm	127μm, Concentricity: 1≤3μm
	126.0+1/-0μm, Concentricity: ≤1.0μm	128μm, Concentricity: 1≤3μm

Shenzhen Datolink Communication Technology Co., Ltd. Was founded in the January of 2007 by several engineers, who have had many years of working experience in fiber optical as well as in structured cabling industry. Datolink is a high technology oriented company with fiber optical products and structured wiring. We are dedicated to the design, manufacture and sales, meanwhile, we can provide customers with complete cabling solutions in installation and maintenance.

The company has a strict and comprehensive system of quality control and approved the standard ISO9001: 2000. Is well connected with raw materials providers and factories worldwidely, to offer customers a broad line of products with competitive prices and very soon time of delivery.

Our products have been exported to over 20 countries and regions such as Europe, Middle East, Southeast Asia, Latin America, etc. Datolink Ltd is committed to offer the partners high quality products and professional services, we look forward for the successful development with mutual-benefits, for casting the future of fiber optical and structured cabling!
