ESD Anti-Static Bakelite Insulation Sheet

Name: ESD Anti-Static Bakelite Insulation Sheet
Brand: all-electronics-online.com
SKU: 833766325
Availability: InStock
Rating: 4.8 (102 reviews)

Price:	US $ 2.8-3Kilogram
Min Order:	500Kilogram
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ESD Bakelite
Sheet Size:	1025X1230mm
Thickness Range:	3.5mm~25mm
Min. Order Quantity:	500 Kgs in a Lot
Packaging Details:	500-1000kgs Per Pallet or as Required
Lead Time:	7-15 Days After Confirmed
Application:	Insulating Washers
Type:	Insulation Sheet
Chemistry:	Inorganic Insulation
Material:	Paper
Thermal Rating:	E 120
Maximum Voltage:	20KV~100KV
Color:	Black
Brand:	Nova

Product Description

Description

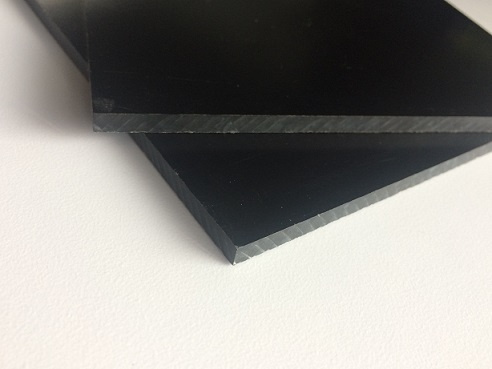

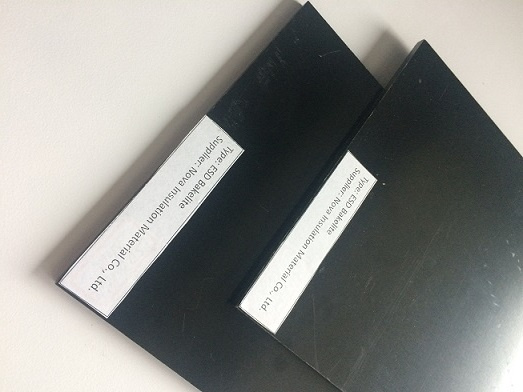

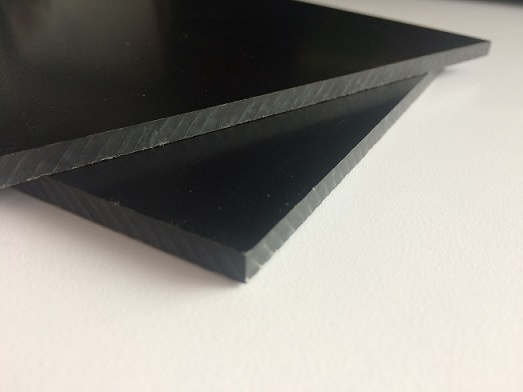

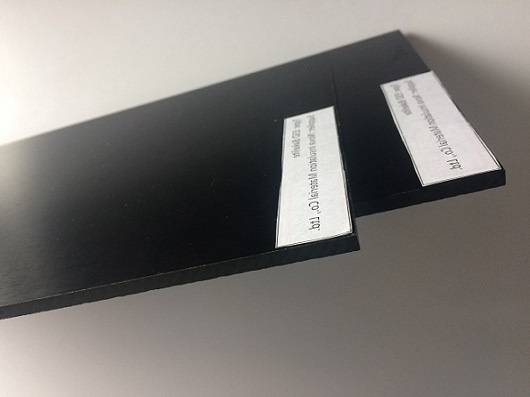

ESD Anti-Static phenolic paper laminated bakelite sheet-natural color is typically black. known as Phenolic paper laminated owns the character of good mechanical strength, anti-static, intermediate electrical insulation. It`s made by insulating paper impregnated with phenolic resin, after baking hot pressing.

This product is suitable for high performance requirements of electrical machinery, electrical equipment as insulating structural parts, and in the transformer oil. Room temperature electrical properties with good machining performance, the proportion is 1.5, warpage 3 ‰ maximum, with excellent electrical, mechanical and processing properties.

Applications:
They are widely used for template test PCB & ICT applications, double-side Static diffusion.

Specifications:
1) Grade: A
2) Color: Orange; Black
3) Thickness range: 3.0mm to 25mm.
4) Sheet Size: 1025X1230mm
5) Min. Order Quantity: 500 kgs in a lot

Technical of bakelite sheet

Properties		Unit	Measure dvale
Color			Black
Thermal stability(continuous)	≥	°C	90
Thermal stability(short time)	≥	°C	150
Density		g/cm3	1.45-1.5
Coefficient of linear thermal expansion		Kx	10
Impact strength	≥	KJ/m2	67
Flammability(UL94)		HB	94
Flexural strength perpendicular to laminations	≥	MPa	120
Compression strength perpendicular tolaminations	≥	MPa	250
Tensile strength	≥	MPa	100
Adhesive strength	≥	N	3600
Insulation Resistance afterimpregnated in water	≥	Ω	10^5~10^9
Dielectric StrengthPerpendicular to Laminations	≥	KV/m	12.1
(in 90±2°C transformer oil,1mm in thickness)	≥	KV/m	12.1
Breakdown voltage parallelto laminations(in 90±2°CTransformer oil)	≥	kV	10
Permittivity(1MHz/50Hz)	≤	-	5.5
Volume resistance		Ω x cm	10-7~10-8
Surface resistance		Ω	1023
Bibulous rate	≤	-	1.5

About Us:

Nova Insulation Maetrial Co.,Ltd. is specialized in manufacture all kinds of Phenolic paper laminated products with over 10 years experience.

We can serve you not only customize the Phenolic paper laminated products for you, but also very experienced design concept, strong program management system, well trained employees for Phenolic paper laminated making process, sophisticated equipment, and strict quality control schedule which can make us to be the successful manufacturer with high quality products and on time delivery for each of your projects.

We sincerely hope to be your long-term partner to develop new markets together,and create brilliant!

FAQ
1.Q:Are you factory?
A:We are manufacturer with export license.
2.Q:How about the delivery time?
  A:Usually 7-15days,also depends on quantity.
3.Q:Can I get free sample for check?
  A:Normally small size can be provided for free and customers just need to take charge for express fee.
4.Q:Can you give me a discount price?
  A:It depends on quantity,the larger quantity is,the more discount you can get.

Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
