ESD Ricocel Wave Solder Pallet Material

Prod Model:	PR-RIC-1
Thickness:	3/4/5/6/8/10/12/15/20/25/30mm
Size:	1220*2440mm
Density:	2.1g/cm3
Fob Port:	Shenzhen
Sample Availability:	Yes
Small Order:	Accepted
Lead Time:	3 Working Days
Service:	Cut-to-Size
Type:	Solid
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Maximum Voltage:	10KV~20KV
Application:	Solder Pallet
Thermal Rating:	300°c
Color:	Black
Brand:	Prior

Product Description

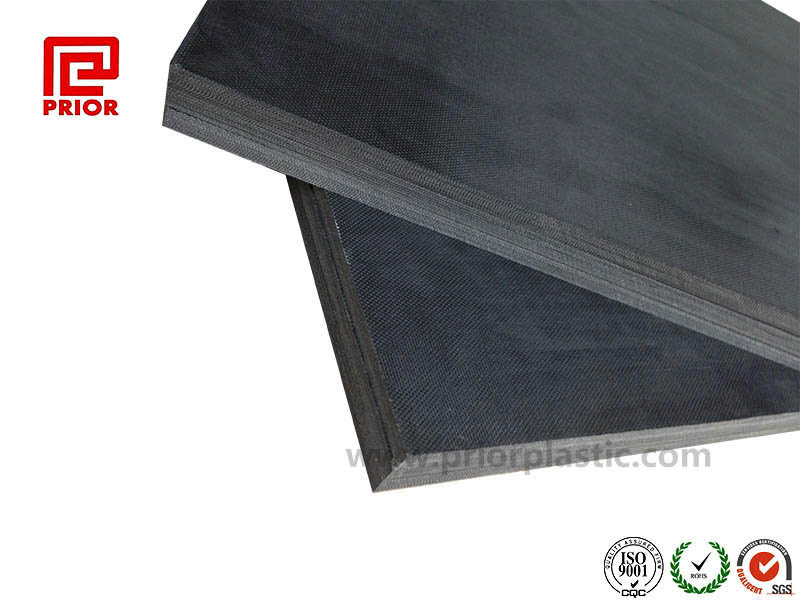

ESD Ricocel Wave Solder Pallet Material

Ricocel is an ideal material for solder pallets, wave solder pallets, SMT solder pallets, SMT solder fixtures, selective solder fixtures and other specialty soldering fixtures.

Characteristics
- Excellent durability against repetitive soldering of more than 20,000 times.
- Excellent mechanical strength for precision machining.
- Excellent chemical resistance against soluble flux or pallet cleaner.
- Teflon-coating is not necessary to make up for durability or cleanability.
- Excellent machinability which is durable against high speed machining.
- Lead free material/ RoHS COMPLIANT
- Strong Thin Wall up to 0.5mm

Comparison between Durostone and Ricocel
1.Anti-static resistance value

Alternative Ricocel	Alternative Durostone
10^6~10^9	10^5~10^9


2. Thermal warpage
From the figure below, the 24 hour, 280°C continuous heating proves shows that ricocel has less deformation, material size :3x500x500mm

3. Thin wall tooling yielding rate

Alternative Ricocel	Alternative Durostone
99.48%	96.53%

During the tooling process, the thin wall yielding rate will affect the carrier yield rate and production line life. Thus alternative can provide better performance and longer life.

4. Tool wear
With the same tooling conditions, alternative Ricocel can reduce more than 30% of tool wear.


 We can also design pallets as per client's requirement. Below information are necessary for the pallet design.
1.2D drawing(.dwg or PDF) or 3D drawing(.STEPor .IGS) of wave solder pallets
2.Gerber file of  PCB bare board+ Loaded PCB sample(PCB board with electronic components)


Technical data sheet

Name	Ricocel ES-3261A Sheet for SMT Pallet/Wave Solder Pallet
Grade	Anti-static
Color	Black
Density(g/cm3)	2.1±0.5
Flexural Strength 3 point support⊥(Mpa)	470
Water Absorption(%)	<0.1
Coefficient of linear Expansion(10-6/k)	11
Thermal Conductivity (w/m0k)	0.4
Maximum Operating Temperature(ºC) 10-20seconds	360
Standard Operating Temperature(ºC)	300
Life Cycles(Times)	>20000
Surface Resistivity(Ω)	10^6-10^9
Thermal Capacity(J/kgk)	960
Modulus of Elasticity (Mpa)	20000
Chemical Resistance	Good
Thickness Available(mm)	3,4,5,6,8,10,12,other thickness available on request
Thickness Tolerance(mm)	±0.1
Flatness Tolerance (For a panel size of 300*300	±0.1
Parallelism(mm)	±0.1
Sheet Size (mm)	1220*2440mm
