| Prod Model: |
TP- packing bag |
| OEM: |
Available |
| Thickness: |
0.1mm, 0.14mm, 0.18mm, 0.2mm, etc |
| Feature: |
Antistatic |
| Material: |
Laminated Material |
| Application: |
Electronics, Industry |
Product Description

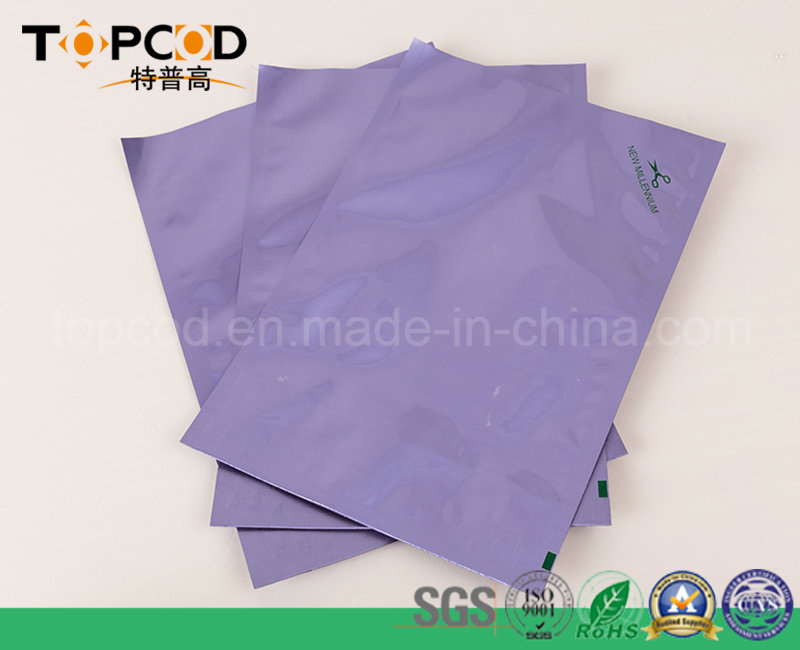

Moisture-proof vacuum bag, also known as Aluminum foil bag, Aluminum-plastic composite vacuum bag, vacuum bag, moisture-proof bag, using imported high quality raw materials formed a production by automatic assembly line, the bag with a standard of moisture-proof logo, has six functions of anti-static, resistance of the electromagnetic interference and moisture proof, high barrier, with good puncture ability of water proof and oxygen proof. The bag should passed the GB & ASTM test and satisfied the strictest environmental protection standard of packing materials in EU and North America. It suitable for the electronics packing that has the requirement of moisture proof. Surface resistance is 108-1010Ω, static release time is less than 0.05 seconds.
Moisture-proof vacuum bag can protect electrostatic sensitive components from potential damage. Its special four-layer structure can create such effect as an inductive cover to separate the goods inside the static field. Besides, the innermost layer is made up of polyethylene that can prevent the static inside the bag, this heat-sealing bag is transparent, so that we can identify the internal items from the outside.
Feature
With excellent performance of anti-static, moisture proof and electrostatic shielding, high mechanization degree and heat sealability.
The size of product is not restricted, can be customized the packing bag according to customer's requirements of different size and style. There are many kinds of aluminum-plastic composite packaging like flat bags, three-dimensional bags, accordion bags,etc. We will provide bags according to customer's requirements of product's shape. In strict accordance with the standards of GB/T 1037-1988, GB/T 1038-2000, MIL-B-81705-C for the production.
Material
| Thickness | 140±10μm (Total thickness of layer of glue and static is 5-10μm) Z |
| Physical properties | Material | Parameters |
| Lay 1 | Polyester (PET) | 12μm |
| Lay 2 | Aluminum foil (AL) | 7μm |
| Lay 3 | Nylon (NY) | 15μm |
| Lay 4 | Polyethylene (PE) | 100μm |
Anti-static &moisture proof bag technical specification
| No. | Test item | Technical requirements | Test standard |
| 1 | Performance of
Anti-static | 1x105Ω1x105ΩMetal layer<1x100Ω | ANSI/ESD STM 11.1 |
| Friction voltage: <100V | ESD ADV 11.2 |
| 2 | Electrostatic shielding | Remanent shield voltage: <20V | EIA 541 |
| 3 | EMI Attenuation | >60 dB | MIL-PRF-81705 |
| 4 | Life time | After using 1 year, still meet the requirements of No. 2/3/4 | MIL-PRF-81705 |
| 5 | Structure | PET/ AL/ NY/ PE | |
| 6 | Thickness | > 0.14 mm | |
| 7 | Size | Refer to drawing's marks | |
| 8 | Heat-seal strength | > 30N/ 15mm | |
| 9 | Tensile strength (vertical and horizontal direction) | Vertical >75N/ 15mm
Horizontal >85N/ 15mm | |
| 10 | Heat-seal condition | Temperature: 300-400F
Time: 0.6-4.5 seconds
Pressure: 30-70 PSI | |
| 11 | Peel strength | >3.0N/ 15mm | |
| 12 | Puncture resistance | >100N | MIL-STD-3010 |
| 13 | Water vapor permeance | J-STD-033 0.002mg/100 in2 /24h | ASTM F 1249-13 |
Application
Mainly applicable to all kinds of packing of PC Board, electronic components, modems, CD-Rom, etc.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Foshan Shunde TOPCOD Industrial Co., Ltd. Was founded in 2002. Specializing in various of environmental desiccant, humidity indicator card, Aluminum foil bag and other types of packing material.
TOPCOD has the most advanced and highest level of production lines. Also it is the first one of manufacture who has the humidity indicator card machinery and mechanized production line of moisture- proof bag in China. It has the first class and professional technical team and high precise testing equipment to pass the ISO9001: 2000. The products passed the highest standard test SIMT, the products quality meet the MIL-D-346E, DIN55473, SGS and RoHS standards.
Now, TOPCOD has a good reputation in the industry, Honda, Panasonic, Sony and many other famous companies are cooperate with us. TOPCOD products are sold to all over the world and got the good feedback.
In the future, TOPCOD will put more time and effort in developing products and improving the quality, expanding the market, protecting environment and providing better service for customers. Hope we can cooperate with more customers for mutual development and benefits for a win-win situation.
