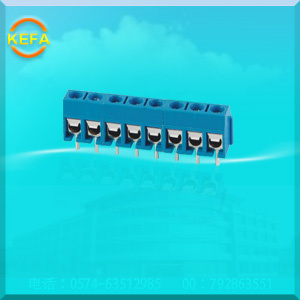

Euro Type PCB Screw Terminal Block Connectors Kf301-5.0

Euro Type PCB Screw Terminal Block Connectors Kf301-5.0
Price: US $ 0.02/Piece
Trade Terms: FOB,CFR,FCA
Min Order: 1000/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: KF301-5.0
Pitch: 5.0mm
Color: Blue
Poles: 2p-24p
Rated Voltage: 300V
Rated Current: 10A
Application: Computer
Environmental Protection: General
Connection Mode: In-Line Connector
Shape: Round
Contact Termination Form: Screws Fixed
Brand: Kefa

Product Description

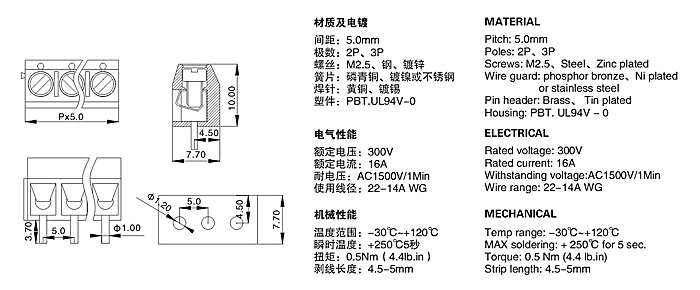

KF301-5.0

Material

Pitch:5.0mm
Poles:2P,3P
Pin header:Tin-plated brass
Wire guard:Ni-plated phosphor bronze , or Stainless steel
Housing:PBT.UL94V-0


Electrical

Rated voltage:300V
Rated current:16A
Withstanding voltage:AC2000V/1Min
Wire range:22-14AWG

Mechanical

Temperature range:-30deg to +120deg
Max soldering:+250deg for 5 sec.
Torque:0.4Nm(3.5 lb.in)
Strip length:4.5-5mm









Cixi Kefa Electronics Co., Ltd is a manufacturer Founded in 1990 which is a new products development, mass-producing and branding sales' electronic components company, specializing in Terminal block, connectors and precision moulds.

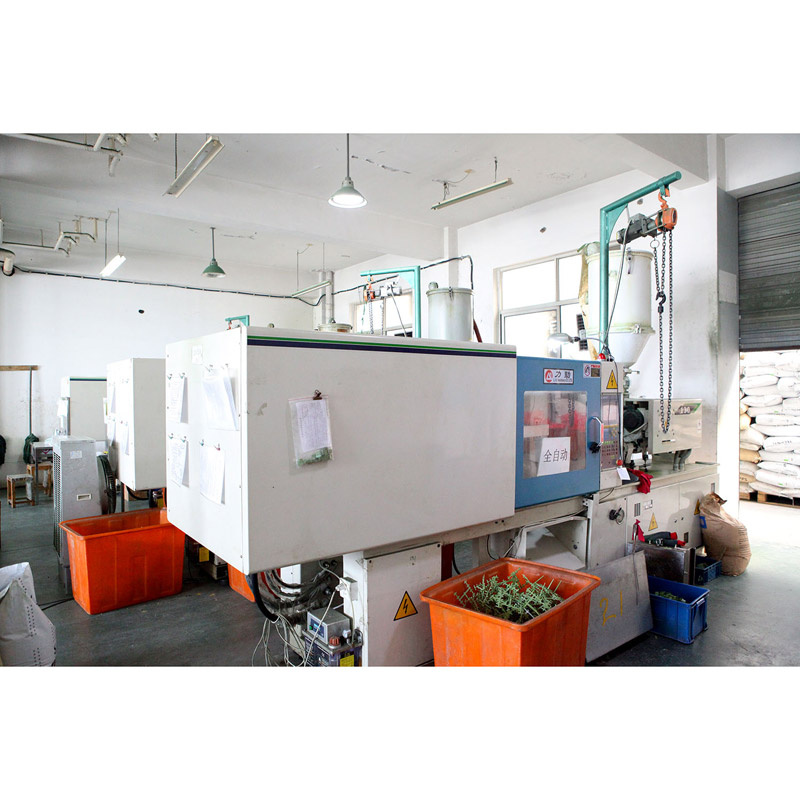

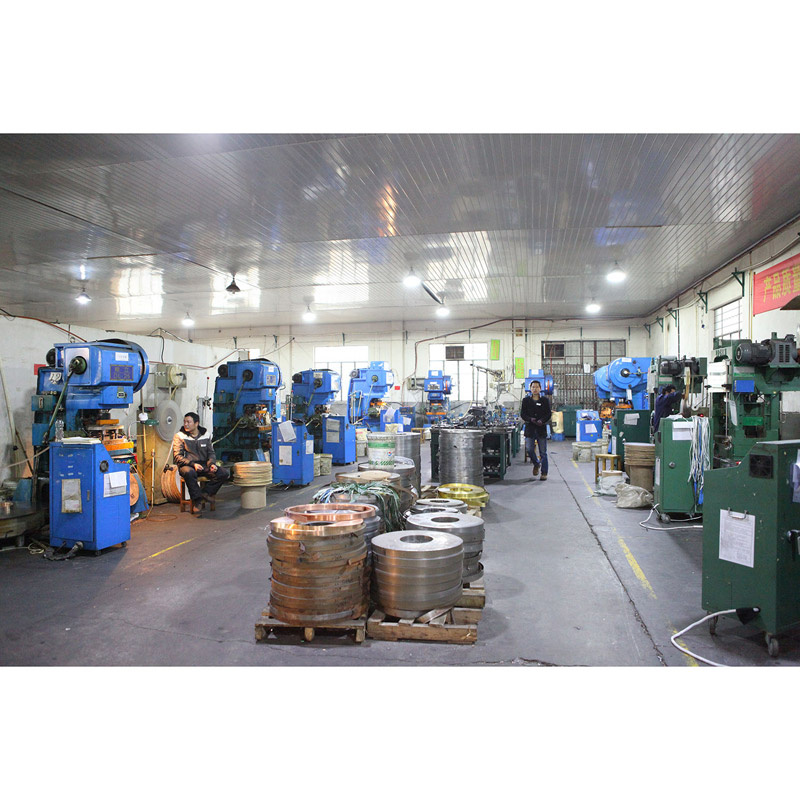

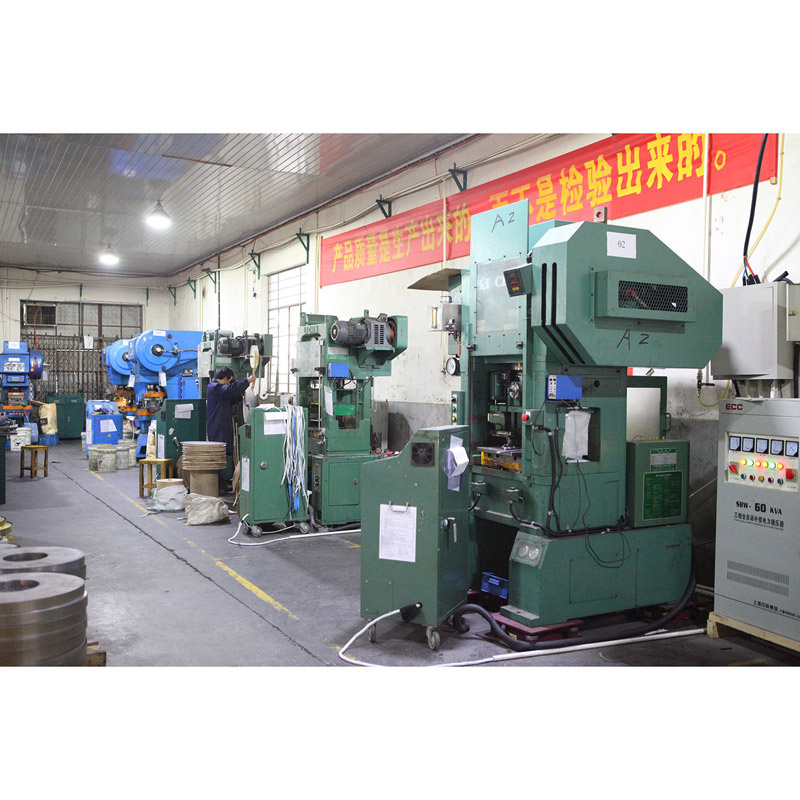

Kefa covers an area of 10000sqms with a building area of 1500sqms, having more than 500 employees, including research and development staff 80.Kefa have established a series of strong departments, like R&D center, Mould workshop, Auto-tapping and Auto assembly.Our R&D center is equipped with advanced CIMS system, Mould workshop equipped with hundreds of high precision devices, like Mitsubishi, etc.To maintain and enhance the workmanship of precise injection, punching, die casting, and cutting.Meanwhile to upgrade the competitiveness in keeping the quality, cost reduction from Computerize working and auto production artwork.

We owned professional laboratory acknowledged by VDE, UL.Our factory have been granted ISO9001, ISO14001 management system certification and we have developed more than 400 types and 5000 specifications of products, our products have been approved by CE, TUV, RoHS, CQC, CB, UL and VDE.We well cooperating with more than 1000 clients in the world, some are the top of world 500 enterprises.

The company pays more attention on the innovation management, and the tenet of the company lies in creating a harmonious situation with the related people and things.Self-discipline and social commitment would embrace everything.
