Euro Type Terminal Blocks

Name: Euro Type Terminal Blocks
Brand: all-electronics-online.com
SKU: 689442015
Availability: InStock
Rating: 4.3 (115 reviews)

Price:	US $ 0.38-0.42/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Application:	PCB
Environmental Protection:	General
Connection Mode:	Push-Pull Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Antenk

Product Description

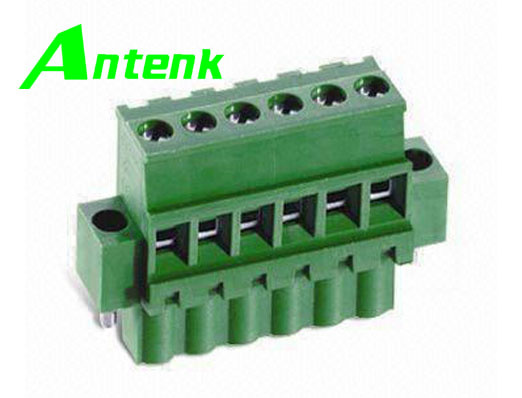

5.00mm/0.197-inch Pitch Pluggable Terminal Block with Flanges and 2 to 22 Poles
Poles: 2 to 22
Rated voltages:
cUL: 300V AC
VDE: 400V AC
Rating current: 16A
Wire size:
cUL: 24 to 12AWG
VDE: 0.2 to 4mm2
Housing material: Polyamide 66 (UL94V-0)
Cage clamp: Brass, tin-plated
Contact: Phosphor bronze, tin-plated
Screw size: M2.6, steel and nickel-plated
Operating temperatures: -40 to +105° C
Torque: 7lb/inch

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
