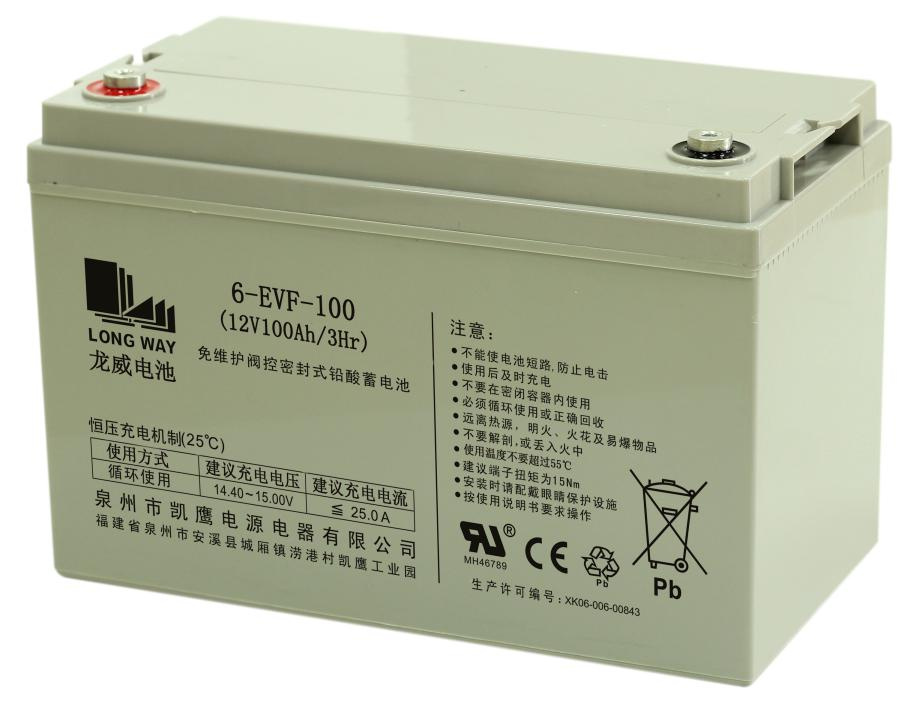

EV12-100 AGM Battery Used for Old Scooter
| Price: |
US $ 99/Piece |
| Min Order: |
35/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
6-EVF-100(12V100AH/3HR) |
| Operating Temperature: |
-20c~50c |
| Design Time: |
10-12 Years |
| Separator: |
AGM |
| Charge Voltage (Cycle): |
2.40~2.50V |
| Container Material: |
ABS(UL94-Hb) *Flammability Resistance of (UL94-V0) |
| Material Lead: |
#1 Lead Top Quality in China |
| Terminal: |
Nb or B |
| Color: |
Grey or Black |
| Self Discharge: |
Less Than 3% Per Month |
| Certificate: |
ISO, UL, Ce |
| Type: |
Lead-Acid Batteries |
| Usage: |
Golf Cart |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
EV12-100 AGM battery used for old scooterLONG WAY 6-EVF-100 is one of the Deep Cycle series of Kaiying Power Supply & Electrical Equip
Co.,Ltd.The series adopt new materiel,new technology,new process,with higher weight ratio of
energy and good resistance to vibration performance ,a good consistency,high charge rate,deep
discharge recovery,low self discharge,sealed and maintenance free.It is quiet suitable for using as
electrical system of electric road vehicles, applications widely in low speed electric vehicles,golf cart,
travel car,old scooter,electrical wheel chair,electric sanitation vehicles and police patrol car etc.
Deep Cycle SeriesLONGWAY Deep Cycle series batteries(DC Type, "DC" behind the model name stands for deep-cycle application) are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle(deep cycle). LONGWAY Deep Cycle battery uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, which allows for a much longer life in deep cycle applications. | Golf car series |
| Battery Model | Nominal Voltage (V) | Nominal Capacity (AH) 3HR | Length±1 | Width±1 | Height±1 | Total Height±2 | Weight(±3%) | Terminal |
| In | mm | In | mm | In | mm | In | mm | lbs | Kg | Type | Position |
| 6FM70EV | 12 | 70 | 10.24 | 260 | 6.61 | 168 | 8.19 | 208 | 8.35 | 212 | 55.1 | 25.0 | F10 | C |
| 6EM80EV | 12 | 80 | 10.24 | 260 | 6.61 | 168 | 8.19 | 208 | 8.35 | 212 | 57.3 | 26.0 | F10 | C |
| 6FM100EV | 12 | 100 | 12.99 | 330 | 6.81 | 173 | 8.54 | 217 | 8.70 | 221 | 79.4 | 36.0 | F13 | C |
| 6FM120EV | 12 | 120 | 15.94 | 405 | 6.81 | 173 | 8.27 | 210 | 9.33 | 237 | 94.8 | 43.0 | F13 | C |
| 6FM135EV | 12 | 135 | 13.43 | 341 | 6.77 | 172 | 11.06 | 281 | 11.22 | 285 | 101.4 | 46.0 | F13 | C |
| 6FM150EV | 12 | 150 | 18.90 | 480 | 6.73 | 171 | 9.33 | 237 | 9.33 | 237 | 114.6 | 52.0 | F13 | C |
| 6FM180EV | 12 | 180 | 20.94 | 532 | 8.15 | 207 | 8.46 | 215 | 8.62 | 219 | 136.7 | 62.0 | F13 | C |
| 6FM200EV | 12 | 200 | 20.55 | 522 | 9.45 | 240 | 8.62 | 219 | 8.78 | 223 | 154.3 | 70.0 | F13 | C |
| 3FM150EV | 6 | 150 | 10.24 | 260 | 7.09 | 180 | 9.69 | 246 | 10.24 | 260 | 66.1 | 30.0 | F12 | B |
| 3FM190EV | 6 | 190 | 9.61 | 244 | 7.36 | 187 | 10.91 | 277 | 10.91 | 277 | 76.1 | 34.5 | F12 | A |
| 3FM200EV | 6 | 200 | 10.28 | 261 | 7.09 | 180 | 10.71 | 272 | 10.87 | 276 | 79.4 | 36.0 | F12 | B |
| 4FM150EV | 8 | 150 | 10.24 | 260 | 7.13 | 181 | 11.02 | 280 | 11.18 | 284 | 77.2 | 35.0 | F12 | D |
General Features
Environmentally friendly
High Reliability and Good Quality
Deep Discharge Recovery
High Power Density
Long Service Life, in Float or Cycle
International Standard, JIS and DIN
Applications
Solar Systems
Wheelchair
Golf Cart
Marine Equipment
Power Station
Railway Systems
Telecom Systems
Cable TV Systems
Emergency Power System
If get interest, just contact me freely.
EV12-100 AGM battery used for old scooter
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
