| Prod Model: |
HLRB-04Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Direct Cooling |
| Function: |
Cooling & Heating |
| Cooling Capacity: |
10.8-67kw |
| Working Temp: |
-25 to 43 Deg C |
| Heating Capacity: |
11.9-71kw |
| Refrigerant: |
R404A |
| Power Supply: |
220V-380V |
| Air Direction: |
Side or Top |
| Water Pump: |
Inbuit Pump |
| Hot Water: |
with Hot Water |
Product Description
EVI EVI Low Temperature Air Source Heat PumpProduct Applications1.Adopt ultralow temperature compressor,environmental friendly refrigerant R404A.
Under low temperature condition,unit heating EER is 50%-80% higher than common unit.
Heacting capacity reduce little when ambient temperature drop sharply, so can maintain a good heating effect.
2.Ultralow temperature air source heat pump are commonly used in Europe,
this pump have cooling,heating ,provide hot(sanitary) water functions.
Like Germany Siemens heat pump, Dimplex heat pump,Sweden IVT pup.
3.Hot (sanitary)water is priority when cooling ,heating,or standby model.
4.Adopt world famous fittings,unit is small, compact, can hang on a wall or placed in the balcony.
5.Unit have remote wire controller,user can control in the room.
Product Parameter | Model HLRB~ | 04Y | 05Y | 08Y | 10Y | 15Y | 20Y | 25Y |
| Cooling Capacity (KW) | Ambient air temp 35 ºC | 10.8 | 13.5 | 20 | 26 | 35.3 | 53.7 | 67 |
| | Ambient air temp 7ºC | 11.9 | 15.3 | 22.5 | 29.6 | 38.8 | 60 | 71 |
| Heating Capacity (KW) | Ambient air temp -7ºC | 8.8 | 11 | 16 | 21.3 | 25.4 | 43.8 | 49 |
| | Ambient air temp -15ºC | 7 | 9.1 | 13.5 | 17.8 | 21 | 36 | 42 |
| Comp. Input Power (KW) | 3.7 | 4.7 | 6.5 | 9 | 11.8 | 18.6 | 23.7 |
| Reclaimed Water Flow (L/h) | 350 | 420 | 620 | 810 | 1100 | 1700 | 2200 |
| Power Supply | 220V/ 1ph/ 50HZ, 380V/ 3ph/ 50Hz | 380V/ 3ph/ 50Hz |
| Refrigerant | R404A |
| Number of Refrigeration Circuit | 1 | 2 | 4 |
| Water pump | Power (KW) | 0.37 | 0.37 | 0.75 | 0.75 | 1.1 | - | - |
| Lift (M) | 20 | 18 | 18 | 18 | 2.4 | - | - |
| Flow (L/S) | 0.48 | 0.6 | 1 | 1.26 | 1.63 | 2.52 | 3.15 |
| Evaporator | High Efficient Crimped Coaxial Casing |
| Condenser | Ripple Aluminum Fins Around Copper Pipe |
| Air Direction | Side | Top |
| Ambient Air Temp. Range ºC | minus 20ºC~50ºC |
| Pipe Size (inch) | 1" | 1.25" | 2.5" |
| Weight(KG) | 130 | 180 | 240 | 280 | 360 | 630 | 780 |
| Dimension L*W*H (mm) | 1050*410*960 | 1050*430*1080 | 1420*725*1365 | 1484*730*1060 | 1420*725*1325 | 1380*1380*1660 | 2010*980*1850 |

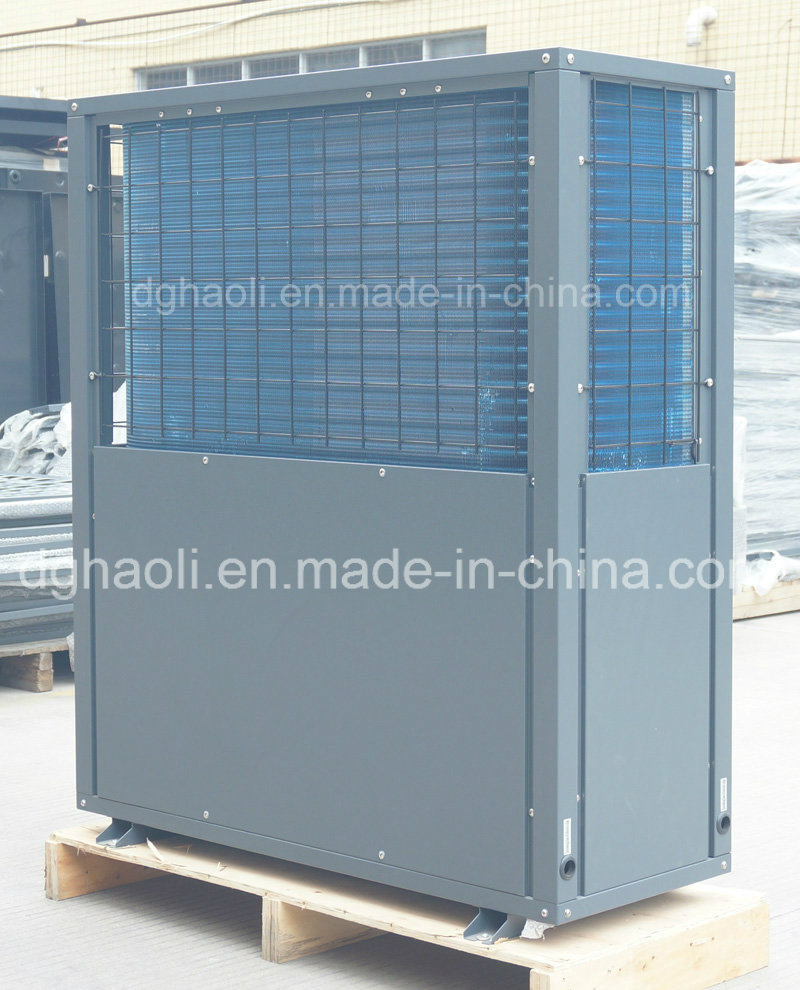

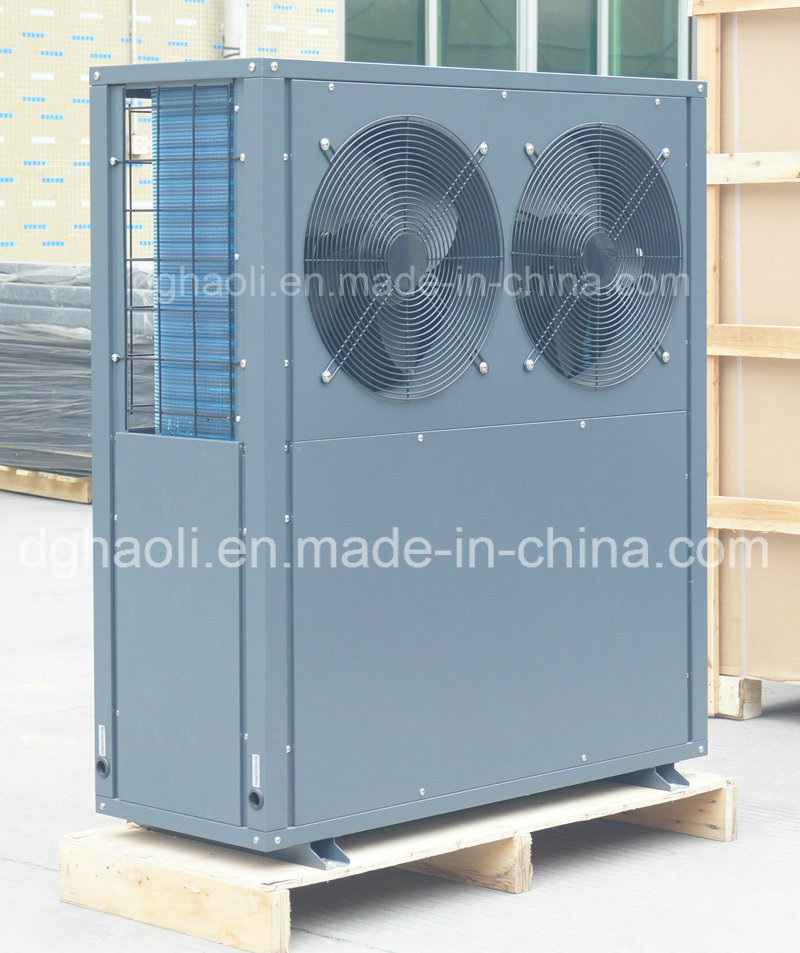

Product Show
Delivery & Payment1. Packing: Standard Plywood Package.
2. Delivery Day: 25 days after deposit is confirmed.
3. Delivery term: CIF,FOB or CNF EX-Work are welcomed.
4. Payment term: T/T, 30% deposit, 70% before delivery; Or 100% Irrevocable non-transferred L/C at sight.
5. Warranty: Warranty for 12 months from the date of shipment from the factory, whichever comes first.
6. Validity: 20 days.
7. Payment currency: USD or EX-Work CNY.FAQQ: What information do you need to provide in order to get a quotation?
A: Generally, for industrial water chiller we need to know the following information in order to suggest the suitable water chiller models and for providing the quotation.
1) Air cooled or water cooled?
2) Cooling Capacity / Heating Capacity.
3) Power Supply.
4) Refrigerant.
5) Chilled water outlet temperature / Hot water temperature
6) Order Quantity etc.
Q: Can I have a samples for testing before ordering products?
A: Yes, you can.
We sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.
Q: What is the warranty of products?
A: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year.
