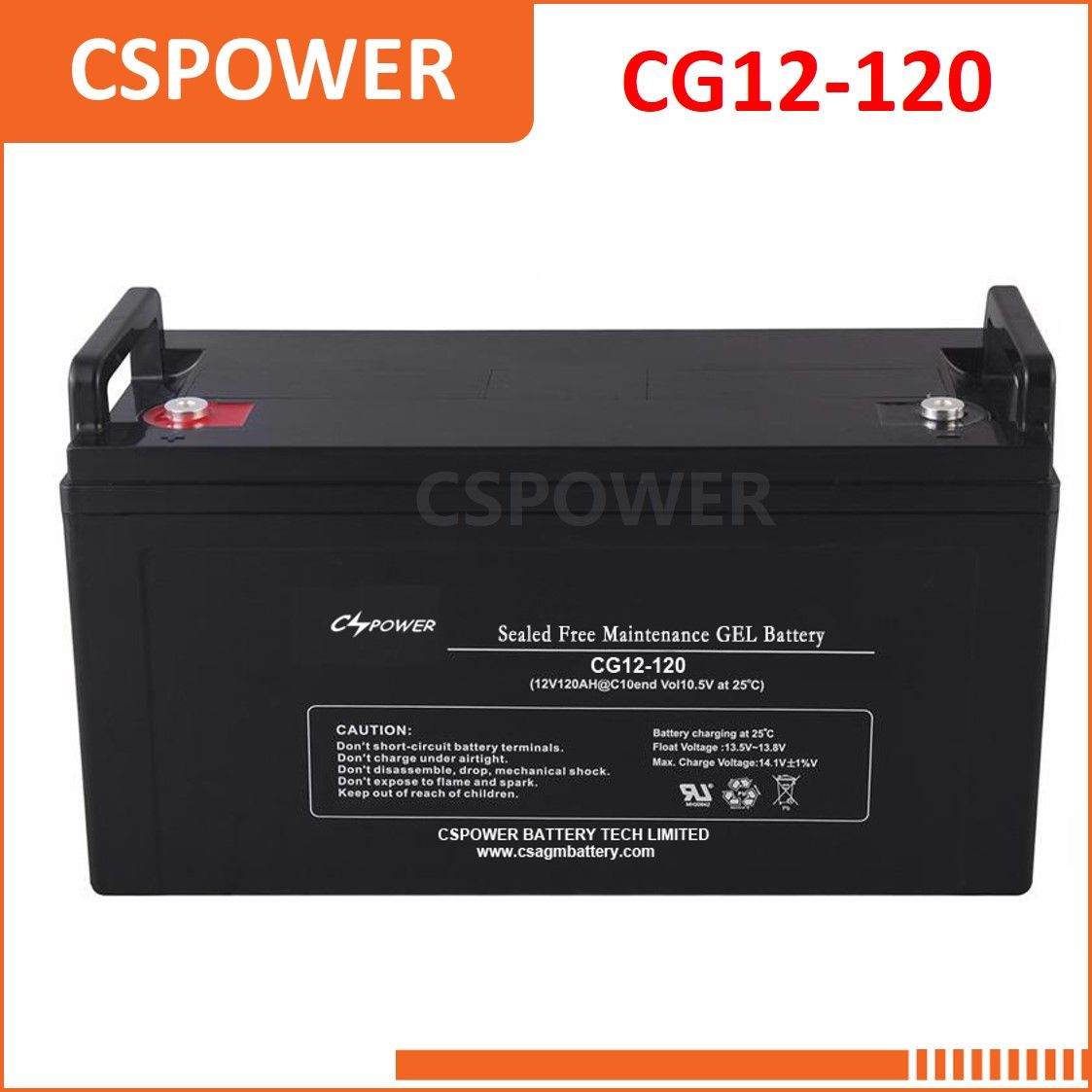

| Prod Model: |
CG12-120 |
| Size: |
407*174*209mm |
| Voltage: |
12V |
| Capacity: |
120ah |
| Weight: |
36.5kg |
| Warranty: |
3 Years |
| Expected Cycle Time: |
10-12years |
| Delivery Time: |
7days |
| Brand: |
Cspower/OEM |
| Export Markets: |
Global |
| Model: |
Gel Battery 12V |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Type: |
Gel Battery |
| Shape: |
Gel |
Product Description
12V120AH Solar Deep Cycle Gel Battery Sealed Free Maintenance Storage Battery Solar Gel accumulator Gel Battery 3years warranty
Solar GEL Battery series Detailed Product Description
Gel Battery solar Gel battery accumulator shows some distinctive advantages over flooded battery or AGM battery, such as super thermal stability, high deep discharge capability, good recovery from deep discharge.
Even if Gel battery is left discharged for three days, it will recover to 100% of capacity.
With the above-mentioned advantages, the gel battery has long service life, specially suitable for motive power applications, such as golf trailer, sruubber, folklift, etc.
The deep discharge cycles increased 50% as compared with the AGM battery.
Solar Deep Cycle Gel Battery 12V120ah 3years warranty Characteristics
1. Sealed free maintenance deep cycle Gel battery 12V100Ah 120Ah 200Ah 250Ah 300Ah
2. GEL solar battery
3. OEM/ODM free charge
4. Warranty 3years free replacement
GEL Solar BatteryGel accumulator 12V120Ah Advanced Features
1. Environmentally friendly
2. Completely Maintenance-Free
3. Non-Spillable construction design.
4. Wide Operating Temperature Range(-20° C~+60° C)
5. Longer Life(20years designed life)
6. Explosion Proof
7. Valve Regulated & High Discharge Rate Capability
8. Low Self Discharge
9. Independent of Position
10. Ease of Shipment
11. No need of balanced charge or boost
12. No Memory
12V120ah Solar Gel Accumulator Gel Battery Applicition
1, Solar & Wind power systems
2, Fire & security systems
3, Uninterruptible power supplies
4, Golf cart, Electric vehicle
5, Electric powered bicycle and wheelchairs
6, Marine equipment
7, Communication equipment
8, Power tools
9, Telecommunication systems
Why choose us:
1. Door to door service.
2. Low cost raw material with high quality. We have own plates factory, can manufacture plates by ourselves.
3. Independent designer with more than 10 years design experience.
4. Chief engineers with more than 20years experience in battery field.
5. Product with the international market step.
6. We focus on quality, never use faulse gel and recycle lead.
7. All production lines in our factory are automatic and imported from Germany.
8. Our products are exported to Middle East, Europe, France, Canada, Japan, Korea and else.
9. We would like stand with you in same line to open market with long term business.
Our goal
Creative.
Excellent quality.
Top service.
Stand same line with customer.
Long term business.
Welcome to ask me for price reference on specific models and quantity of batteries at any time.
We are sure any your question will get our prompt reply in 24 hours: )
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 20hrs/25 | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CG12-33 | 12 | 33 | 10.4 | 22.9 | 196 | 7.70 | 131 | 5.16 | 155 | 6.10 | 170 | 6.69 | T9/T16 |
| CG12-38 | 12 | 38 | 12.2 | 26.84 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CG12-50 | 12 | 50 | 16.2 | 35.6 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/T16 |
| CG12-55 | 12 | 55 | 16.2 | 35.6 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/T16 |
| CG12-65 | 12 | 65 | 20,5 | 45.1 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CG12-70 | 12 | 70 | 22.0 | 48.4 | 260 | 10.2 | 169 | 6.65 | 211 | 8.30 | 215 | 8.46 | T16 |
| CG12-80 | 12 | 80 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.02 | T14 |
| CG12-85 | 12 | 85 | 29 | 64.10 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.21 | T16A/T8 |
| CG12-100 | 12 | 100 | 30 | 66 | 331 | 13.0 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CG12-120 | 12 | 120 | 36.5 | 80.3 | 407 | 16.0 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CG12-134 | 12 | 134 | 41 | 90.2 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 283 | 11.14 | T9/T20 |
| CG12-150 | 12 | 150 | 42.5 | 93.5 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CG12-180 | 12 | 180 | 56.5 | 124 | 530 | 20.9 | 209 | 8.23 | 214 | 8.43 | 240 | 9.45 | T9 |
| CG12-200 | 12 | 200 | 60 | 132 | 522 | 20.57 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CG12-230 | 12 | 230 | 64 | 140.8 | 522 | 20.6 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T9 |
| CG12-250 | 12 | 250 | 68 | 150 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
| CG2-100 | 2 | 100 | 6.4 | 14.11 | 171 | 6.73 | 72 | 2.83 | 206 | 8.11 | 227 | 8.94 | T16 |
| CG2-150 | 2 | 150 | 9.0 | 19.8 | 172 | 6.77 | 102 | 4.02 | 207 | 8.15 | 227 | 8.94 | T6 |
| CG2-200 | 2 | 200 | 14 | 30.9 | 172 | 6.77 | 111 | 4.37 | 329 | 13.0 | 356 | 14.0 | T20 |
| CG2-300 | 2 | 300 | 20.5 | 45.2 | 171 | 6.70 | 151 | 5.94 | 330 | 13.0 | 366 | 14.4 | T20 |
| CG2-400 | 2 | 400 | 27.5 | 60.6 | 210 | 8.27 | 176 | 6.93 | 329 | 13.0 | 366 | 14.4 | T20 |
| CG2-500 | 2 | 500 | 33.5 | 73.9 | 241 | 9.5 | 172 | 6.8 | 331 | 13.0 | 366 | 14.4 | T20 |
| CG2-600 | 2 | 600 | 41 | 90.4 | 301 | 11.9 | 175 | 6.89 | 331 | 13.0 | 366 | 14.4 | T20 |
| CG2-800 | 2 | 800 | 55 | 121.3 | 411 | 16.1 | 175 | 6.89 | 330 | 13 | 356 | 14 | T20 |
| CG2-1000 | 2 | 1000 | 66.5 | 146.6 | 475 | 18.7 | 175 | 6.89 | 330 | 12.99 | 356 | 14.02 | T20 |
| CG2-1500 | 2 | 1500 | 103.5 | 228.2 | 401 | 15.8 | 351 | 13.8 | 342 | 13.5 | 369 | 14.5 | T20 |
| CG2-2000 | 2 | 2000 | 136 | 299.8 | 491 | 19.3 | 351 | 13.8 | 343 | 13.5 | 369 | 14.5 | T20 |
| CG2-3000 | 2 | 3000 | 195 | 429 | 710 | 28.0 | 352 | 13.9 | 342 | 13.5 | 369 | 14.5 | T20 |
