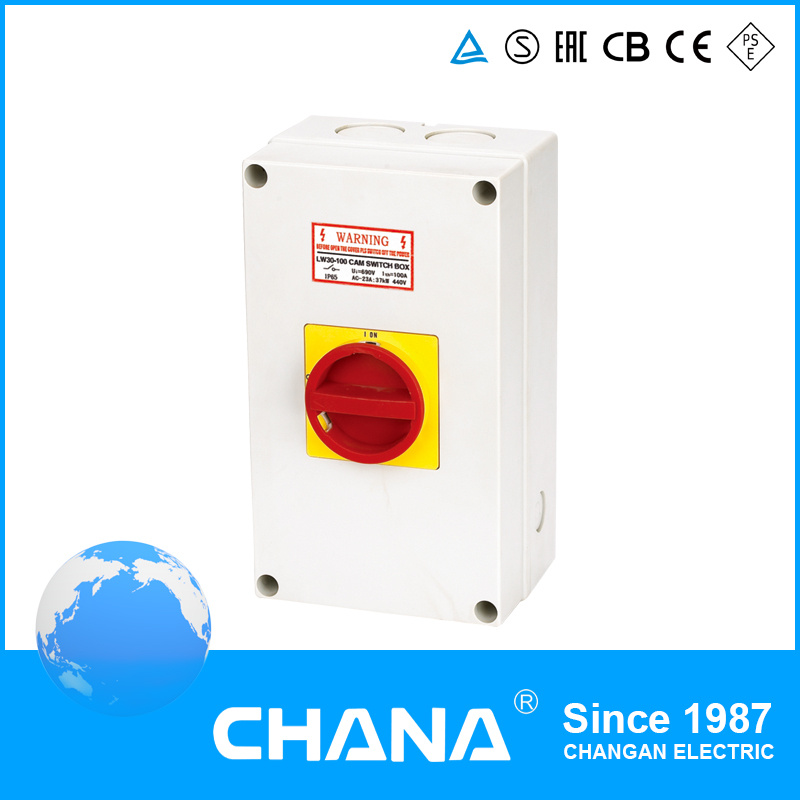

Excellent Lw30-80 Isolation Switch IP65
| Price: |
US $ 20.16-21.78/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
LW30-80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Plastic |
| Poles: |
3/4p |
| Approval: |
Ce |
| Export Market: |
Global |
| Quality: |
AAA |
| Type: |
High-voltage |
| Structure: |
Single-column Disconnector |
| Installation: |
Indoor High-voltage |
| Operation: |
Manual |
| Grounding: |
Double Ground |
| Series: |
Three |
| Run: |
Vertical Rotation |
| Switching Mode: |
Single Throw-in |
| Certification: |
CE |
| Number Of Poles: |
8 Pole |
| Brand: |
Chana |
Product Description
Product Description For Lw30-80Order ProcedurerWhen you order our LW 30 series, we need your data as following:
1). Rated owrking current, for example: LW 30-20
2). Accessorial code, please write it orderly
A) Number of pole: 1- 3P; 2-4P; 3-6P; 4-8P
B) Do you meed additional contacts: 0 without; 1 with
C) Do you need neatral terminal: 0 without; 1 with
D) Do you need earthing terminal: 0 without; 1 with
E) Way of installation: Mounting and fuction1) Panel mounting with padlock
2) Panel mounting
3) With door interlock base mounting
4) With padlock handle/ door interlock base mounting
5). Bullet hole mounting
6) Type of box: 0- without; 1- with
7) Additional function: 0 - without; 1- with multithrow function; 2- with NO/NC auciliary contactSpecification | Description | LW30-25(20) | LW30-32 | LW30-40 | LW30-63 | LW30-80 | LW30-100 |
Rated thermal current
Ith A | 25(20) | 32 | 40 | 63 | 80 | 100 |
| Rated working voltage Ue V | 240 440 | 240 440 | 240 440 | 240 440 | 240 440 | 240 440 |
| Rated value le/Pe | | | | | | |
| AC-21A A/KW | 20/- 20/- | 32/- 32/- | 40/- 40/- | 63/- 63/- | 80/- 80/- | 100/- 100/- |
| AC-22A A/KW | 20/- 20/- | 32/- 32/- | 40/- 40/- | 63/- 63/- | 80/- 80/- | 100/- 100/- |
| AC-23A A/KW | 15/4 15/7.5 | 22/5.5 22/11 | 30/7.5 30/15 | 43/11 43/22 | 57/18.5 57/30 | 70/22 70/37 |
| AC-3 A/KW | 11.7/3 11.7/5.5 | 15/4 15/7.5 | 22/7.5 22/11 | 36/11 36/18.5 | 43/15 43/22 | 57/18.5 57/30 |
| Current type | 50Hz |
| Number of main contact | ON and OFF |
| Frequency | 8 hours per day, 30 timers per hour |
| Mechanism Life | 10000 times/AC-23, 6000 times/AC-3, 2000 times for additional contact. |
Overall and Mounting Dimension(mm)| Description | Dimension (mm) | Installation (mm) |
| A | B | C | K | L | E | F | D1 | D2 |
| LW30-20 | 64 | 42 | 54 | 13.5 | 61 | 48 | 48 | φ10 | φ4.2 |
| LW30-25 | 64 | 42 | 54 | 13.5 | 61 | 48 | 48 | φ10 | φ4.2 |
| LW30-32 | 64 | 42 | 54 | 13.5 | 61 | 48 | 48 | φ10 | φ4.2 |
| LW30-40 | 64 | 50 | 64 | 16 | 67 | 48 | 48 | φ10 | φ4.2 |
| LW30-63 | 64 | 50 | 64 | 16 | 67 | 48 | 48 | φ10 | φ4.2 |
| LW30-80 | 64 | 70 | 80 | 22.5 | 82 | 48 | 48 | φ10 | φ4.2 |
| LW30-100 | 64 | 70 | 80 | 22.5 | 82 | 48 | 48 | φ10 | φ4.2 |
Dimension | Description | Dimension (mm) | Installation (mm) |
| D3 | D4 | M | N | P | A1 | A2 | B | D2 |
| LW30-20 | ф23 | ф19 | 85 | 83 | 160 | 150 | -- | -- | φ4.2 |
| LW30-25 | ф23 | ф19 | 85 | 83 | 160 | 150 | -- | -- | φ4.2 |
| LW30-32 | ф23 | ф19 | 85 | 83 | 160 | 150 | -- | -- | φ4.2 |
| LW30-40 | ф29 | ф23 | 100 | 95 | 190 | 178 | -- | -- | φ4.2 |
| LW30-63 | ф29 | ф23 | 100 | 95 | 190 | 178 | -- | -- | φ4.2 |
| LW30-80 | ф37.5 | ф23 | 144 | 105 | 250 | -- | 229 | 124 | φ4.2 |
| LW30-100 | ф37.5 | ф23 | 144 | 105 | 250 | -- | 229 | 124 | φ4.2 |
Shipping:1). Normally by SEA From NINGBO TO ...
2). Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3). We Provide Drop shipping Service.
4). In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5). Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.Payment:1). We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2) .If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3). L/C also acceptableWarranty:1). We provide 18 months warranty.
2). If the product is defective, please notify us within 10 days of delivery.
3). All products must be returned on their original condition, in order to qualify for a refund or exchange of goodsFAQQ 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.
Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.
Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.
Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.
