Excellent Quality Automatic Sliding Door Motor for Automatic Doors

Name: Excellent Quality Automatic Sliding Door Motor for Automatic Doors
Brand: all-electronics-online.com
SKU: 709770042
Availability: InStock
Rating: 4.5 (82 reviews)

Price:	US $ 60-80/Piece
Trade Terms:	FOB,others
Min Order:	20/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PAD2003 motor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power:	60W
Application:	Commercial
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Certification:	Ce
Brand:	Pad

Product Description

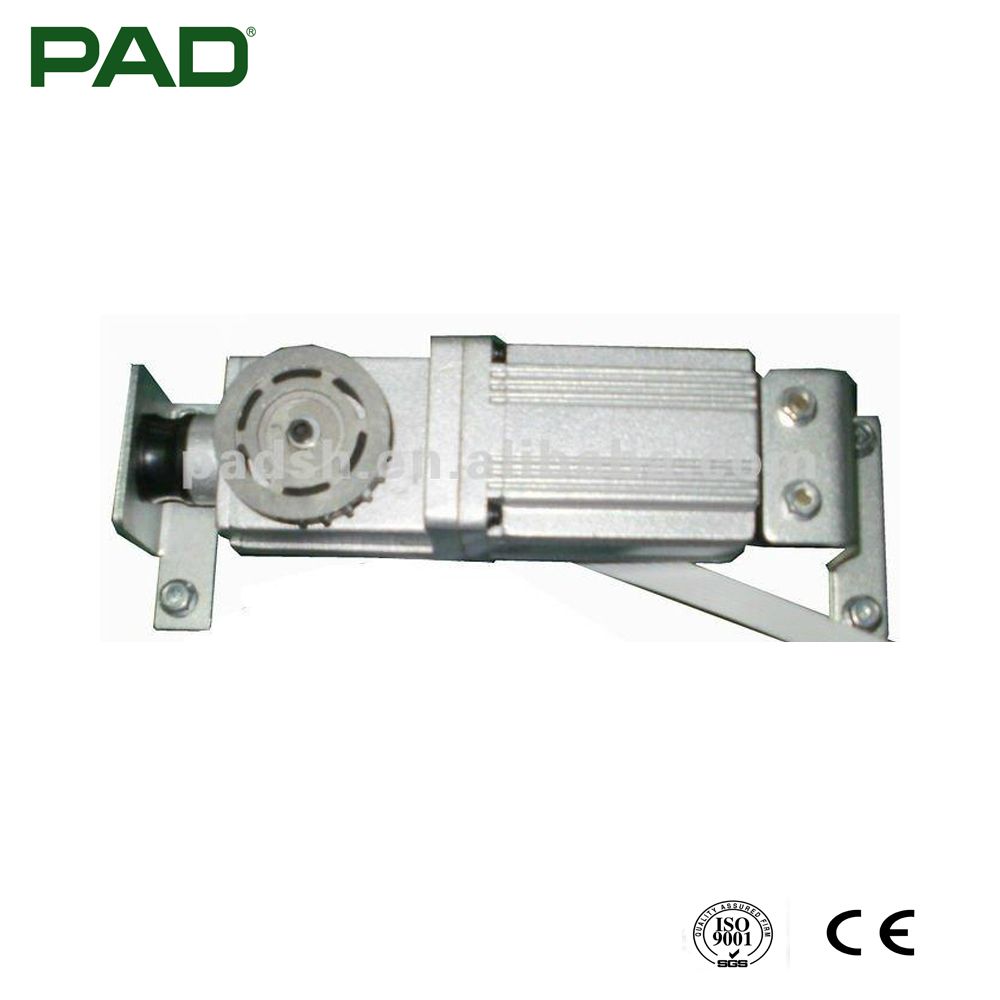

The details of door motor

Rated voltage	DC24v
Rated power rating	60W
Rated speed	3000r/min
Rated torque	0.19n.m
Rated current	4A
Gear ratio	115
Short-time output power	80W
Short-time overload current	5A
Short-time output torque	0.255n.m
Output speed	200r/min
Output torque	2.8n.m
Max torque	3.8n.m

The advanced brushless AC motor supported by intelligent Honeywell software can self-learn the stroke.

Advanced brushless AC motor and the worm-reduction gear are integrated together, with advantageous features such as higher

Efficiency, larger torque and longer life span.

The motor noise is extremely low because of its precise manufacturing technology and direct driving design.

The motor can lock automatically if there is no triggering signal. The powerful closing force keeps the door shut firmly.

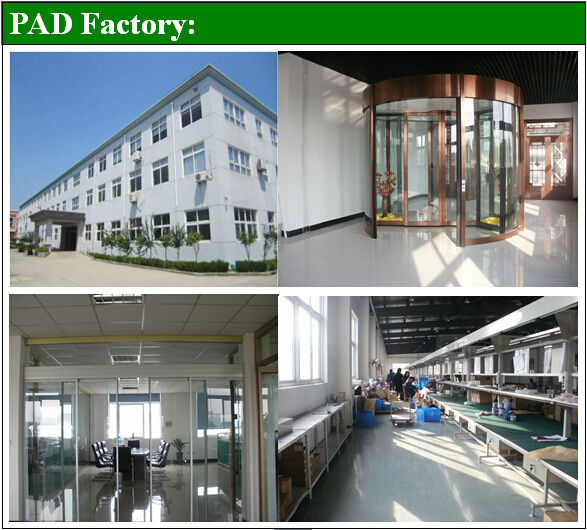

Shanghai PAD Automatic Doors Technology Co., Ltd. is a company (manufacturer) established in 2003, located near the Hongqiao airport, Shanghai, China.

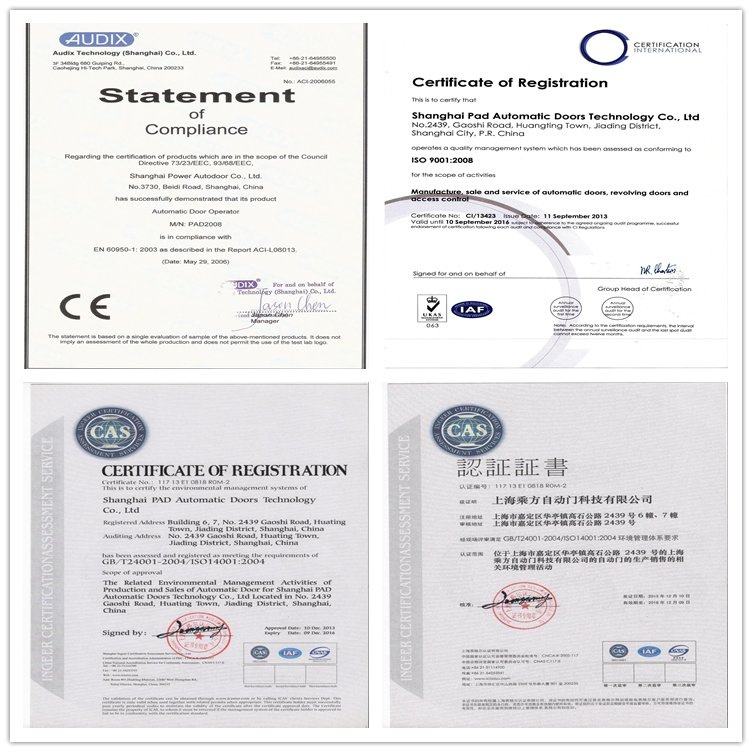

With CE and ISO9001: 2000 certificates, the company integrates Italian automatic technology and Chinese manufacturing advantages, which enables our products to have reliable quality and competitive prices.

Today PAD products are widely adopted in 89 countries or regions around the world, and more and more customers are joining us. For someof them we provide OEM service, and for some more we deliver the goods with PAD as our common brand.

Our main products include:
A. Automatic sliding door operator
B. Automatic revolving door systems.
C. Automatic roller motors.
D. Accesories for autoamtic door industry.

Our products are mainly used in restaurants, hotels, clubs, government buildings, offices, factories, shops, residential areas, military zones, etc.

As the society develops, our products are also progressing with the times. Sincerely hope we can provide our services for more cusotmers around the world.
Welcome you to have a visit to our factory!
