Shenzhen UPSEN Electronic Co., Ltd. >> Excellent Quality No Break Power 1 Phase Online UPS

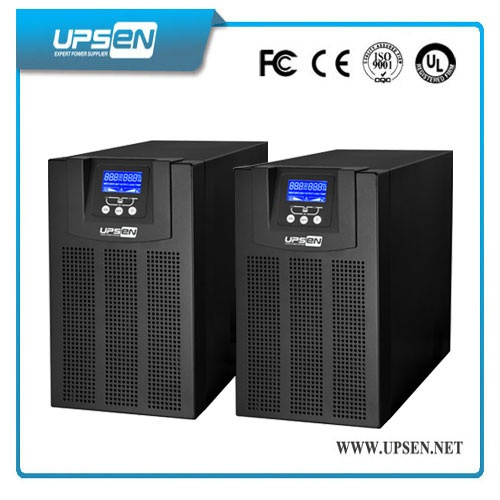

Excellent Quality No Break Power 1 Phase Online UPS

Excellent Quality No Break Power 1 Phase Online UPS
Price: US $ 1-200/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Queen Star Series 1K-3Kva
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

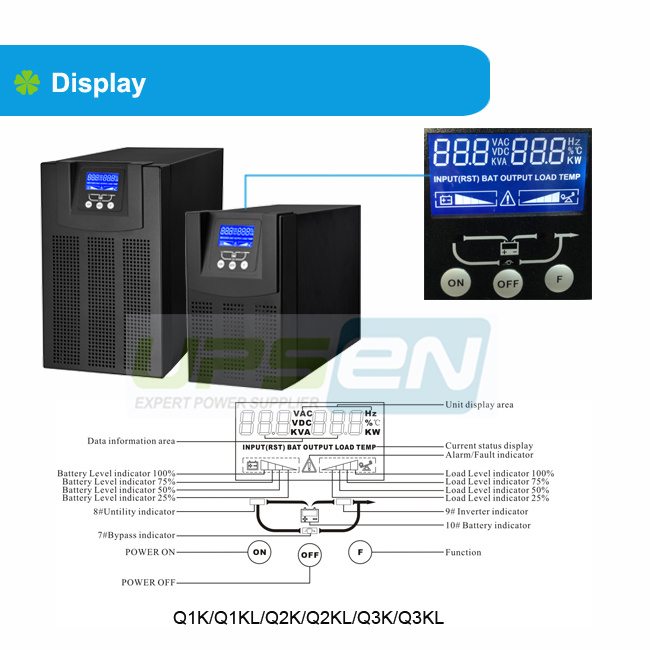

Display: LED and LCD Display
Transfer Time: 0
Power Factor: 0.99
Business Type: Manufacturer
Phase: Single Phase
Type: On-line
Protection: Short Circuit
Brand: Upsen

Product Description

excellent quality no break power 1 phase online ups
Model: High Frequency Online UPS Queen Star Series 1K-3Kva (1ph in/1ph out)

Key Features:
1:Flexible and practical cold start function
2:Good uploading and dynamic performance
3:Active input power factor correction (PFC)
4:Adopt 4 layers PCB, and SMD technology.
5:Intelligent RS232 communication port
6:Double boost and buck AVR for voltage stabilization
7:Advanced no-master-slave parallel technology (optional)
8:Provides intelligent detection for whole process. All power's supply working status, breaker status, and all circuits working status.
9:Intelligent battery management directly checking and setting charge and setting charge and discharge of battery on LCD extends battery life.
10:Advanced IGBT-based the latest rectifier and inverter technology, high input power factor and low output harmonic.

Applications:
Aeronaoutics,Astronautics,Electronic,Telecom,Army Technology,Securities System,Sensitive Electronic Equipment,Remote switching,Control equipment,Communication systems,Portable lights,Alarm systems           ,Power tools,Medical equipment, Electric toys etc.

Technical Specification
MODELQ1KQ1KLQ2KQ2KLQ3KQ3KL
Rated capacity1KVA/800W2KVA/1600W3KVA/2400W
InputVoltage                                  115 - 300Vac
  Frequency                               40-60Hz / 50-70Hz
Power factor                                         0.99
OutputVoltage                               220/230Vac(1±2%)
  FrequencySynchronize with utility power(utility mode); 50 / 60Hz ± 0.2Hz(battery mode)
On-load factor                                         0.8
Overload rating                                125% overload,1min
BatteryTypeValve-control lead acid maintenance-free battery
Back up time> 11min        (half load)External>11min        (half load)External>11min        (half load)External
Rated voltage36V72V96V
Transfer time                                          0
Operating environmentHumidity: 20%-90%, Temperature:0oC-40oC
Size (WxDxH)mm350 x 144 x 229424 x 190 x 328424 x 190 x 328
Net Weight(kg)11.55.722.21026.310
*Specification is subject to change without further notice
