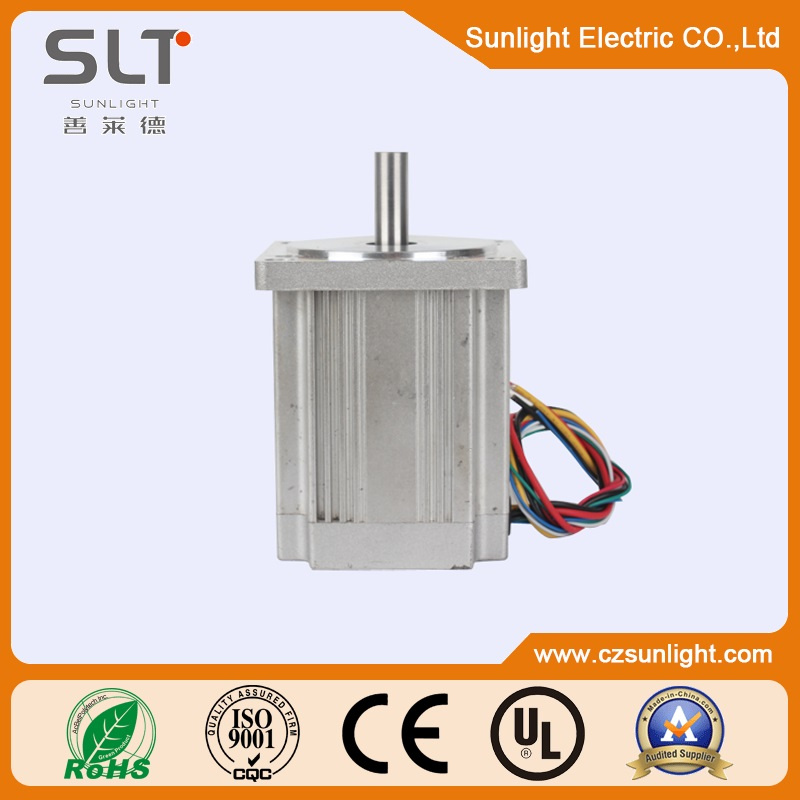

Excited Electrical Brushless DC Motor

Prod Model:	80BLF40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	315V
No Load Speed:	6300rpm
Rated Torque:	0.6n.M
Rated Speed:	5500rpm
Rated Power:	400W
Rated Current:	1.6A
Peak Torque:	1.8n.M
Back-Emf Constant:	34V/Krpm
Weight:	2.2kg
Length:	105mm
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Brand:	Slt

Product Description

Parameter:
1,Voltage:315V
2,No load speed:6300RPM
3,Rated torque:0.6N.m
4,Rated Speed:5500RPM
5,Rated power:400W
6,Rated Current:1.6A
7,Peak torque:1.8N.m
8,Weight:2.2kg

Advantages of  Excited Electrical Brushless DC Motor

A: Save cost, price is low
B: Better reliability.
C: Low energy consumption.
D: Speed is steady.
E: Easy to run and adjust the speed.
F:Small size, easy to carry.
G: Application range is super wide

Specification of Excited Electrical Brushless DC Motor

80BLF-Brushless DC Motor
Technique Specification
Model				SLT80BLF40
Number of poles				4
Voltage		V		315
No load speed		RPM		6300
Rated torque		N.m		0.6
Rated Speed		RPM		5500
Rated power		W		400
Rated Current		A		1.6
Peak torque		N.m		1.8
Back-EMF constant		V/KRPM		34
Weight		Kg		2.2
Length		mm		105

Applications of Excited Electrical Brushless DC Motor

A:Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B.Home Appliance ( Electric cooker, Electric mop and other products.)
C.Medical equipment and beauty products.
D.Office products (such as printer, scanner......)
E. Other Fields.



Product  Structure

1,Casing bearing;
2,totor;
3,magnet shoe
4,brush group
5,diverter
6,terminal
7,end cap bearing
8,end cover
9,cabinet
10,shaft extension


About sunlight:
1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional knowledge of assembly.
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)
Asian( Korea, Japan...)



Packaging & Shipping

1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required



FAQ

Q1,Can I have a sample for testing?
A: Yes,of courses we can supply the sample for you !

Q2,I need 12v motor ,is that possible for you ?
A: we can make the voltage according to your requirement , like, 6v ,8v ,9v,12v Just tell me the voltage you want to .

Q3:Can I add my logo on the DC motor?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.

Q4:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.

Q5 :Do you have inspection procedures for DC motor?
A:100% self-inspection before packing

Q6:Can we mix the 20ft container?
A: Yes,if the items are meet our min order qty.

Q7:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory


Why choose Sunlight

1,Your client satisfied on the right schedule and quality;
2,You can get good reputation from your market and obtain more orders;
3,Our professional service before and after sale;
4,The reasonable and competitive price;
5,Service is excellent.Any questions from you are welcome and will be replied in 24 hours.
6,Delivery on time
