| Prod Model: |
szh-PCB1158 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Base Materials: |
Fr-4, Fr-1, Cem-1, Cem-3, Aluminum |
| Copper Thickness: |
0.5oz-12 Oz |
| Min. Hole Size: |
0.20 Mm |
| Min. Line Width: |
0.10 Mm |
| Min. Line Spacing: |
0.10 Mm |
| Surface Finishing: |
Immersion Gold, Immersion Silver, OSP, Hal, Hal Lf |
| Solder Mask Color: |
Green/Black/White/Red/Blue/Yellow |
| Material Brand: |
Shengyi, Kb, Nanya |
| MOQ: |
No |
| Certificate: |
UL, ISO9001, ISO14001, RoHS, SGS |
| Structure: |
Double-Sided Rigid PCB |
| Material: |
Epoxy Paper Laminate |
| Production Process: |
Subtractive Process |
Product Description

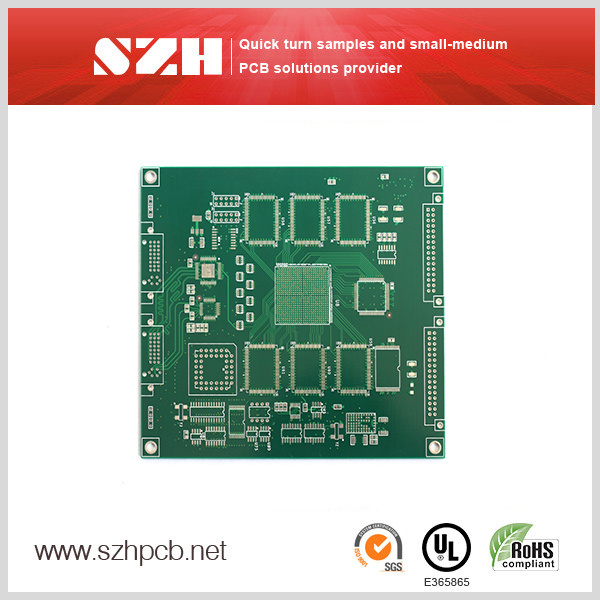

Expedited Service Multilayer Lead Free PCB board OEM PCB Prototype
RoHS complaint PCB
Lead free technology
UL approved
Welcome to Sunthone Technology Circuit Co,.Ltd
1. Who we are
| PCB Manufacturer | Flexibility | Quality |
| Sunthone, firstly established as a PCB manufacturer, has its own PCB factory with advanced manufacturing facilities, capable in fabricating up to 24 layers PCB boards. The factory is ISO9001 certified, with its PCB products UL approved and RoHS compliant. Your PCB cost and lead time can be reduced to buy PCBs from us. |
Sunthone is highly customer oriented catering for customer's specific requirements. There are various kinds of available services, you can choose either full turn-key solutions or any single specific service. We can handle any size project from minimum quantity one piece to mass production. And we provide quick turn PCB and PCBA manufacturing service. | Sunthone fully understands the importance of quality for your projects. The quality control system is integrated in each step from preliminary PCB manufacturing to final PCBA packing, and a well-organized inspection and test procedure is performed to ensure the superior quality. All the products are 100% inspected for each shipment. |
2. Support
Sunthone aims to be the leading PCB manufacturer, and provide quality PCB products for electronic industry.
| |
| 1. Technical capability & support |
| |
| Sunthone aims to be the leading PCB manufacturer, and provide quality PCB products for electronic industry. |
| |
| Layers | 1-16 layers | Min Board Thickness(2-layer) | 0.2mm | | Max Board Size | 635 × 1100mm | Min Board Thickness(4-layer) | 0.6mm | | Min Board Size | 20 × 30mm | Min Inner-layer Thickness | 0.1mm | | Min Trace | 0.1mm | Min Annular Ring | 0.1mm | | Min Space | 0.1mm | Min Hole Location Tolerance | ±0.075mm | | Min Hole Size | 0.2mm | Min Hole Size Tolerance | ±0.05mm | | Board Wrap | ≤ 1° | Min Outer Dimension Tolerance | ±0.1mm | | Solder Mask | Green, Yellow, Red, Black, Blue, White | | Surface Finish | HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP | | Board Material | FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic | | Acceptable file | Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD | | CAM software | Genesis, CAM350 |
|
| |
| 2. Service for productoion |
| |
| Sunthone employs and develops a team of experienced management directors and efficient production workers, with its sustainable development, career planning, advanced training-system and satisfactory welfare for all staff. On the other hand, Sunthone strives to improve quality and lead time through management and technology innovation. |
| Standard leatime |
| Double sides | 4WD | | 4 layers | 5WD | | 6 layers | 6WD | | 8 layers | 7WD | | 10 layers | 8WD | | 12 layers | 8WD | | 14 layers | 9WD | | More than 16 layers | Up to difficulty |
|
| |
| Others service can be provided |
Quick response, Sunthone will reply Customer's any enquiry within 2 hours;
More than 180 type of PCB can be worked out Every day;
24 hours technique Support;
24 hours Engineering Gerber files treatment.
24 hours English Engineering Questions Confirmation by E-mail.
Experienced Impedance Designer.
Supply the best project fit for production customized |
| |
|
Sunthone is a one-stop PCB & PCBA solutions provider, offers PCB manufacturing, PCB assembly, components sourcing, stencils and PCBA testing services, and helps to simplify your job, improve your efficency and focus on your strength.
Firstly established as a PCB factory, more and more of our existing PCB customers ask us for fully Assembled Printed Circuit Boards delivered to their door to take away all the time consuming stress of component procurement and assembly. In order to meet customers' request and market developing trends, Sunthone develops into a one-stop PCB & PCBA solutions provider with all related services.
Sunthone has ISO 9001 and UL certificates, so all the products delivered from Sunthone are quality guaranteed with ISO and UL standards. Under such quality guarantees, its products are widely applied in many industrials, such as Industrial Control, Security System, LED & lightning, Medical Facilities, Power Supply, Computers and Communications. The UL certificate of power supply thick copper PCBs is available, too.
Flexibility is another strength of Sunthone. It provides various services at flexible quantities from prototype to mass production in a flexible way, to meet different requirements from clients.
Sunthone is always having an open mind and listening ears to learn your ideas, willing to work with you on a mutual beneficial basis to achieve bilateral success.
