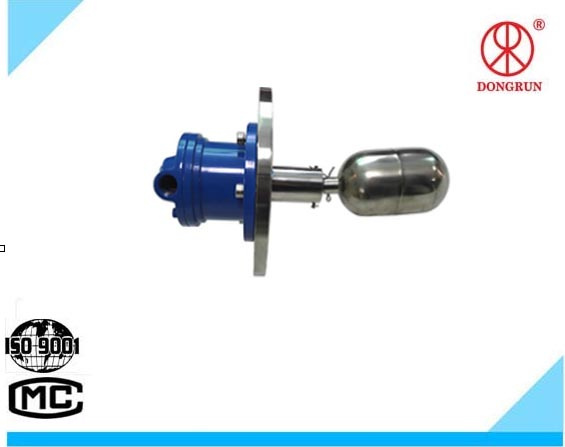

Explosion-Proof Side-Mounted Float Liquid Level Switch
| Price: |
US $ 100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Product Description
UQK Side-mounted Float Liquid Level Switch 1.Product Introduction Series UQK side-mounted float liquid level switch is applicable to a variety of open or pressurized container in the industrial production process. When the liquid level rises to the high limit or falls to the low limit, the switch acts and emits alarm signal to control the opening and closing of the pumps and valves. The new-designed UQK(S) self-test liquid level can monitor the switch under equipment operation to make sure the proper work of the switch and the safe operation of the system.

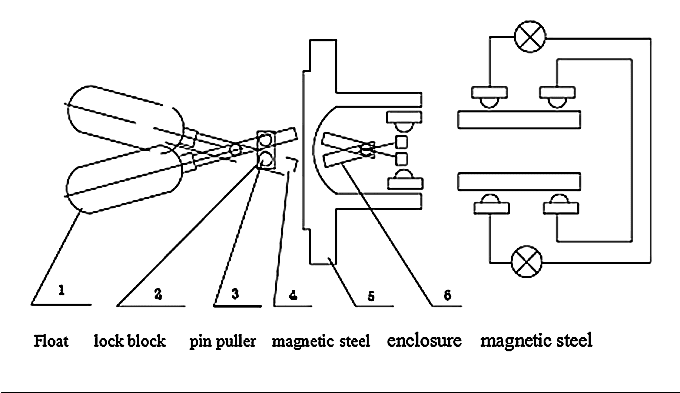

2.Structure PrincipleSide-mounted float liquid level switch is composed of two interactive parts: the measurement part and the output part. When the measured liquid level changes, the float rises and falls accordingly to make the magnetic steel swing up and down. According to the magnets repel principle, the magnetic steel mounted inside of the shell swings reversely to drive the moving contact and static contact to pass or break. UQKS has self-test liquid level switch,when pulling the handle detected handle, simulated float level reaches the operating position , switch one time to check whether the switching system is normal.
3.Technical Parameter| Operating pressure | Ordinary type ≤1.0Mpa
Explosion-proof ≤4.0MPa |
| Operating temperature | 0~100ºC 0~150ºC |
| Contact capacity | 220VAC,150 W,1A/3A |
| Medium density | ≥0.65g/cm3 |
| Material | the part that contacts with the liquid:H62 or 1Cr18Ni9Ti
Explosion-proof shell:ZL102 sprayed by paint |
| Electrical interface | M20×1.5 internal thread |
| Flame-proof | dIIBT4 flame-proof type, ibIICT4 intrinsically safe type |
| Connection flange | The non-explosion-proof adopts non-standard convex flange. The explosion-proof control connection flange standard: DN80PN4.0Mpa convex flange(see controller flange dimension diagram).UQK-(04) flange is DN40 PN6.4Mpa(Concave flange is made by the user.) |

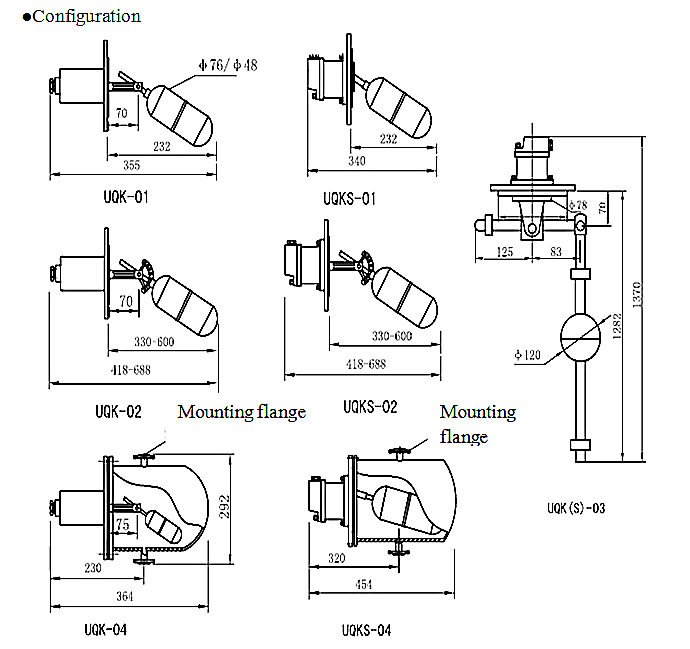

4. Structure and Outline Drawing
5. Selection Diagram| Ordinary type | Self-check type | Action boundary | Adjustment manner | Installation method |
| UQK-01 | UQKS-01 | 10mm | Not adjustable | horizontal |
| UQK-02 | UQKS-02 | 25 ~ 550mm | Step adjustable | horizontal |
| UQK-03 | UQKS-03 | 8 ~ 1000mm | Step-less adjustable | Top-mounted |
| UQK-04 | UQKS-04 | 8mm | Non-adjustable | horizontal(with external protection pipe) |
Note: The model of explosion-proof level switch should be followed by the letter "B".
6. Company InformationShandong Dongrun Instrument Science and Technology Co., Ltd. was founded in 1998, specializes in manufacturing online water quality analysis equipment, material level meters, pressure gauges, flow meters, special temperature gauges and laboratory analysis equipment. Our company cooperate with the Chinese Academy of Sciences to build a water analysis laboratory, and the main products are TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification and has a professional R & D team, providing technical support to meet customer demand, particularly in the anti-corrosion, our company has a unique technology to meet
different conditions of corrosion requiremes.
Certificate
Shandong dongrun Instrument Science and Technology Co., Ltd. Was founded in 1998, specializes in manufacturing online water quality analysis equipment, material level meters, pressure gauges, flow meters, special temperature gauges and laboratory analysis equipment. Our company cooperate with the Chinese Academy of Sciences to build a water analysis laboratory, and the main products are pH/ORP analyzer, DO analyzer, Conductivity analyzer, Turbidity analyzer, TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification and has a professional R & D team, providing technical support to meet customer demand, particularly in the anti-corrosion, our company has a unique technology to meet different conditions of corrosion requirements.
Company Culture
Our Mission: Using advanced analysis and monitoring technology, continuously to improve the human living environment; Using first-class automation and information technology, to create the greatest benefits for enterprises and society; Work hard wholeheartedly for the human environment construction and social progress.
Our vision: Make the world's most reliable instruments and equipment, to design the world's most intelligent automation information software; To do a hundred years of business, to become the world's leading industry brands.
Our spirit: Constant learning, constant innovation and constant development
Our team: Positive, courageous and capable of one heart and one mind, solid and steady
Our criteria: Concentrate, professional, dedicated, diligent, lean and improvement;
Our style: Enthusiasm, high-quality, high-efficient, no excuse
