Explosion-Proof Thermal Resistance with Fixed Flange (CX-WZ)

Explosion-Proof Thermal Resistance with Fixed Flange (CX-WZ)
Price: US $ 15/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: CX-WZ
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range: -200-500c
Fixing: Thread/Flange/None
Connection: Terminal Box/Compensation Cable/Plug
Probe Length: Custom
Thermocouple Wire Element: Simplex/Duplex
Graduation: PT100,Cu50,Cu100
Pakage: Wooden Box
Thermalwell Material: Ss304,316,Inconel601
Accuracy: 5%

Product Description

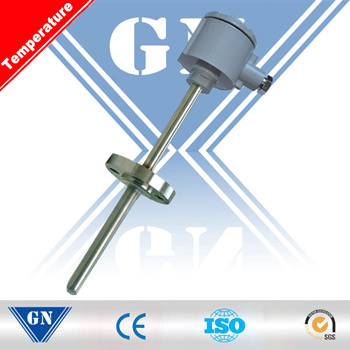

Explosion-proof Thermal Resistance with Fixed Flange(CX-WZ)

Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from -200 to 500°C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: -200-500C centigrade .
5.Terminal blocks: terminals box


Selection table:


TypeGraduationMeasuring Range °CThermal Response TimeExplosion-proof
Class
Specification
dL
WZP-440Pt100-200~500<90S


dllBT4

dllCT5

dllCT6

iallCT6




Φ16300×150  350×200   400×250   450×300   500×350   550×400   650×500   900×750
1150×1000
1650×1500
2150×2000
WZP2-440
WZP-440G<24S
WZP2-440G
WZP-441<45SΦ12
WZP2-441
WZP-441G<24S
WZP2-441G
WZC-440Cu50

Cu100
-50~100<120SΦ16
<90S
WZC-441<120SΦ12
<90S



Class-A thermal resistance shall be ordered according to agreement
Protection tube material is 1Cr18Ni9Ti,and we also produce the resistance with protection tube of other material.
Nominal Pressure≤2.5MPa


Model TypeFlange Specification
DD1D2Hd
WZP-440Φ105Φ75Φ5516Φ16
WZP-440GΦ105Φ75Φ55
WZP-441Φ105Φ75Φ5516Φ12
WZP-441GΦ105Φ75Φ55




After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal

Our Integrity Promises your Quality !

Please contact with me, I will provide you professional service and high quality products.
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.

Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
