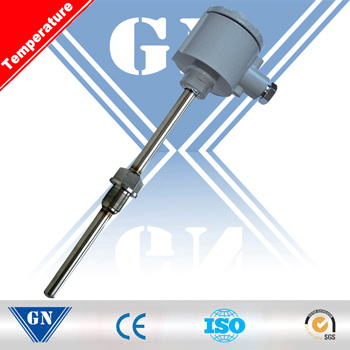

Explosion-Proof Thermocouple with Threaded Connector (CX-WR)

Prod Model:	CX-WR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-1800c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex
Graduation:	K,N,E,T,J
Pakage:	Wooden Box
Thermalwell Material:	Ss304,316,Inconel601
Accuracy:	5%

Product Description

Explosion-proof thermocouple with Threaded Connector(CX-WR)
Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from 0 to 1300°C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: 0-1800 centigrade .
5.Terminal blocks: terminals box


Selection table:

Type	Graduation	Measuring Range °C	Thermal Response Time	Protection Tube Material	Specification
					d	L×1
WRM-240	N	0~800	<90S	1Cr18Ni9Ti	Φ16	300×150   350×200   400×250   450×300   500×350   550×400   650×500   900×750   1150×1000  1650×1500  2150×2000
WRM2-240		0~1000		0Cr25Ni20
WRM-240G		0~800	<24S	1Cr18Ni9Ti
WRM2-240G		0~1000		0Cr25Ni20
WRN-240	K	0~800	<90S	1Cr18Ni9Ti
WRN2-240		0~1000		0Cr25Ni20
WRN-240G		0~800	<24S	1Cr18Ni9Ti
WRN2-240G		0~1000		0Cr25Ni20
WRE-240	E	0-800	<90S	1Cr18Ni9Ti
WRE2-240
WRE-240G			<24S
WRE2-240G
WRC-240	T	0~350	<90S	1Cr18Ni9Ti
WRC2-240
WRC-240G			<24S
WRC2-240G
WRF-240	J	0~600	<90S	1Cr18Ni9Ti
WRF2-240
WRF-240G			<24S
WRF2-240G

Class-1 thermocouple shall be ordered according to agreement
We also produce the thermocouple with protection tube of other material.
Nominal Pressure ≤10MPa

Model Type	Thread Specification
	Code	M
WZRN-240		M27×2
WZRN-240A	A	G×3/4
WZRN-240C	C	NPT3/4
WZRN-240G		M27×2
WZRN-240GA	A	G×3/4
WZRN-240GC	C	NPT3/4
