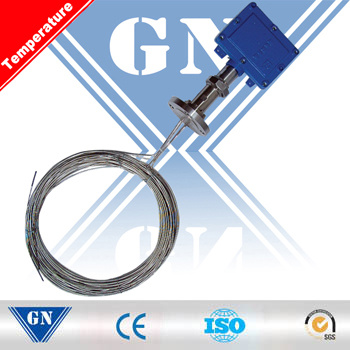

Explosion-Separation Thermocouple for Multi Points (CX-WR)

Prod Model:	CX-WR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-800c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex
Graduation:	N,K,E,T,J,PT100,Cu50,Cu100
Pakage:	Wooden Box
Thermalwell Material:	Ss304,316,Inconel601
Accuracy:	5%

Product Description

Explosion-separation Thermocouple for Multi Points



Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from -200 to 800C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: -200-800C centigrade .
5.Terminal blocks: terminals box


Application

It is widely used for rectifying tower in petrochemical industry with flammable and explosive chemicals on the spot to measure temperature simultaneously on many points.

Main Technical Parameters

Electric outlet: M20X1.5, NPT1/2
Thermal Response Time: not more than 8S
Filament Diameter: ∮1, ∮2, ∮3
Protection Class: IP65
Explosion-separation Class: dllBT4, dllCT5

Type & Specification

Type	Graduation	Measuring  Range	Measuring Points	Thermal Response Time
WRN-240D	K	0~1000	2~12	Threaded Connector
		0~800
WRN-240D	E	0~800
WRN-440D	K	0~1000		Fixed Flange
		0~1000
WRN-440D	E	0~800

1) We may provide different class thermocouples as user's demand ;
2) We also produce protection tube of other material;
3) The user shall prepare outer protection tube by himself.
