Expulsion Fuse Link for Outdoor Fuse Cutout

Name: Expulsion Fuse Link for Outdoor Fuse Cutout
Brand: all-electronics-online.com
SKU: 677806085
Availability: InStock
Rating: 4.6 (125 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	K Type, T Type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Expulsion Fuse Link:	Current Limited
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage

Product Description

Features:

1. Good fault interrupting capability

2.High mechanical strength

3.Reliable arc-extinguishing performance

4.Accurate time current characteristics

5.Durability

6.Standard: IEC-282

7.Rated current :1A-200A

8.Rated Voltage :11KV-27KV (Length :530MM-600MM)

9.Rated Voltage :33KV-38KV (Length :787MM)

10. Other customized type of HV fuse links are available, welcome to contact us.

Expulsion fuse link for fuse cutout
Rated voltage: 11KV-36KV
Rated current: 1A-200A
Rate of melting: Class K & Class T

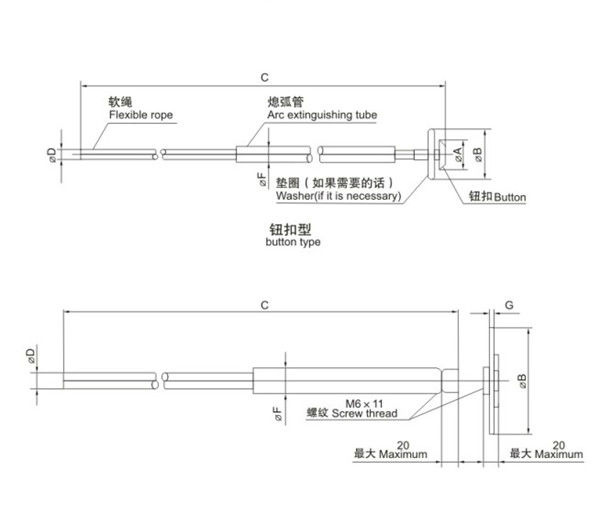

Technique parameter

Rated current(A)	Dimension(mm)					Quantity/carton
Rated current(A)	A	B	C	D	F	Quantity/carton
1(to)25	12.5±0.2	19±0.2	(Note)1	2.0	6.5	250
30(to)40	12.5±0.2	19±0.2	(Note)1	3.0	8.0	250
50(to)100	19.0±0.3	(Not applicable)	(Note)1	5.0	9.0	250
140(to)200	19.0±0.3	(Not applicable)	(Note)1	7.0	13.0	150

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
