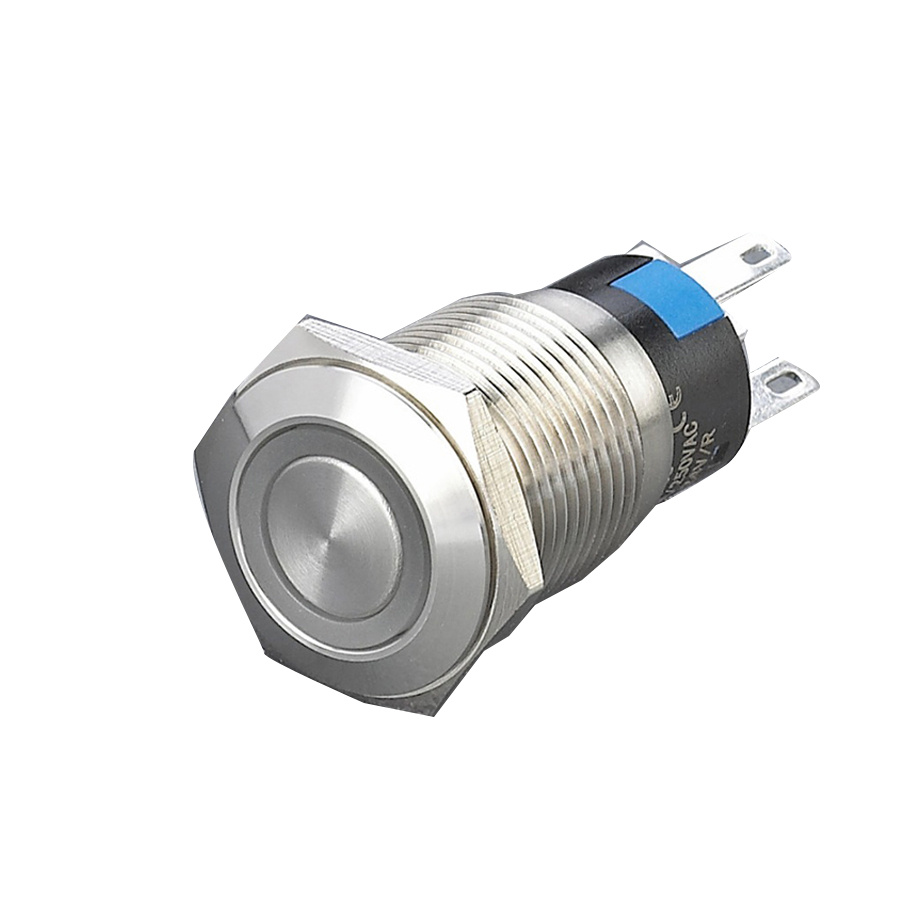

Exquisite Workmanship Round LED Push Button Micro Switch 16 mm Latching

Name: Exquisite Workmanship Round LED Push Button Micro Switch 16 mm Latching
Brand: all-electronics-online.com
SKU: 728753832
Availability: InStock
Rating: 4.4 (73 reviews)

Price:	US $ 3.6-3.8/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	A16F-11E

Product Description

1. A5166 series waterproof pushbutton switch , metal waterproof pushbutton switch , overall waterproof pushbutton switch protection degree up to IP67 .
2. Mounting Dimension:16mm
3. Material : Plastic or Matel
4. Function:Self-locking or Non self-locking(Momentary)

Electrical Parameters

Item		Data
Rating load		5A/250VAC
Operating speed		1mm-1m/s
Operating frequency	Mechanical	120times/min
	Electrical	30times/min
Insulation resistance		100MΩ(Above)DC500V
Contact resistance		25MΩ(intial value)
Withstand voltage	Non-connection wire	1000VAC
	Every terminal	1500VAC
Vibration	Misoperation	10-55Hz Amplitude 1.2mm
Impact	Durable	1000m/s²
	Misoperation	300m/s²
Life	Electrical	100,000above
	Mechanical	1,000,000above
Pertection degree		IP40
Operating temperature		-25ºC +55ºC
Operating humidity		45 to 85%RH

aterproof Button Switch with Dot-illumination
Model	5166.8101.10/5166.8201.10
Rating Value	5A 250VAC/8A 125VAC
Button Color Light Color	Red Red/Green/Yellow/Blue/White
Ambient Temperature	-25 °c to +80 °c
Founction	ON-ON/(ON)-ON

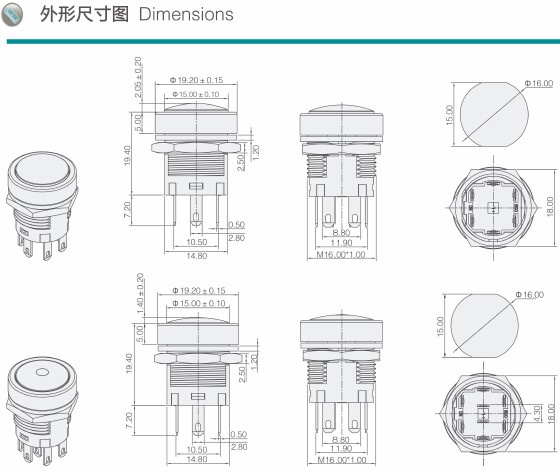

Dimension	Diameter 16mm+0.2
Protection Degree	IP67

Model and Meaning

* Metal button type only have round button, square button have not matel type.

* Pushbutton Switch with wire , the wire length is 16cm .

A5	16
A500 code	Dimension	Terminal	Shape Form	Function	Led Light Color	Button Color	Button Form	Light Form
Waterproof Pushbutton Switch	16:Φ16mm 19:Φ19mm 22:Φ22mm	6:2.8terminal 7:With Wiring	8: Round	1.Self -locking 2.Momentary(Non-self locking	0: No light 1:Red 2.Green 3. Yellow 4.Blue 5:White	1:Red 2.Black 3.Gray 4:Blue 5:Orange 6:Yellow 7:Green 8:White	1: 1# 3:3#	0:No-light 1: Dot illumination 2:Surface illumination 3:Symbol illumination

Why choose Us?

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

Customer's questions

Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.

Q5:What's the delivery term?
Answer:Both EXW and FOB Ningbo are acceptable.

Q6:What's the payment term?
We could start our discussion about payment term from second order on.

Q7:What's the shipment way?
Answer:Express:DHL, UPS, FedEx, TNT and SF express.
Forwarder:Air shipment or sea shipment.

6.More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!

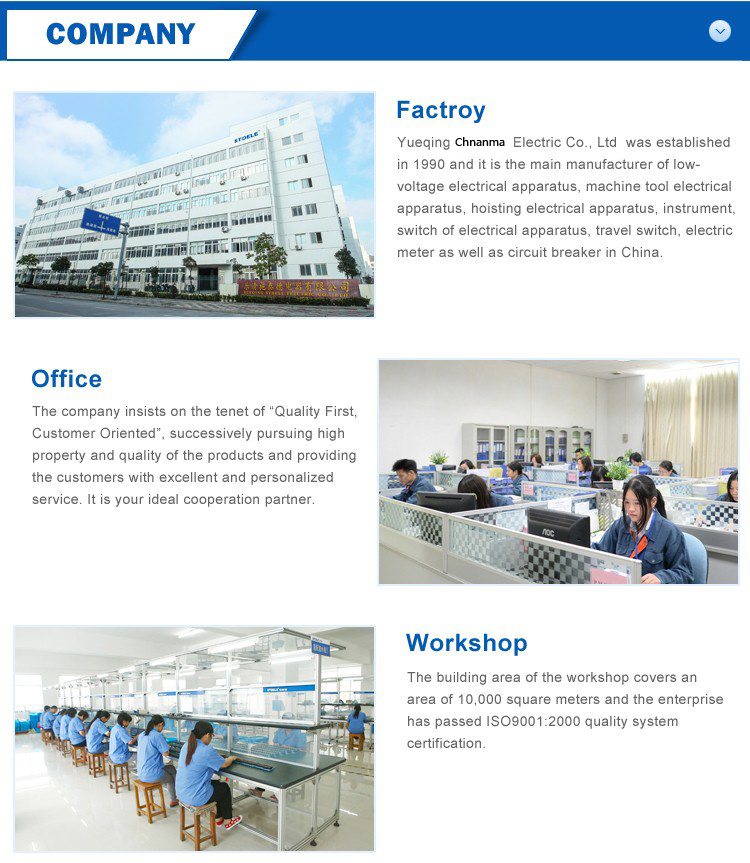

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
