Extended Push Button Switch Plastic Xb2 1no EL21 EL31 EL51 EL61 1nc EL22

Name: Extended Push Button Switch Plastic Xb2 1no EL21 EL31 EL51 EL61 1nc EL22
Brand: all-electronics-online.com
SKU: 822121345
Availability: InStock
Rating: 4.3 (57 reviews)

Price:	US $ 0.1-4/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XB2
Installment Size:	16mm 22mm Dia.
Model:	Ad16 Ad22
Operation Mode:	Momentary, or Maintained
Contact Structure:	1no, 1no1nc, 2no2nc
Lamp Voltage:	AC/DC 6V, 12V, 24V, 36V,48V,110V,127V, 220V,380V
Rated Temperature:	T90/T125/T150
Rated Current:	2.2mA(Max),40mA(Max),5mA(Max)
Power:	0.3W
Lighting Source:	Neon Lamp/Filament Lamp/LED
Lamp Indicator Color:	Red, Green, Yellow, Blue, White
Usage:	Check Button
Kind:	Single-pole on-off Switch
Type:	Nc, No, No+Nc
Structure:	Metal
Contact Type:	Screw Terminal, Pin Terminal
Brand:	Golden Electric/OEM

Product Description

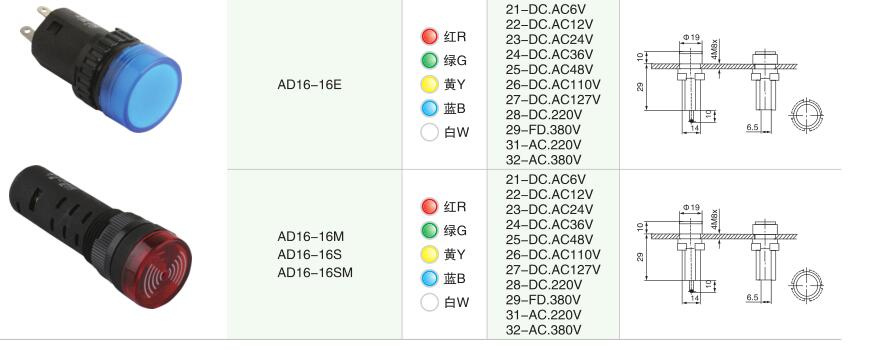

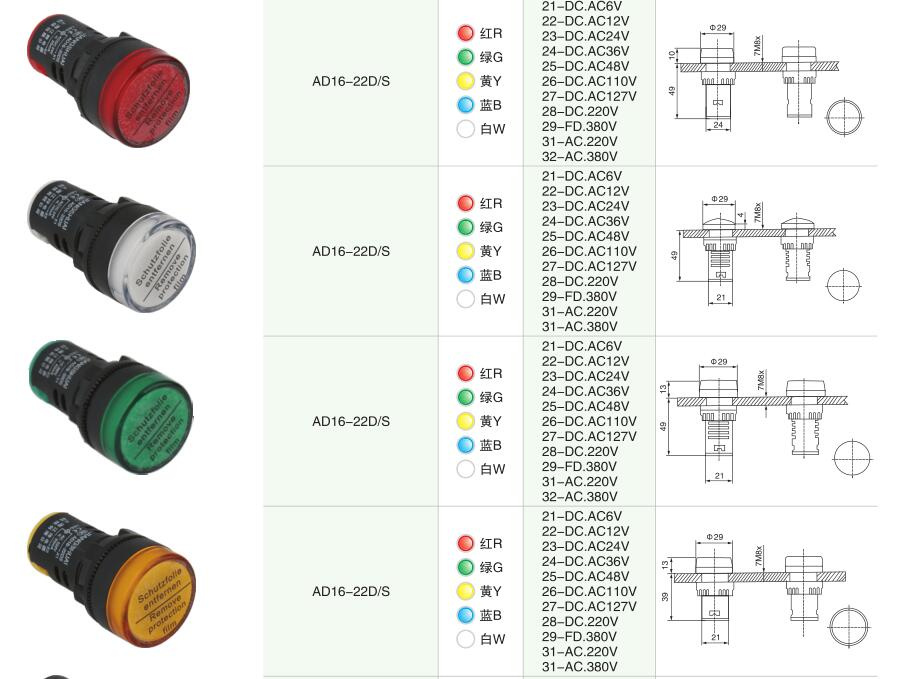

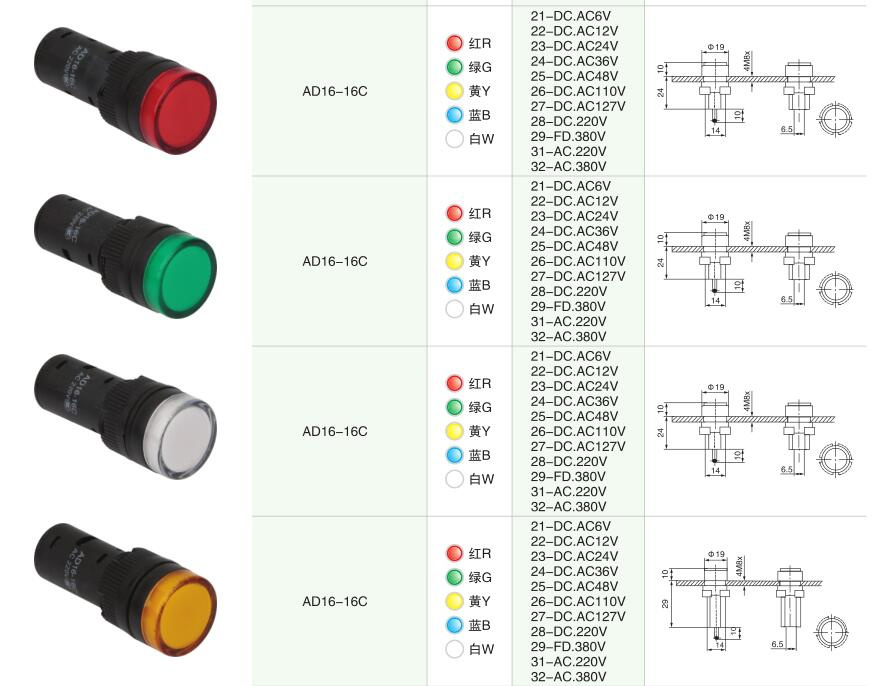

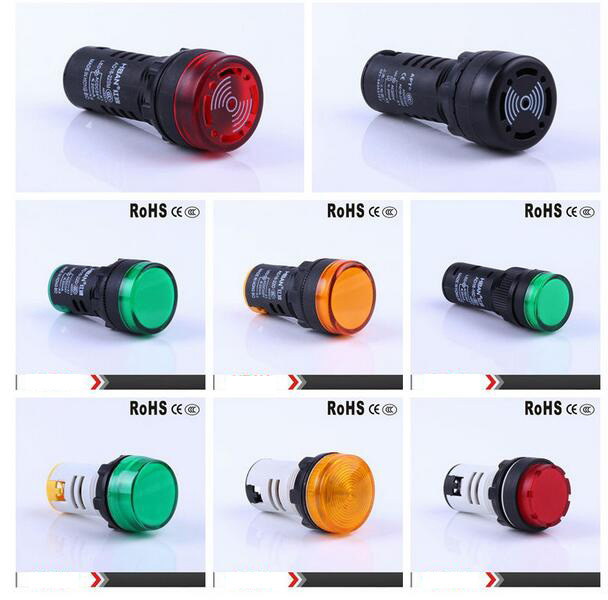

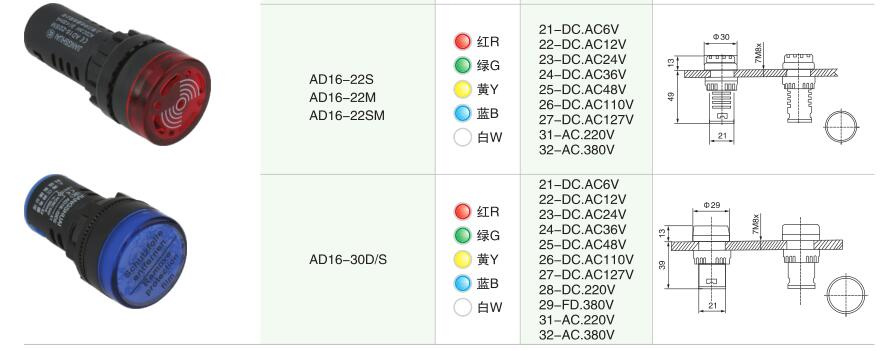

AD16-22 series of indicator lamp is eqaully used LED shining clip as light source.And following character:long light weight,lamp shade is made of polycarbo-nate with high intension and has better anti-surge performance,set up bolt-type connector in it,which will be safer and more convenient.

AD16-22 series of indicator lamp are used as indciating,foretelling,accident and other signals in the lines of equipment(such as electrical power,telecommunication,machine tool,water craft,textile,printing,mine machinery,etc.)

Applicable environment:

1.Environmental temperature:-25ºC~+55ºC
2.Relative humidity:<=98%
3.It can normally work under following condition:vibration frequency is 2~80Hz and accelerated speed is 0.7g.
4.Pollution grade is 3 and installed sort is
5.There is a "TH"sign,and it is possible to work under the moist tropical environment.

Main technical target:

1.Voltage of working frequency:2.5KV(AC valid value),1 min.
2.Insulated resistance ≥2MΩ
3.Voltage wave allowed by AC indicator±20%
4.Continual working life ≥30000h.
5.Brightness≥100cd/m2
6.Index of leakage CT1≥100.
7.Protection grade IP20,and it is possible to be made to order IP67.
8.Using frequency AC50~60Hz.

3. Other our product series:

Nylon Cable gland	MG/M type/PG/NPT
Metal cable gland	MG/M type/PG/NPT
Manual transfer switch	1A~1600A, 3P/4P.
Automatic Transfer switch	1A~3200A, 2P/3P/4P.
Metal power distribution box	Metal box, size can color can be customized.
Plastic box	Different ways, competitive price, welcome to contact
Surge protector	B,C,D Class, AC, DC type you can choose. Different types and discharge current you choose.
Power supply	Hot used in Gepenerator system, 120W 12/24V. And other types
Insulator	Different size you can choose, quality guarantee, hot used in Generator cabinets.
Push button	Metal or plastic, different types for power cabinet.

How to Order?
1. Please let us know what kind of model.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay the discussed deposit soon.
5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.
6. OEM/ODM is welcomed.

Terms of Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Terms of Payment:
1. For bulk order, TT or L/C at sight.
2. 30% deposit and 70% against shipping documents.
3. Sample order we accept payment such as paypal, western union, visa card.

Warranty:
1.We provide 2 year quality warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods .
