| Prod Model: |
Gps tracking Vehicle tracker TK103A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
120g |
| Feature: |
Engine Cut and Resume/Real Time Tracking |
| Back Up Battery: |
Chargeable 3.7V 800mAh Li-ion Battery |
| Remote Controller: |
Optional to Arm/Disarm |
| Shock Sensor: |
Yes |
| Warranty Time: |
12 Months |
| Car Security: |
Engine Shut Remotely, Fuel Monitor |
| Customized Service: |
Yes |
| Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| Arm Alarms: |
Acc/Door/Shock Sensor Alarm |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
103 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description

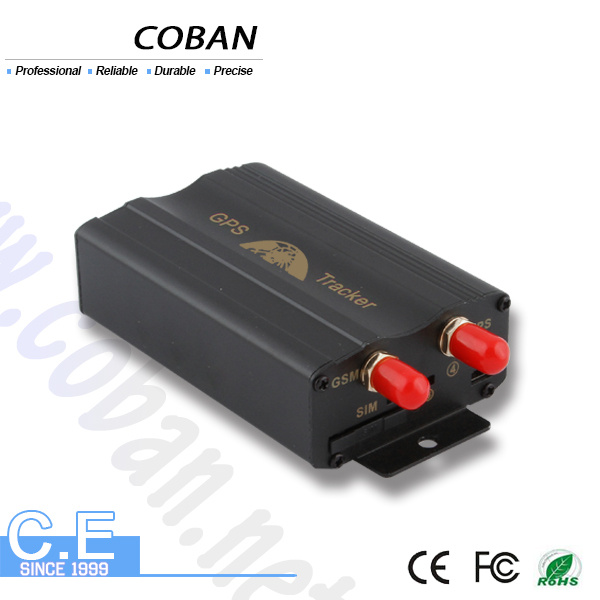

External Antenna GPS Tracking Vehicle Tracker with Fuel Alarm (Coban TK103A)1. SOS emergency/alarm function
2. Tracking via GSM or GPRS
3. Low price and fast deliver
Summarize: 2017/4/24Working based on existing GSM/GPRS network and GPS satellites, this product can locate can monitor any remote targets by SMS or internet service platform
Features:Support non-Server based location
Location memorization
Auto location report
Authorize/delete the tracking phone number
Covert alert& voice surveillance
Geofence: Alert in case of braching the predefined district
Movement alert: Alert in case of movement
Speed alert: Alter in case of excess of the predefined speed
Power alert
applicationVehicle rental/Fleet management ect
Powerful magnet+ water proof, adsorbing in the hidden place of car
Protect child/the old/the disabled /pet, ect
Provide peace-of-mind for businessmen
Manage personnel
Track criminals secretly
Basic functions:1. GPS + Location based service(LBS)
2, Real time tracking via
SMS or GPRS (TCP/UDP)3, Track on demand by calling or SMS comamnd
4, Show location directly on mobile phone with HTTP google map link
5, Track by time and distance interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, Low battery alarm
10, Power off alarm
11, SOS button for emergency
12, Geo fencing control
13, Overspeed Alarm
14, Engine -cut and restore alarm by SMS GPRS15, Door, windows alarm get by SMS
16, Movement alert sensor
17, optional Android Ios app tracking
18. With direction and heading value

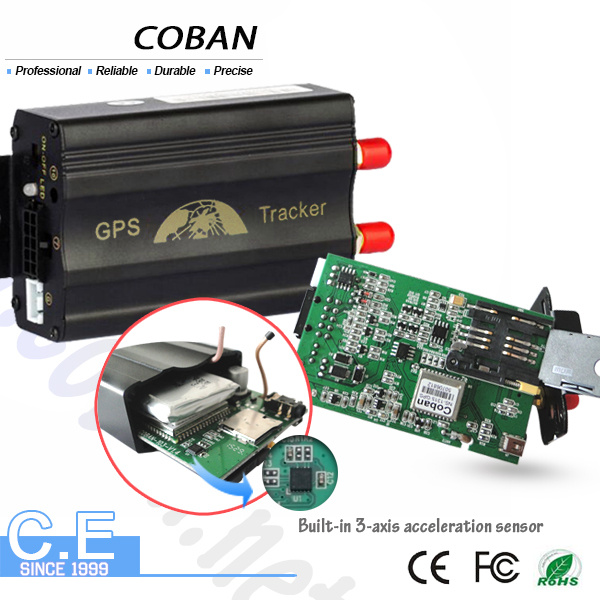

19. Optional shock/impact sensor
20. Abosolute street function
Special for car (12V-24V)Support cut power and oil function from long distance
Supporting SMS remote reboot and reset button to restart
Support text geographic information searching
Supporting SMS with Google map track (SMS)
Support tracking (GPRS)
Support time and voice tracking
Support electronic fence, shift, speeding and low electric alarm
Support SOS emergency/alarm function
Free computer installed version tracking software

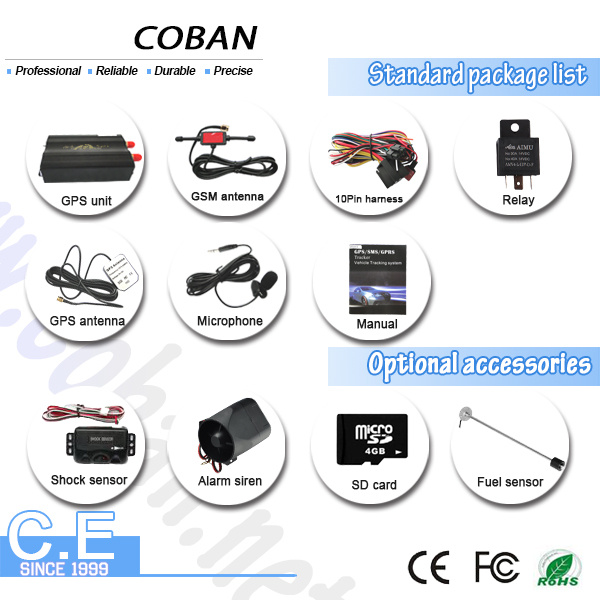

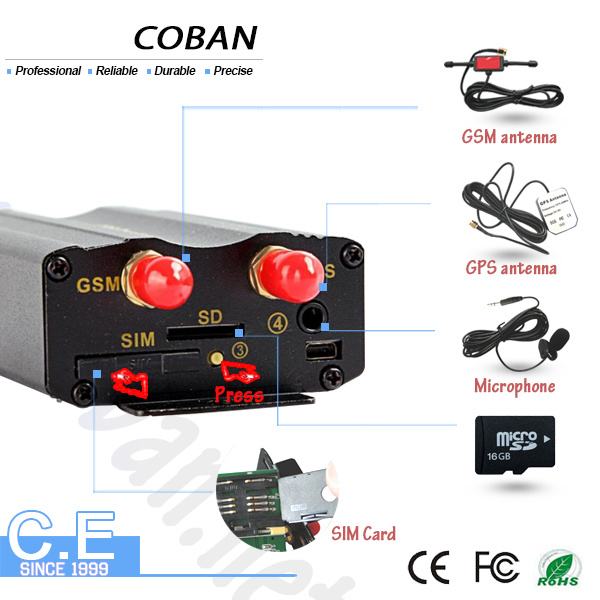

Optional function:Quiver/sensor alarmOptional 24V relay for 24V vehicleSirenExtra remote controlApplying directions:Vehicle fleet/logistics/vehicle rentalProduct Notes:Great for private use, company car or rental fleet managementComes with external GSM and GPS antenna for excellent receptionInstall the mic inside your passenger compartment, and you can listen to conversations inside the car without letting any passenger or driver knowComes with detailed instructions on how to work with GPRS enabled SIM and setup internet monitoring (fixed IP only), so constant tracking information can be displayed on a detailed mapStandard Package Include: 1 x tracker
1 x user manual
1 x GPS Antenna
1 x GSM Antenna
1 x packing box
1 x harness (cables)
1 x 12V relay
1 x microphone
1 x Remote control and remote control Antenna (Only for GPS103B)
Specification:
| Brand | Specification |
| Dimension | 83(L)x54(W)x26(H) mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Frequency | 850/900/1800/1900MHz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS Start time | Cold status 45s |
| Warm status 35s |
| Hot status 1s |
| Humidity | 5%--95% non-condensing |
| Temperature | Operating Temperature | -20& deg; C to +65& deg; C |
| Storage Temperature | -40& deg; C to +85& deg; C |
| Voltage of Car power system | 12-24V |
| Battery Power | Chargeable changeable 3.7V 800mAh Li-ion battery |

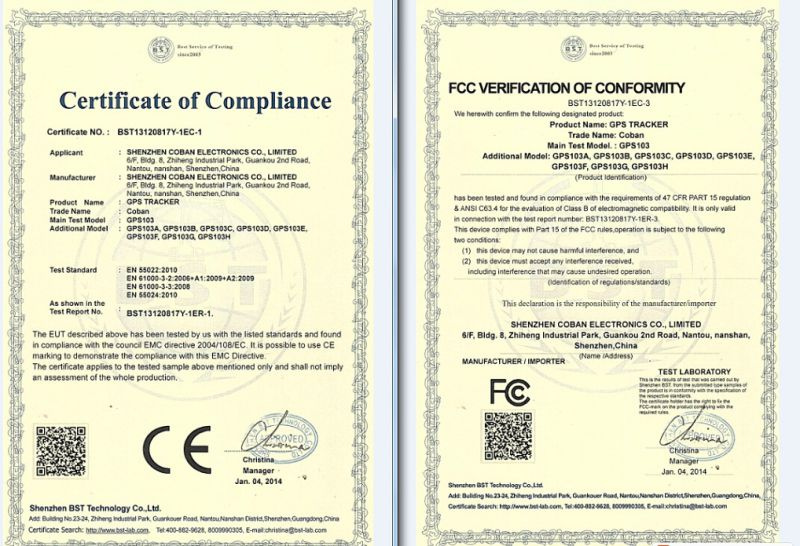

GPS103 certificate
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
