| Prod Model: |
Gps real time online tracking device TK103A+ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
Ce |
| Weight: |
120g |
| Size: |
83*54*26mm |
| Shipment: |
DHL, UPS, EMS etc |
| Delivery Time: |
1-3 Working Days |
| Central Locking System: |
Lock/Unlock Car Door |
| Stop The Engine: |
Yes |
| Applying Directions: |
Vehicle Fleet/Logistics/Vehicle Rental (12-24V) |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
GPS Get Position, GSM Transmit |
| Port Number: |
20 |
| Model: |
Dual SIM Vehicle GPS Tracker Tk103A+ |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description
External dual sim Gps real time online tracking device TK103A+ support central lock fuel cut off
Model : New TK103
This gps tracker supports the functions of SMS / GPRS / Internet data transmission,to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management.
how does the GPS Car Tracker work?
All you need to do is insert a working SIM card, it even has Quad-band Connectivity so it works anywhere in the world.
The unit is powered by automotive battery, and should be installed inside a vehicle
Here is a small list of what it can do for you and your vehicle:
1.Track on Demand - Replies with a TXT message of current latitude, longitude,speed, and time, as well as an Internet map link to your cellphone to show you exactly where the GPS tracker/your vehicle is.
2.Geo-fencing control - When the vehicle moves in/out the preset scope, it will send an SMS alarm to the authorized phone numbers.
3.Movement and Speed Alert:--The tracker can warn you with SMS message when the vehicle starts to move from a stationary status, or when the vehicle is moving faster than a preset speed.
4.Door/ACC alert:--In case of door open or acc on under arm state ,the tracker device will send sms alerts to authorized numbers.
5.Stop the Engine- You can send an SMS message to the tracker to cut off the gas and battery power, so the engine will remain in an immobilized stated until your remove the alarm status.
6.Fuel check/alert:-- Optional fuel sensor is to detect and report fuel consumption.When fuel is decreasing too fast,the gps device will send fuel alert to prevent fuel leakage or theft .
7.Central locking system:--With the optional central lock relay,the gps device can remotely lock/open door and also restart car engine .
8.GPRS- With a GPRS enabled SIM card, you can monitor real-time movement of your vehicle with the supplied software on your computer.
9.Web Platform :--- www.gpstrackerxy.com , demo ID : demo , password : 8888 .
This platform enables you to create management account , subaccount . Hundreds of gps units can be tracked on platform in the meantime .
10.Remote controller:--Remote controller is for B model only.
4 tracking ways:
- SMS tracking by calling with latitude & longitude, speed, battery status, google map link
- Absolute street address by sms
- optional Android Ios APP Tracking
- Optional web server www.gpstrackerxy.com
Applying directions:
Large Scale Vehicle fleet/logistics/Vehicle rental (12-24V)
Model:GPS103-A+
GPS Unit

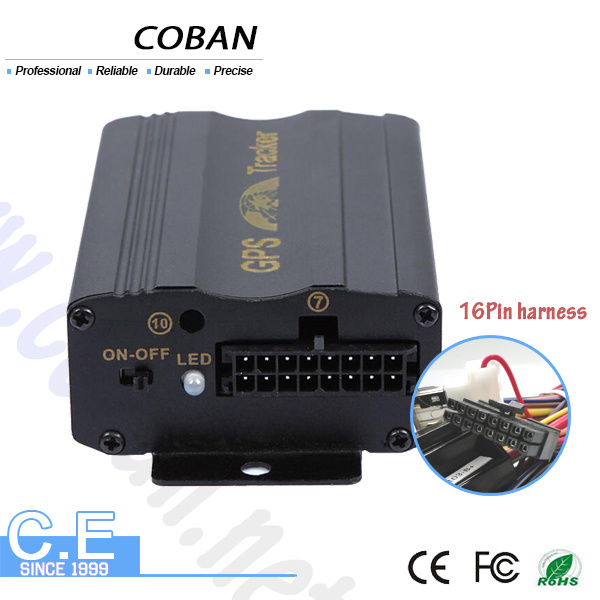

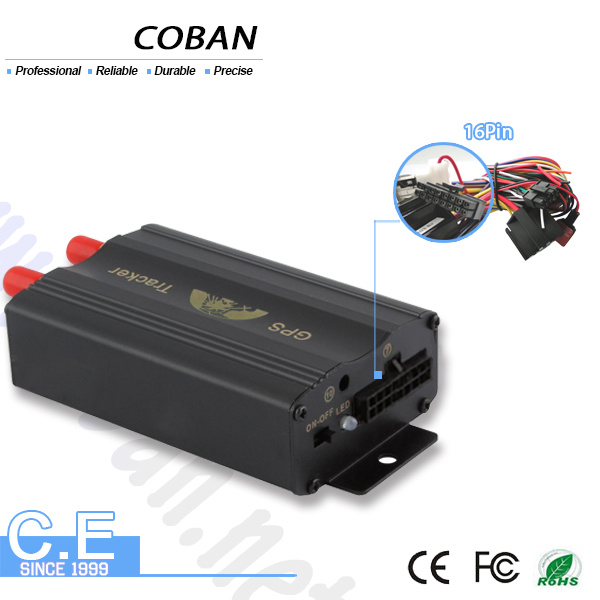

16 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
Manual
Package
Optional accessories
One more remote controller
Shock sensor
alarm siren
Microsd memory card
Fuel sensor
Central locking relay(2 in 1 set)
Tracking Solutions
-SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
-Get absolute address by SMS
-Android IOS app tracking
-Web server online tracking. Capable of monitor 10,000 objects

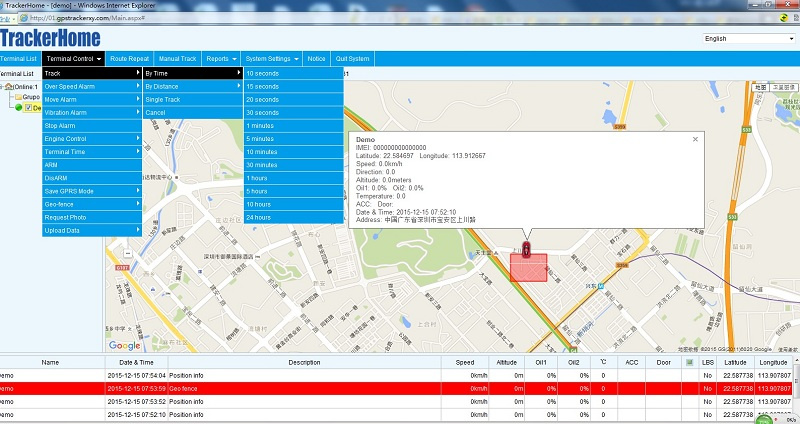

GPRS web server
www.gpstrackerxy.com(user ID :demo,password :8888)
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
OEM&ODM Service
1.Customize logo and brand print on the device
2.Customize box
3.Offer firmware modification service
4. Customize design in bulk order
