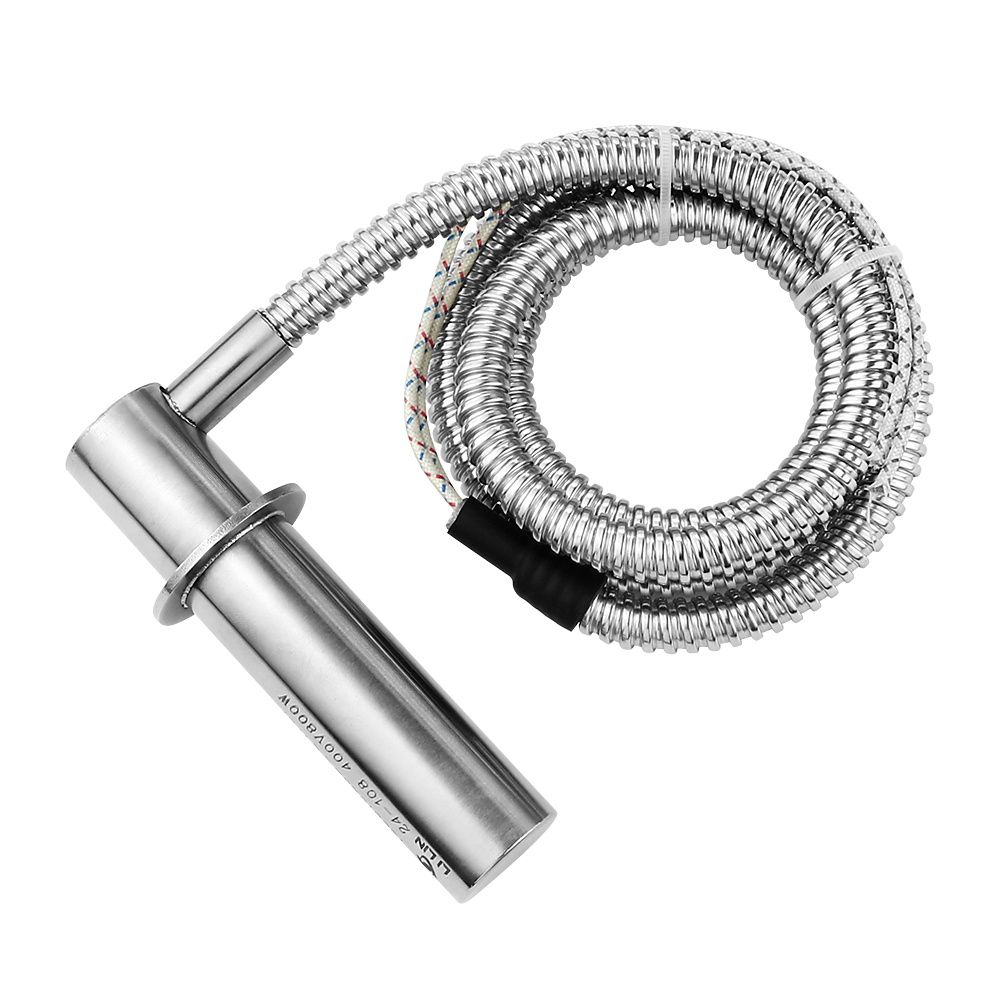

Extruder Cartridge Heater

Extruder Cartridge Heater
Price: US $ 15/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal

Product Description

Extruder Cartridge heater :

Product Description:
1. Rapid warming, long service life
2. According to different requirements, choose the heating wire, magnesium powder and pipe grades
3. Power, voltage can be customized
4 for injection molds, machinery and equipment


Product name:

Extruder Cartridge heater

Diameter:

From 2.8mm-35mm

Steamless tube:

SUS304 321 316L 310S incoloy 600 800 825 840

Maximun temperature:

850°C

Voltage:

Customized

Wattage:

50W/cm2

Length:

10mm-10000mm

Tolerance:


Tolerance



Diameter





2.8-5mm

+0

-0.04mm



6-10mm

+0

-0.05mm



>10mm

+0

-5‰



Sheath Length





≤100 mm

±1mm





100-300mm

±1.5mm



≥300mm

±2mm



Wattage





≤6mm

±10%





Others

+5%

-10%





Resistance





≤6mm

±10%





Others

+10%

-5%

Connecting wires:

a. glass fiber insulation nickel wire (temperature 450 degrees -750 degrees)

b. Crimp Teflon line (temperature 250 degrees)

c. Crimp silicon insulated wire (temperature 200 degrees)

d. Crimp fiberglass insulated nickel wire (temperature 450 degrees)


Detail Display:

Our four big advantage :


 Five major technologies   :

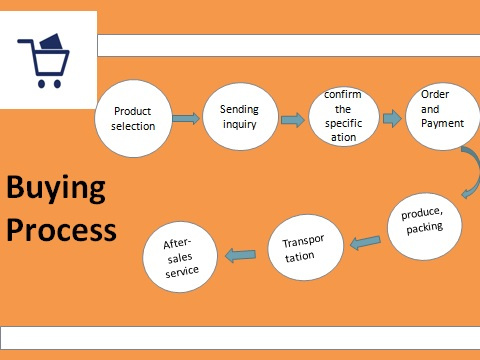

Buying process :



Inquiry Notes  :
1.Diameter
2.Width
3.Voltage
4.Walltage
5 qualifying method
6. The length of the outlet
7. Whether with a thermocouple

8.Use of the environment and temperature

Contact us:


Name: sunny liang
Shenzhen superbheater technology company













Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.

Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.

We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers

After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
