Ezc400n 400A MCCB

Prod Model:	EZC400N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
With Fresh Nylon Materials:	High Breaking Capacity
Most Economic MCCB Ezd:	for Distribution System
AC50/60Hz:	Ui 690VAC
Dimension(3p):	with Fresh Nylon/DMC Material
With 85% Silver Contact:	with Red Copper Parts
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

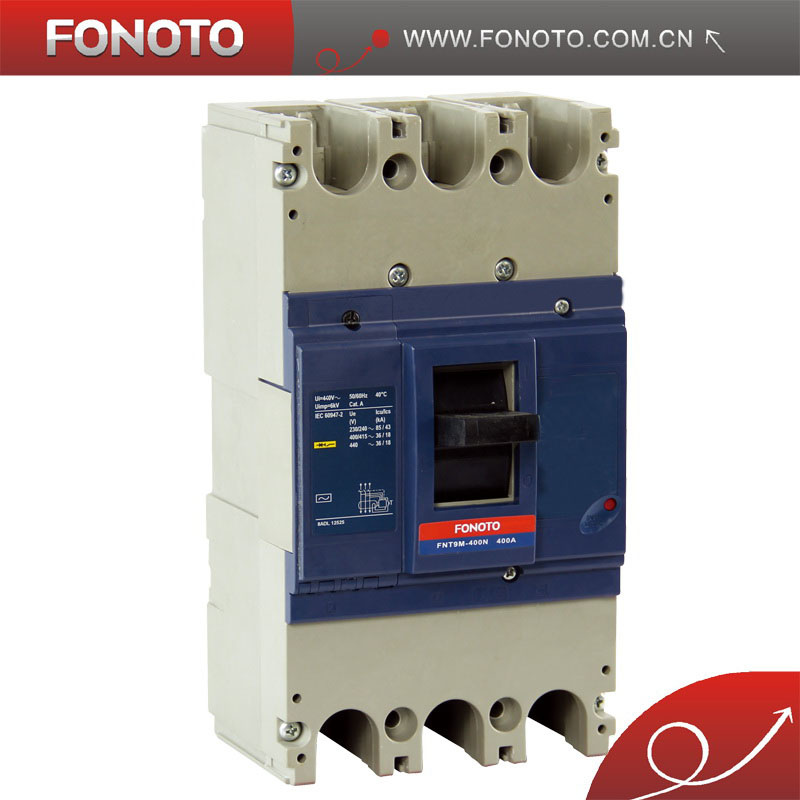

MCCB EZC400N 3P3d 400A
(MCCB FNT9M-400N, FNT9M series economic type circuit breakers)

Feature:
Most economic MCCB;
More suitable for installation & application;

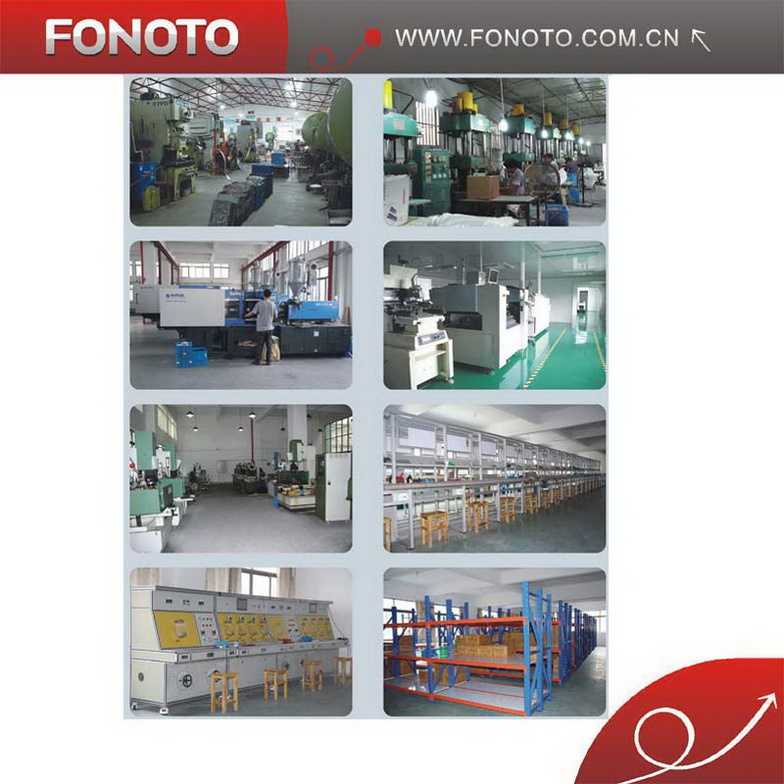

All parts are made by us, with fresh new materials.

1. Brand: FONOTO, OEM, ODM
2. HS Code: 8536200000

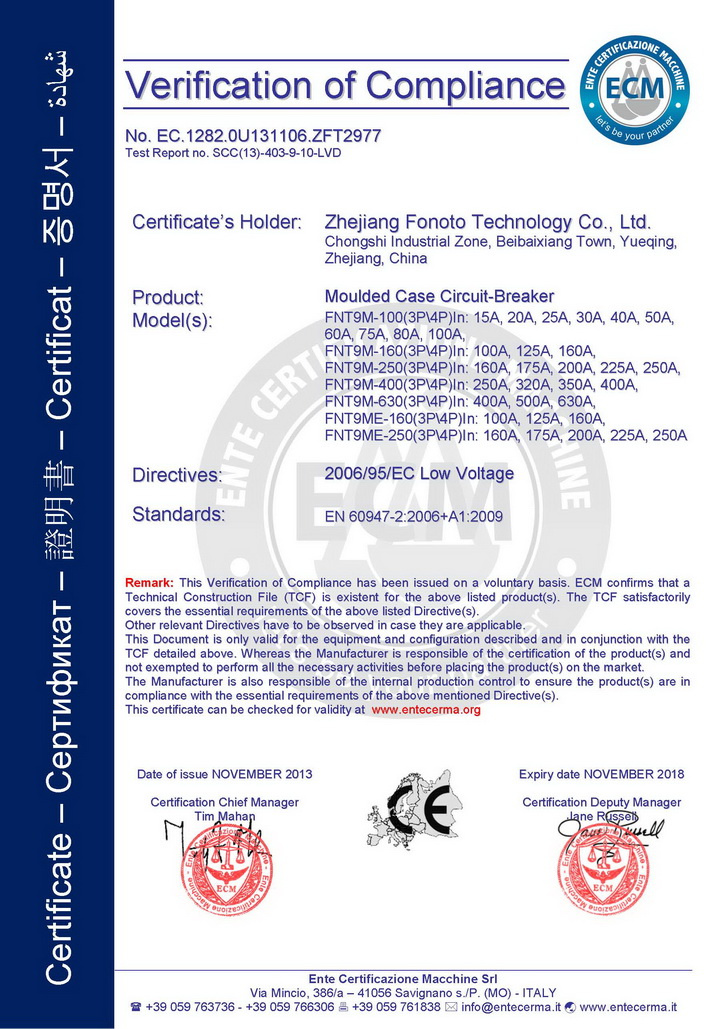

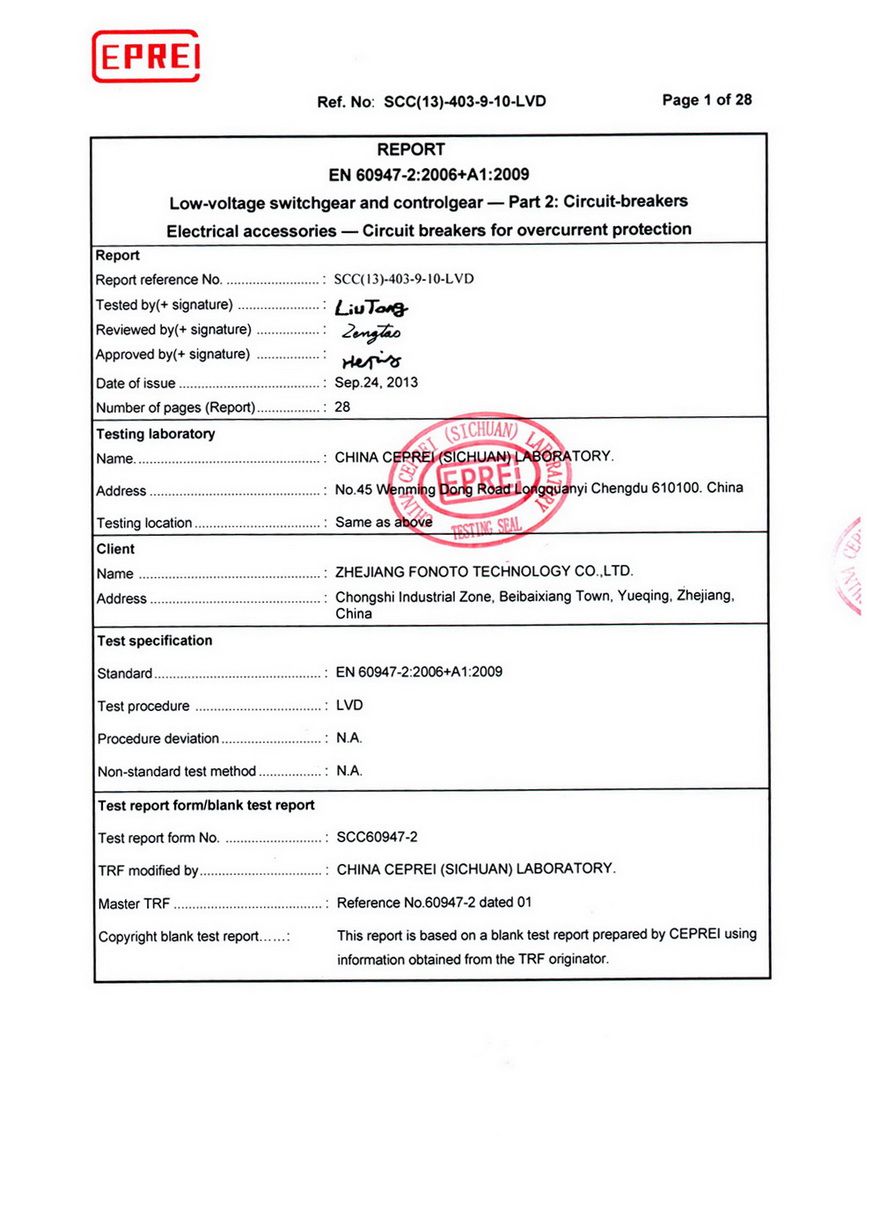

3. Successfully passed the tests of following standards: IEC60947-2 & EN60947-2
4. Specification: 100A, 160A, 250A, 400A, 630A
5. Pole number: 3poles, 4poles.
6. Type: Thermomagnetic type, Electronic type
7. Applications: Distribution protection system, Motor protetion sysem etc.
8. Breaking capacity: 20KA-50KA (H type)

9. Packing: Export standard Carton
10. Production Capacity: 5000 Per Week
11. Sampls available

Complementary
Control type: Toggle
Mounting mode: Fixed
Mounting support: Backplate
Upside connection: Front
Downside connection: Front
Mechanical durability: 10000 cycles
Electrical durability: Category A: 5000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
Connection pitch: 35 mm
Local signalling: Positive contact indication
Neutral protection setting: Without protection
Earth-leakage protection: Without
Height: 165 mm
Width: 105 mm
Depth: 60 mm

Environment
Standards CSA 22-2
GB 14048.2
IEC 60947-2
JIS C8201-2-2
NEMA AB1
UL 508
IP degree of protection: IP20 conforming to IEC 60529
IK degree of protection: IK07 conforming to IEC 62262
Ambient air temperature for operation: -25...70 ° C
Ambient air temperature for storage: -35...85 ° C
RoHS EUR conformity date: 0801
RoHS EUR status: Compliant

MCCB EZC400N 3P3d 400A

Compliance with standards:

International standards:

IEC 947-1: General(GB/T 14048.1);

IEC 947-2: Circuit Breaker(GB/T 14048.2);

IEC 947-4: Contractors and Motor Starters (GB/T 14048.4);

IEC 947-5: Control Devices and Switches; Automatic Control Element(GB/T 14048.5)

National Standards:

GB 14048.1 General;

GB 14048.2 Circuit Breaker.
