| Prod Model: |
EZD100, 160, 250 3P, 4P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe |
| Brand: |
Winston |
| Rated Insulation Votage: |
AC690V |
| Rated Frequency: |
50/60Hz |
| Antistop: |
Circuit Breakers |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Certification: |
CE |
| Structure: |
Moulded Case Circuit Breaker |
| Type: |
Circuit Breaker |
| Function: |
Circuit-Breaker Failure Protection |
Product Description
Product Description

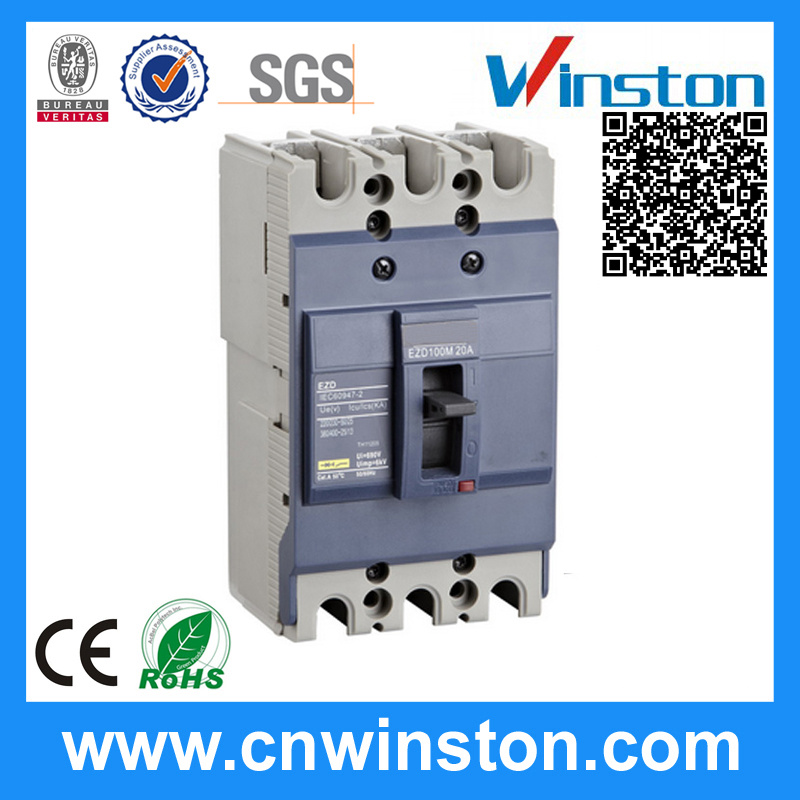

1. EZD series of Moulded Case Circuit Breaker is suitable for the circuit with AC 50/60Hz.
2. Its rated operational voltage 440V and below, rated insulation voltage 690V.
3. Rated working current up to 400A, which will be used for distributing energy and protect circuit from overload and short-circuit.
4. It complies with IEC60947-2.
Specifications
Item No. | EZD100 |
| Rated insulation voltage(V) Ui | 690V |
| Suitability for isolation | YES |
Type |
Moulded Case |
| Rated impulse withstand voltage(kV) Uimp | 6KV |
| Rated current(A) | 16,20,25,32,40,50,63,80,100 |
| Number of poles | 1P, 2P, 3P, 4P |
| Rated operational voltage(V) Ue | AC50/60Hz,440V |
| Control | Manual |
| Installation | Fixed |
| Release type | Thermal Magnetic |
|
| Packing: | Size of carton(cm): |
| 40 pcs per carton for 2P | 58.5 X 29 X 20 for 2P |
| 30 pcs per carton for 3P | 43 X 30 X 30.5 for 3P |
| 20 pcs per carton for 4P | 48.5 X 29.5 X 23 for 4P |
| Dimensions(mm) |
| G.W of carton(KGS): | 60X130X25 for 1P |
| 23 KGS for 2P | 60X130X50 for 2P |
| 24 KGS for 3P | 60X130X75 for 3P |
| 21 KGS for 4P | 60X130X100 for 4P |
Item No. | EZD 250 |
| Brand | Winston |
| Rated current | 250A |
| Uimp | 6KV |
| Release type | Thermal Magnetic |
Accessories |
AUX, SHT, etc. |
| Number of poles | 3P |
| Ue | AC50/60Hz, 440V |
| Dimension(mm) | 165 x 105 x 85.5 |
| Installation | Fixed |
| Packing | 20 pcs/carton |
| Type | Moulded Case |
| Ui | 690V |
| Control | manual |
| Service | OEM is available |
| Ui | 690V |
| Control | manual |
| Breaking Capacity Level | F H |
| Service | OEM is available |
