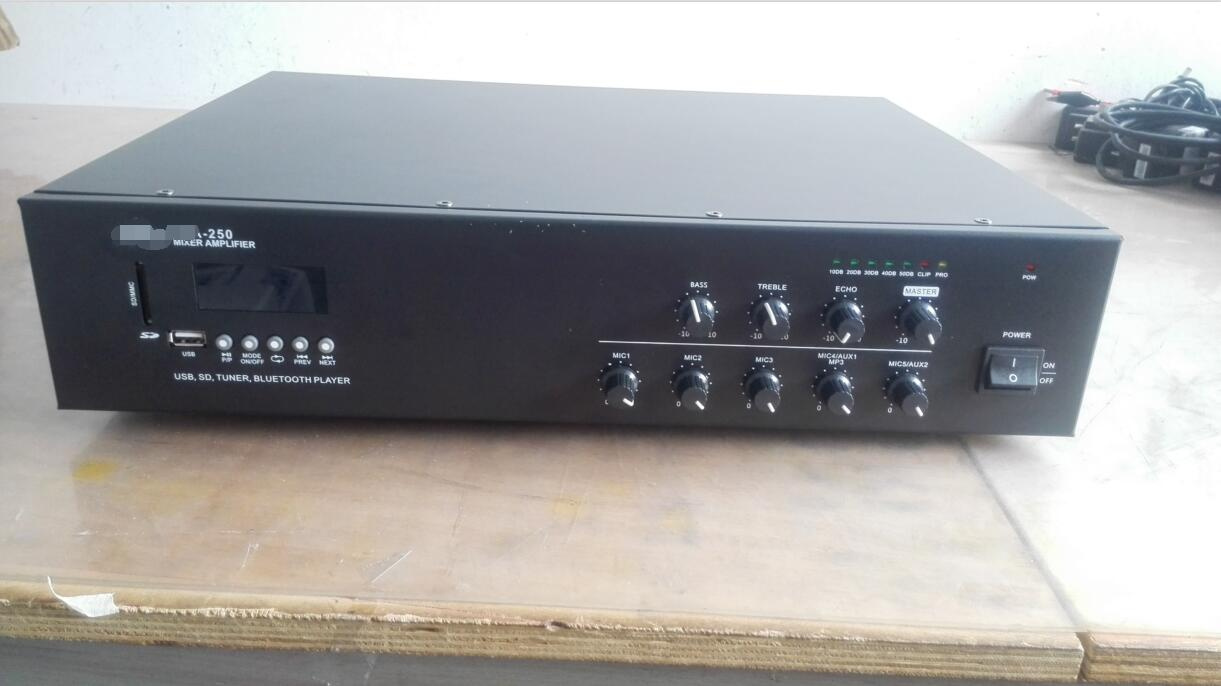

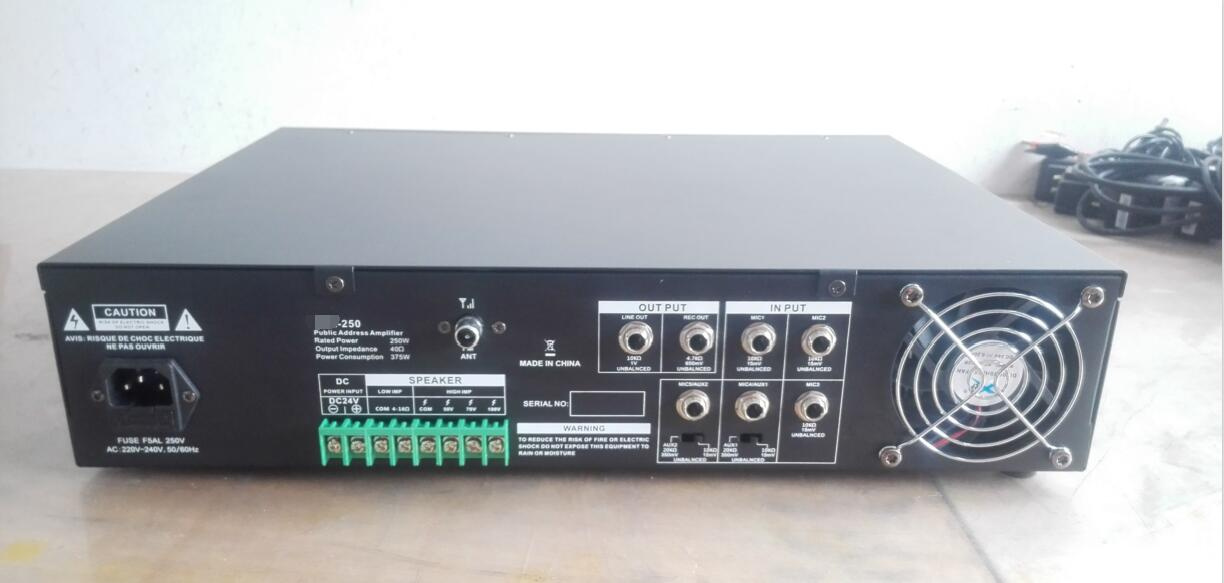

F-250 Series PA Mixer Amplifier with USB, SD, FM, Bluetooth
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
F-80, F-120, F-160, F-250 |
| Type: |
Professional Amplifier |
| Usage: |
Public Address System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Mixer Amplifier |
| Output Number: |
1 |
| Voltage: |
AC 220V |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
AB |
| Sound Channel: |
Mono |
Product Description
Mixier Amplifier with USB,SD,FM ,Bluetooth F-80,F-120,F-160,F-250| FEATURES: |

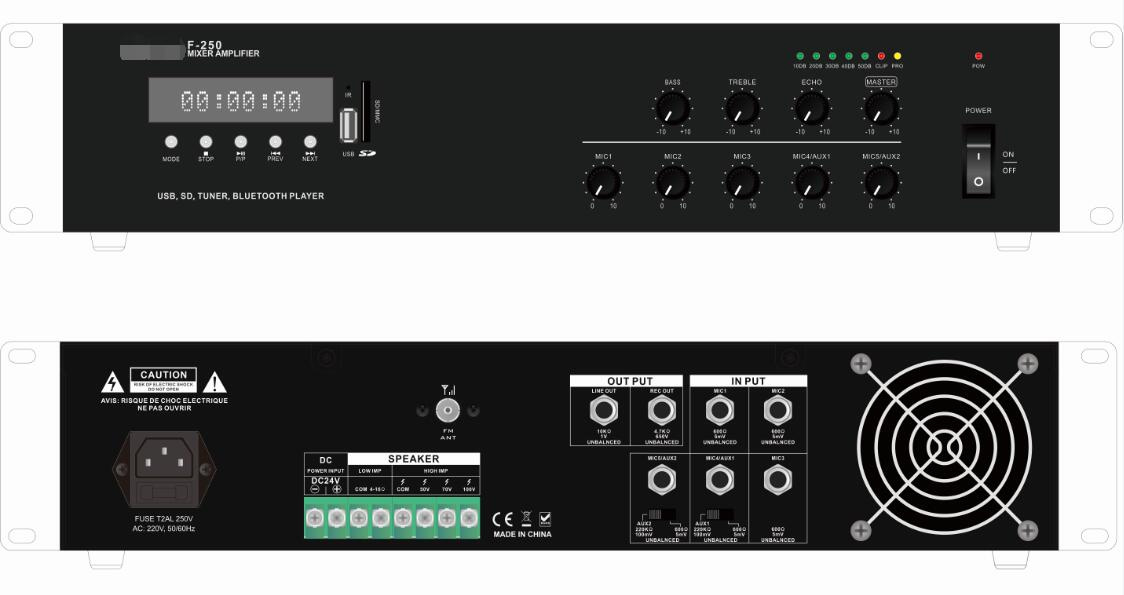

Standard chassis design, 2U Iron black panel,with USB,SD,FM ,Bluetooth,Echo functions, 1 zone,DC24V
7 input, including 2 AUX, 5 MIC.
1 power output, can be connected to audio input of the next amplifier.
1 REC output
Two-band parametric equalizer adjustment knob for adjusting the bass and treble to improve sound quality.
MIC1 with the highest priority, automatically silence when signal input.
Junction FET priority conversion, ensure that without distortion in the process of mute.
Professional noise gate control output signal , ensure that the squelch of background music.
Output:70V,100V,4-16Ω.
Line safe work area protection, to ensure that output load work safely in short circuit, overload and any other harsh environment.
Peak negative feedback protection, its a severe safety test for terminal speakers and mixer amplifier when signal distortion, shock, or a serious line voltage overvoltage, peak negative feedback can effectively prevent signal and line voltage not distortion and overpressure in any load environment.
Integrated cross-tone compensation circuit, correct HF loss which caused by transformer between lines, so that the line voltage signal on the spectrum curve straight, beautiful tone.
High frequency octave cut circuit to ensure the safe operation of the boost system, the use of low-cut with sound compensation technology, remove ULF which is hidden danger of the boost system in the case of without losing sound quality. |
| TECHNICAL PARAMETERS: |
| Model: | F-80 | F-120 | F-160 | F-250 |
| Rated power: | 80W | 120W | 160W | 250W |
| Output: | 70V,100V,4-16Ω |
| Input Sensitivity / Impedance: | MIC 1,2,3,4,5:5mV/600Ω, unbalanced TS terminal; AUX1, 2,:350mV/10KΩ, unbalanced RCA input |
| Output sensitivity / impedance: | 1000mV / 470Ω, unbalanced TS terminal |
| Overload source EMF: | MIC 1,2,3,4,5:> 12dB, unbalanced TRS terminal input;AUX 1, 2:> 20dB, unbalanced RCA input |
| Tone (Bass): | ±10dB at 100Hz |
| Tone (Treble): | ±10dB at 10KHz |
| Frequency response: | 50-16KHz(+1dB, -3dB) |
| S/N rated: | MIC 1, 2, 3,4,5:66dB; AUX 1, 2: 80dB |
| THD: | 0.5% @ 1KHz, 1/3 of the output power |
| Mute function: | MIC 1 prior to other channels |
| Channel crosstalk attenuation: | ≤50dB |
| Cooling: | forced air from the front to back, built-in fan starts when radiator temperature reached 45 degrees |
| Protection: | overheat, overload & short circuit |
| Power supply: | AC 220V/50Hz |
| Max. power dissipation: | 120W | 200W | 240W | 360W |
| Size(W×H×D): | 484×88×360mm | 484×88×360mm | 484×88×360mm | 484×88×360mm |
| Weight: | 6Kg | 8Kg | 12Kg | 14Kg |
| Material: | Black Iron panel, SPCC cold-rolled plate chassis |
Syeeke F-250 Series Mixer Amplifier will provide you:
1.Fantastic nice sound quality
2.Workable price
3.3 years warranty
Syeeke audio amplifier provide following protection:1. Soft start protection
2. Short circuit protection
3. DC protection
4. Limiting protection
5. Overheat protection
6. Input overload protection
7. Output overload protection
8. Output fading production

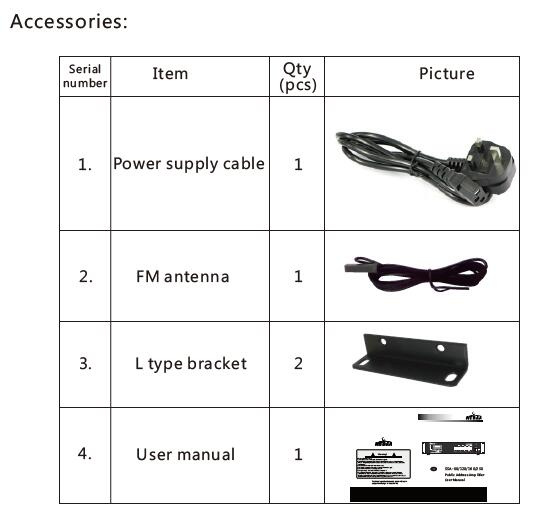

Package
1.One power amplifier fill in one carton case.
2.Rack case, based on your quantity requirements.
Shipping
1. Sample order for shipping via DHL/FEDEX/UPS/TNT/EMS.
2. Large order for shipping by sea or air.
3. Sending to customise forwarder warehouse.
More details please visit our website:
www.syeeke.com
NOTICE:
Pusheng Audio will display speakers and amplifiers at Guangzhou Prolight&Sound Exhibition.
Date: 10-13rd May, 2018.
Address: Area A, China Import&Export Fair Complex,Guangzhou
Booth No.:
Foshan Nanhai Pusheng Audio Equipment Factory is the leading IP public address system, Class-D Amplifier, IP network audio system, IP speaker & IP amplifier and conference system manufacturer in Foshan China, we have one around 2, 500 SQ meters factory and more than 100 employees. Our factory is well quality-oriented ensure to make sure the best raw material and 6 steps of on site QC and QA strict quality control. The quality control system is strictly followed by ISO9001 and ISO14001.
We commit 3 years quality warranty to our customer. Most of products are compliant with CE, RoHS, CCC, CB, EN54-16, C-tick, FCC or UL, and EN54-24 fireproof certificate.
We response our customer inquiry within 4 hours and we design sound system for our customer within 24 hours and we solve quality compliant within 48 hours with spare parts of new replacement.
We working with more than 24 worldwide distributors, we support original high qualified products, professional before sales and after sales service, we provide full range of company presentation, product technical documents and versatile system design templates to ensure end-customer easy understand the benefits our systems bring to them.
We customized different specification and different look amplifier and loudspeakers under customer brand name. We cherish the partnership by 100% respect customer brand name and intellectual property.
Our Motto: Surpass customer expectation is our mission.
