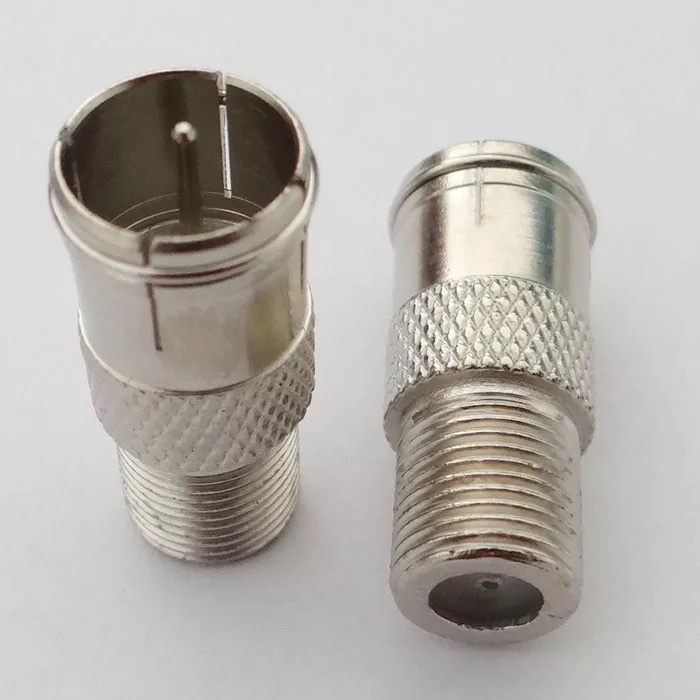

F Connector with Quick Insert Test Head

Name: F Connector with Quick Insert Test Head
Brand: all-electronics-online.com
SKU: 835643445
Availability: InStock
Rating: 4.5 (130 reviews)

Price:	US $ 0.05-0.06/Piece
Min Order:	10000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description

Product Description
F Connector:
1. Connector was Manfactured of high quality brass with nickel plating of superior protection against V-corrosion
2. Connector wasDesigned to be watertight for outdoor applications
3. Connector was Offer excellent RFI shielding properties
4. Connector was Easy-grip free-spinning nut for fast installation and installer comfort
5. Connector was Universal for standand. Tri-shield or quad-shield RG6, RG59 coaxial cable

Company Description
Quality boutique coaxial connector, F connector, CATV connector manufacturers: Jiangsu Yuandong Electronic Technology Co., Ltd...
Located in the scenic China Yangzhou, in good faith, high-quality, pioneering, excellent price cooperation with customers around the world, reputation for customer satisfaction.
Jiangsu Yuandong Electronic Technology Co., Ltd. Willing and the users around the world to work together to create a win-win and brilliant.
ADD: Lidian Village, Yangzhou, Jiangsu, China
Website: http://liaidong.en.made-in-china.com/
Tel: 86 -13, 912, 125, 469
Fax: 0514 -87, 551, 698
Contact: Li Aidong

o.	Test parameters		Unit	Specifications	Test Resuits
					1#	2#	3#
1	Frequency Range		MHz	5~1000	5~1000	5~1000	5~1000
2	Insertion Loss		dB	≤0.08(0.05) (5~300MHz)	0.044	0.043	0.052
				≤0.08(0.05)(300~1000MHz)	0.08	0.09	0.11
3	Return Loss		dB	≥2N2(28) (5~300MHz)	35.3	34.8	34.5
				≥20(26) (300~1000MHz)	30.9	30.0	32.6
4	Screening attenuation		dB	≥90(100)	93.5	92.5	92.5
5	Contact resistance		MΩ	≤10(Inner conductor)	--	--	--
				≤5(Outer conductor)	4.7	4.6	4.5
6	Insulation Resistance		MΩ	≥1000 (DC voltage 500V)
7	Pressure		--	1 minute without breakdown (AC Voltage 1500V)	No breakdown	No breakdown	No breakdown
8	Soaking		--	Waterproof(Soaking,24h)	--	--	--
9	Damp	Pressure	V	≥800(40Celsius±2Celsius,93%±3%,24h)	Greater than800	Greater than800	Greater than800
		Insulation Resistance	MΩ	≥250(40Celsius±2Celsius,93%±3%,24h)	49000	49000	48000
10	High Temperature Insulation Resistance		MΩ	≥500(85Celsius±5Celsius,16h)	49000	50000	50000
11	Cryogenic insulation resistance		MΩ	≥1000(-40Celsius±5Celsius,2h)	50000	50000	49000

Jiangsu Telaisi Electronical Equipment Co., Ltd was founded in 1995 and located in Jiangsu Province. Our factory is a professional manufacturer of R&D, producing RF connectors and cable assemblies, processing various components.

The factory independently developed products commonly used specifications of SMA\SMB\SMC\BNC\L9\MCX\MMCX\TNC\FME\RCA connectors, RG59\RG6\RG11 series connector heads and all kinds of waterproof connector. The factory has a professional R&D team, combined with years of R&D experience, can address the specific customer needs and can provide customers with professional technical support.

Our factory is not only committed to continue to build and improve the product platform but also to establish Quality Management System and Environmental Management System at the same time, and provide solid backing for the factory's sustainable and stable development. The factory passed ISO9001 quality management system certification and ISO10041 environment system certification in 2008. Our products obtained from Taiwan\Japan\Vietnam\Thailand\Europe&America and the domestic customer's recognition and praise.

Since the plant, we have taken the market as the core, taken the product as the guideline, taken technology as the foundation, taken the quality as the lifeblood. For the domestic and foreign markets, we implement brand strategy and take brand development.

Our factory has a broad market prospects. Products are widely used in CATV communication digital network\aerospace industry\satellite transmission\photoelectric transmission and other types of industrial, civil and military fields.

We sincerely welcome domestic and foreign customers to come to discuss cooperation and common development.
