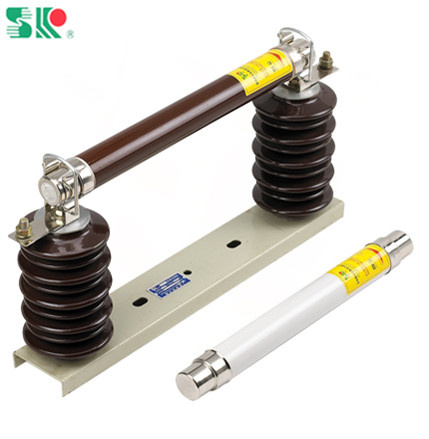

F Type Current - Limiting Fuses for Transformer Protection

Name: F Type Current - Limiting Fuses for Transformer Protection
Brand: all-electronics-online.com
SKU: 738035655
Availability: InStock
Rating: 4.3 (135 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	F Type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Current Fuse
Breaking Capacity:	High
Usaga:	High Voltage

Product Description

*Quick Details

Model Name :H.V HRC Current - Limiting Fuses Type F For Transformer Protection

Model Number : F Type Safety Standard : IEC

Breaking Capacity : High Export Markets : Global

Rated Current : 100A Origin : China

Rated Voltage : 12- 24 kV

*Product Description

*Applicaton

H.V HRC current - limiting fuse type F for transformer protection is mainly used in AC 50Hz, rated voltage up to 24KV, rated current 160A circuit for pritection transfomers and power equipment from overload and short - circuit.
It conforms to IEC282 - 1,BS,DIN and GB15166.2.

*Design Features

F type H.V HRC current - limting fuses has two installation: Bus - bar installation and inster installation, it is small in volume, reliable inconnection and convenient in install and removal. The striker paarallels to the fuse element made from pure silver.They are sealed in the fuse tube filled with chemically treated high - purity quartz sand. The fuse tube is made from heat resistant,high ceramic or epoxyglass. When fault citcuit happens, the fuse link melts, the high - resistant metal wire paralleling to fuse link melts immediately at the appearance of the arc, and the striker jumps out to push the chained equipment contact, signaling the melting or qutomatically cutting the circuit. The striker has spring type and power type. Spring type strikers use the energy released by spring to oush the striker, powder type strikers use high pressure caused by the lighting powder to opush the striker. F type fuse can reliable breank the fault circuit which causes the fuse link to melt and which is up to the rated breaking current, it is not only featured with high breaking capacity of the current - limiting fuses, but also with protaction of low overload of the un - current - limiting fuse. F type fuse had a protection of full scope breaking capacity.

*Packaging & Delivery

Packaging Detail : According to customer's requirement

Delivery Detail : According to the order

We provide you with sincerely service, if you interest ,contact us now !!!

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
