F2000 A2000 711 Series Freezer Cooler Showcase Thermostat

Name: F2000 A2000 711 Series Freezer Cooler Showcase Thermostat
Brand: all-electronics-online.com
SKU: 839348905
Availability: InStock
Rating: 4.9 (65 reviews)

Price:	US $ 1/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	F2000 A2000 711
Capilary:	800mm-2700mm
Series:	K,007b,T,A2000,F2000
Warm On:	-2 C
Warm Off:	-11 C
Cold On:	-9.7 C
Cold Off:	-21
Voltage:	250V

Product Description

Cheap F2000 Universal Refrigerator Thermostat

-35 - +35 degree Celsius

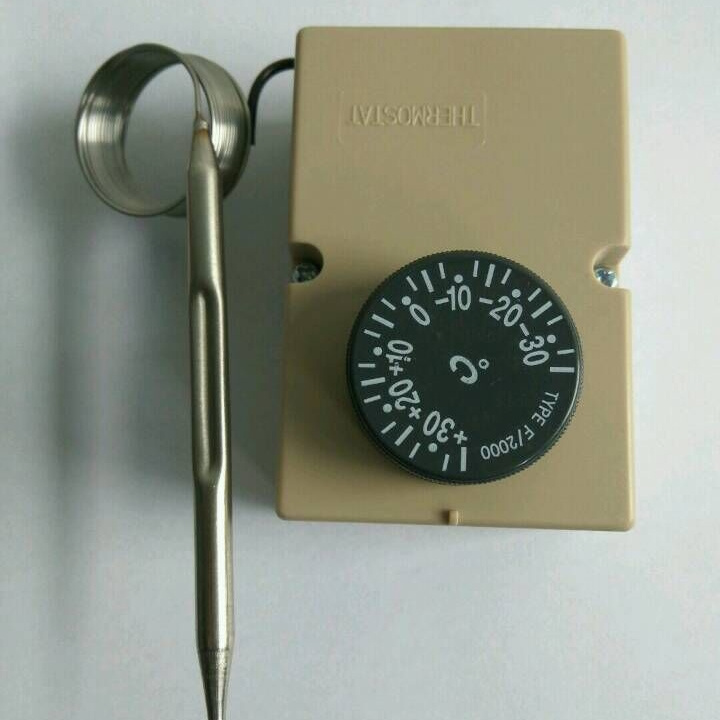

Model F2000 is a great universal Refrigerator Thermostat/Freezer Thermostat controlling temperature from -35 up to +35 degree Celsius. Supplied housed inside a plastic kit. The dimensions of the kit are approx.58mm wide x 86mm high x 35mm deep. Rated at 16(3) amps-250 volts. Inside the kit, the Refrigerator Thermostat has three poles (SPDT) to accept contact types of connectors common/normally open/normally closed. The complete refrigerator thermostat can bewall mounted or fitted inside a control panel. It's widely suitable for domestic or commercial refrigerator or freezer.

Temperature Range of F2000 refrigerator thermostat	-35°C~+35°C 0°C~40°C(optional)
Temperature Differential	1~3°C
Length of Capillary	Standard:1500mm Nonstandard:300mm~3000mm optional
Material of Capillary	Stainless Steel or Copper optional
Diameter of Sensing Bulb	Standard:6mm
Electric Rating	C-1: 16A 250VAC C-2: 3A 250VAC
Wiring Diagram	Single Pole Double Throw (SPDT)
Min. Capillary Bend Radius	5mm
Temperature's Rate of Change	1°C/min

Features

UL, CE, CQC, RoHS, and ISO compliant
Available in a wide selection of preset temperature range and differential
Excellent dial adjustable design
Snap-Action electric switch
Little interference of radio
Long life usage
This Refrigerator Thermostat is ideal for refrigerators and freezers as well.

Approved by CE, RoHS certificates

· ISO 9001 compliant

· Highly competitive price offered

· Flexible payment and delivery term
