| Prod Model: |
F21-14S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
F21-14s Radio Remote Control |
| Control Distance: |
up to 100m |
| Control Point: |
14 |
| Unique Code: |
Over 4.3billon Unique ID Codes |
| Temperature: |
-35°c___+80°c |
| Enclosure Protection Class: |
IP65 |
| Receiver Power: |
AC 380V/ 36V/220V or DC12V/24V |
| Transmitter Power: |
DC3V |
| Output Capacity: |
5 Amperes |
| Certificate: |
CE, FCC, ISO9001:2008 |
| Application: |
Cranes, Hoists, Heavy Trucks, Excavator, Trailer, |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Material: |
Plastic |
| Battery Type: |
AA Battery |
| Voltage: |
AC 380V/ 36V/220V or DC12V/24V |
Product Description
F21-14S radio remote control/industrial remote control/Crane remote controllerSummary:1.More than 10 years researching and exporting experience in Radio Remote Control industry2.More than 20 people R&D working team, have the ability to research and develop new product independently.
3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable
7. One year warranty.
Application:
Widely applied for lifting equipment, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipment and sites
which can be worked by radio controls.
Specifications:
Product name | wireless remote controlled electrical switch |
Application | Overhead cranes, hoist ,chain hoist, other industrial machine |
Frequency | 310.0325~331.165Mhz |
Frequency generation: | Crystal (plug in) |
Channel | 80 |
Channel Spacing | 0.2675MHz |
Control motions | 14 |
Control distance | Up to 100m |
Certificates | CE, FCC, ISO |
Number of push button | 14 single speed push button |
Unique code | Over 4.3billon unique ID codes . |
Working temperature | -35°C ~ +80°C |
Enclosure protection class | IP65 |
Transmitter power | AA-size batteries |
Receiver power | AC 380v/220V/110v/48v/ 36v/24v/12v or DC12V |
Output capacity | Full sealed relay output with 5 amperes |
Model | can be set normal,toggle,interlock or non-interlock |
Material | glass fiber |
One transmitter;
One receiver;
One 1m cable connect with receiver;
One operation and maintain manual.
Notes:
The LED on the front of the transmitter indicates the condition of the batteries. It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low.
If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries.

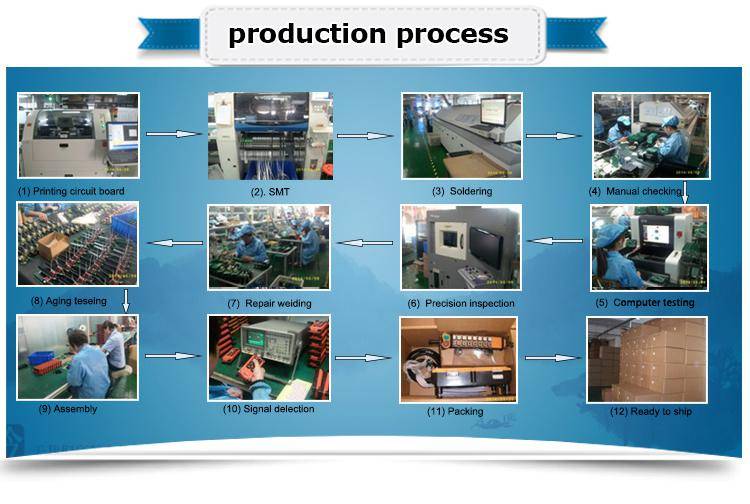

Production Process:
Certificates:
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
